450-550-650-750 ET SILENT COMPRESSOR (Three-phasic)

450-550-650-750 ET SILENT COMPRESSOR (Three-phasic)

€17,043.89
-10%

  • Save 10%

450-550-650-750 ET SILENT COMPRESSOR (Three-phasic)

Consult with an expert
Delivery:
Producto fuera de stock. Consultar en los próximos: días de entrega

Data sheet

STATIC
ELECTRIC

Specific References


Description:

Silent reaches new heights in terms of soundproofing, allowing you to drop below the threshold of 70 dB in operation. Built to meet the needs of intensive use and when large refill capacities are required, it is equipped with 4 front filling connections with high pressure hoses and an intuitive control panel. It is also equipped with an electric motor and powerful pumping units. For longer filter life, the Tornado high pressure dryer is recommended. Available as optional: the Presec system for filter saturation control or the SAM system for multigas analysis and remote charging panel.

Purification at the highest level: Placed after the last compressor separator and before the pressure holding valve, the Hyperfilter purification system enables reliable treatment of the breathing air according to DIN EN 12021¹ when using original filter cartridges. The separator present between the 2nd and 3rd stage of the purification circuit allows to extract the greatest possible humidity. The filtering capacity with inlet air at 20 ° C and 200 bar is 4300 m³.

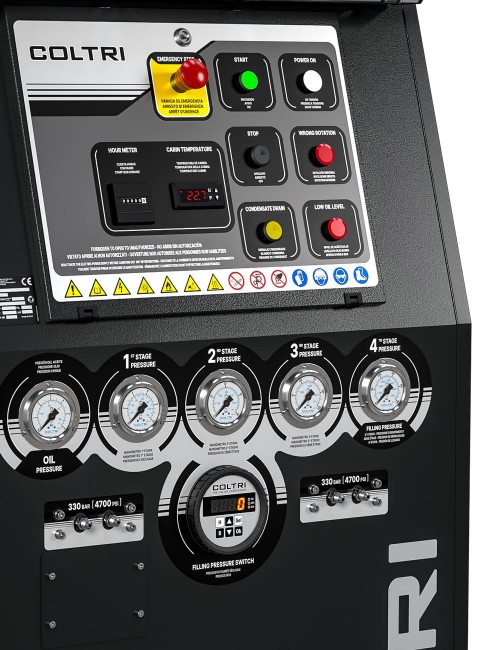

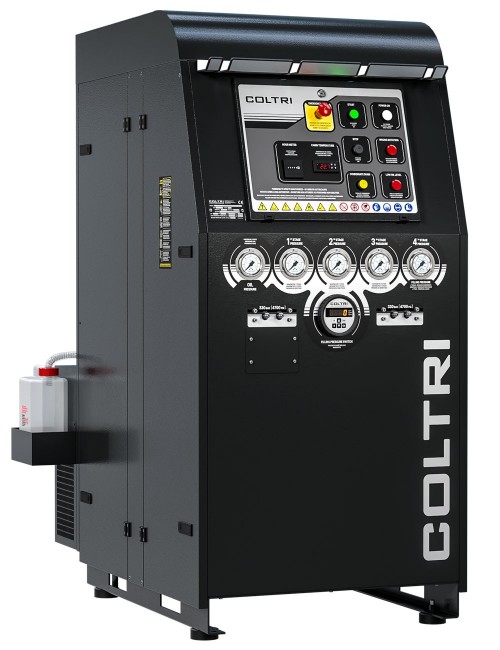

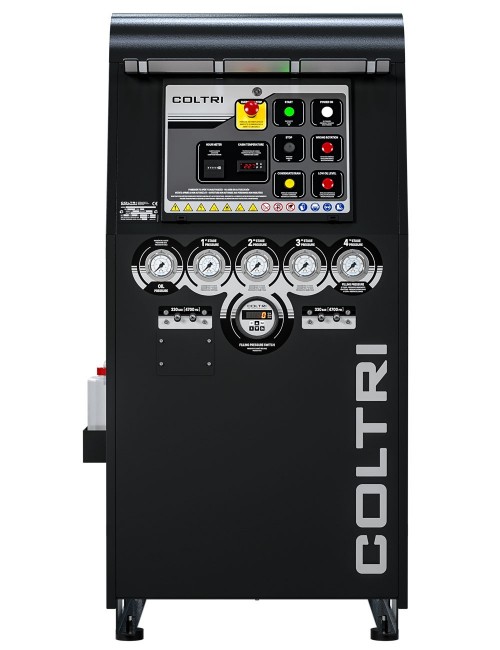

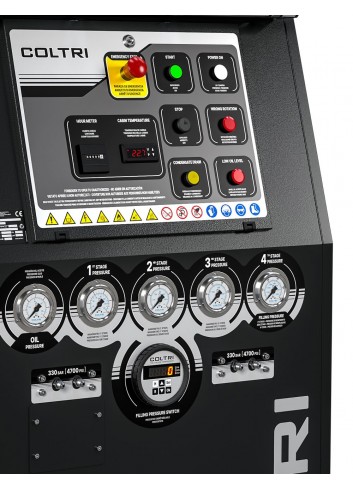

Chassis: Silenced chassis with vertical development, made for environments that require a low level of noise. The oil level and drain reported outside, the control console equipped with inter-stage pressure gauges, the oil pressure gauge, the internal temperature indicator, the presence alarm and incorrect phase sequence, the lack alarm oil and the start, stop and manual condensate drain commands allow easy management and maintenance of the compressor.

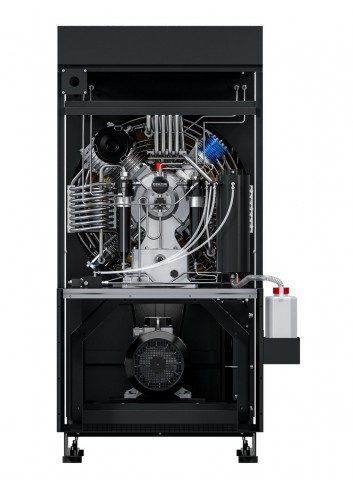

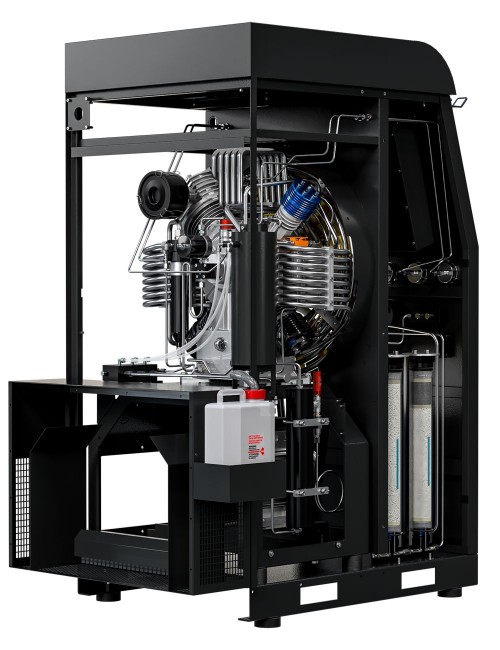

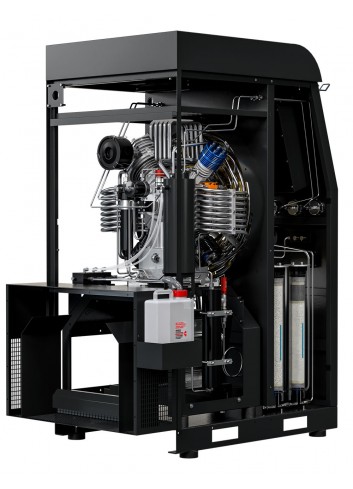

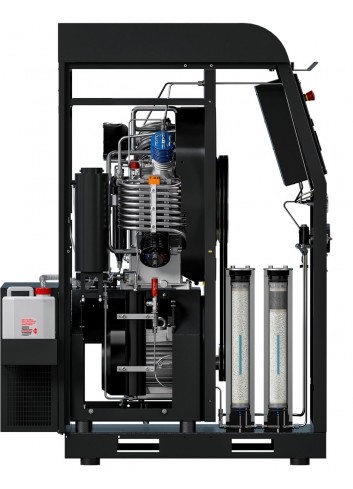

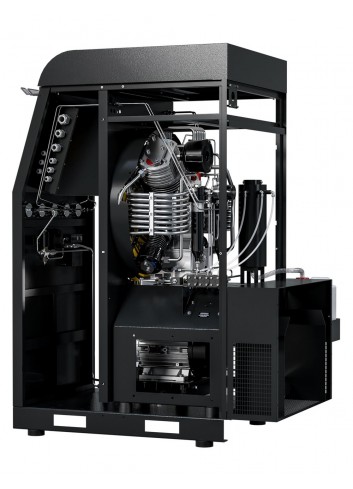

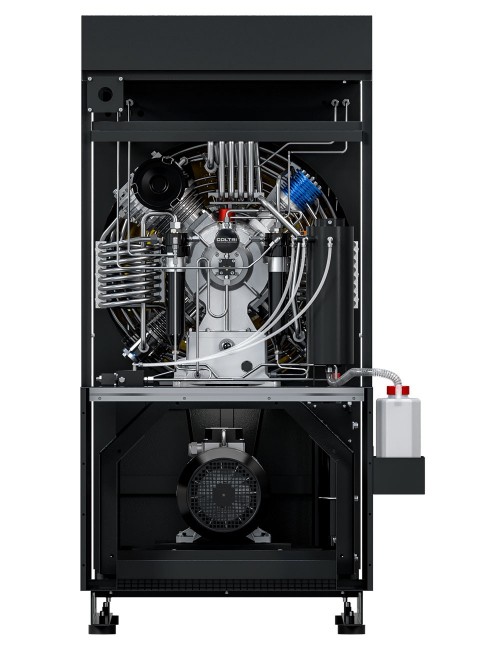

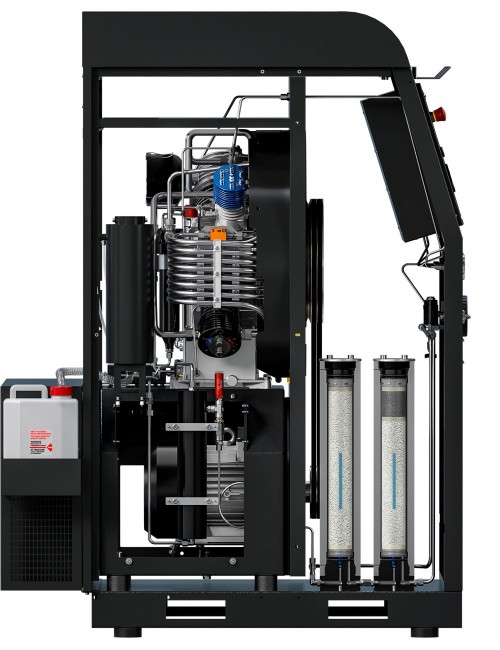

4-STAGE HIGH PRESSURE PUMPING UNIT

  • Monobloc in aluminum,
  • Gooseneck in forged steel
  • forced lubrication on the 4th stage cylinder by gear pump
  • Oil filtration
  • Aluminum connecting rods
  • Main roller bearings
  • Roller connecting rod bearings
  • 1st, 2nd and 3rd stage cylinders in special cast iron
  • 4th stage cylinder in special treated steel.
  • Stainless steel intake and exhaust valves
  • Interstage cooling pipes in stainless steel
  • Separator after the 2nd, 3rd and 4th stage
  • Safety valves after each stage
  • Oil level sensor
  • Prepared for Hyperfilter filter system

ELECTRICAL CABINET

  • ON / OFF switch with motor protection switch.
  • Digital electronic pressure switch that stops the compressor at the final pressure.
  • Drainage of all separators between the individual stages and also of the final separator during compressor operation
  • Timer for automatic condensate drain.
  • Integrated no-load start (automatic drain every time the unit is switched off).

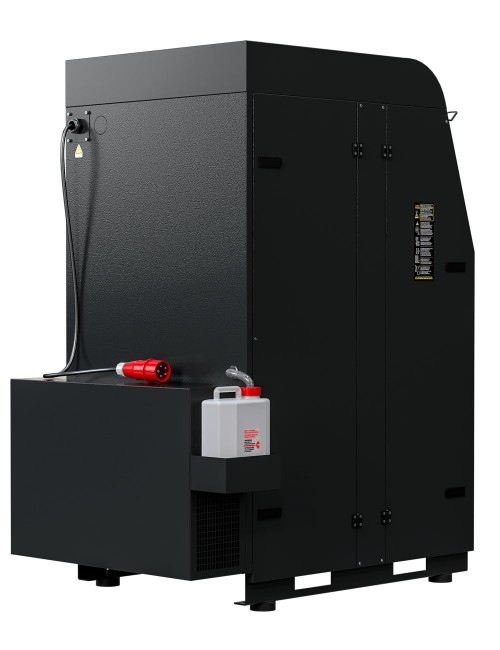

  • 5 liter condensate collection tank, with silencer; capacity of about 3 liters, for the ecological disposal of condensate.
  • Interstage pressure gauges display the working pressure for the individual compression stages. This pressure information allows you to check the tightness of the valves (inlet and outlet) of each stage and to quickly identify potential sources of failure.

STANDARD EQUIPMENT:

  • 4 filling connection to choose from DIN 232, DIN 300 or INT / YOKE 232 bar
  • 4 filling hose 1.2m long
  • Pressure maintenance valve
  • Interstage control gauges
  • Double PED certified Hyperfilter filter system
  • Cabin internal temperature with automatic switch-off
  • Automatic condensate drain
  • Automatic direction of rotation control
  • Electronic pressure switch with automatic shutdown
  • Oil level control with automatic shutdown
  • Oil pump
  • Automatic condensate drain with conveyor system in the tank
  • Frame color Blue RAL 5015

PUMPING UNIT450 ET550 ET650 ET750 ET
CHARGING RATE

450 l/min - 27 m3/h - 15,9 CFM FAD

550 l/min - 33 m3/h - 19,4 CFM FAD

650 l/min - 39 m3/h - 23 CFM FAD



750 l/min - 45 m³/h - 26,49 0 CFM FAD

DRIVEN BY THREE-PHASE ELECTRIC MOTOR  THREE-PHASE ELECTRIC MOTOR THREE-PHASE ELECTRIC MOTOR THREE-PHASE ELECTRIC MOTOR
FILLING TIME** 4,30 min 4 min 3 min 2 min 40 seg
WORKING PRESSURE 232 - 420 bar / 3300 - 6100 psi 232 - 420 bar / 3300 - 6100 psi 232 - 420 bar / 3300 - 6100 psi 232 - 420 bar / 3300 - 6100 psi
POWER 7.5 Kw (230 V - 50 Hz)
(400 V - 50 Hz) (440 V - 60 Hz)
9 Kw (200 V - 50 Hz)
11 Kw (230 V - 60 Hz) (440 V - 60 Hz)
11 Kw (400 V - 50 Hz)
15 Kw (230 V - 60 Hz) (440 V - 60 Hz)
15 Kw (230 V - 60 Hz) (440 V - 60 Hz)
DIMENSION (W x H x D) 93.5 x 130 x 173.5 cm
36.8 “x 51.3″ x 68.3 ”
93.5 x 130 x 173.5 cm
36.8 “x 51.3″ x 68.3 ”
93.5 x 130 x 173.5 cm
36.8 “x 51.3″ x 68.3 ”
93.5 x 130 x 173.5 cm
36.8 “x 51.3″ x 68.3 ”
NET WEIGHT APPROX. 446 Kg / 983 lbs 451 Kg / 994 lbs 455 Kg / 1003 lbs 463 Kg / 1020 lbs
NOISE LpA 90 dB 90 dB 90 dB 90 dB


**FILLING TIME CYLINDER 10 l-0/200 bar (measured by filling cylinder from 0 to 200 bar ±5%)
