OCEANUS PS 1st STAGE INT
BRTDRG1AOCEAINT

OCEANUS PS 1st STAGE INT

€80.00
-20%

  • Save 20%
BRTDRG1AOCEAINT

OCEANUS PS 1st STAGE INT

Consult with an expert

Producto fuera de stock. Consultar en los próximos: días de entrega

Description:

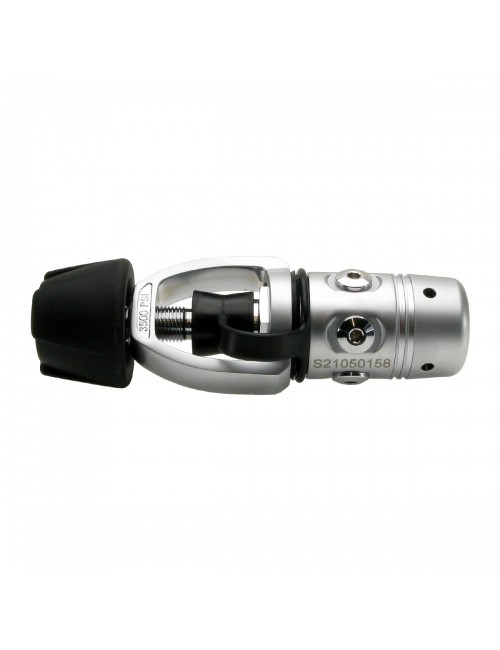

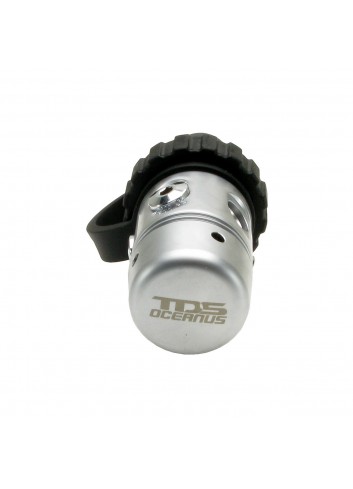

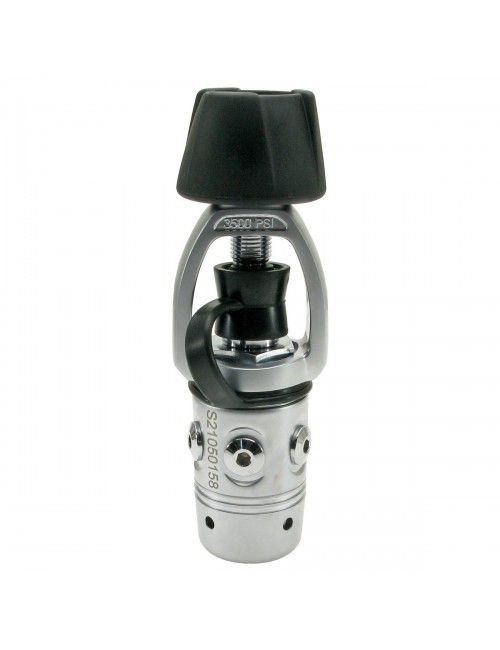

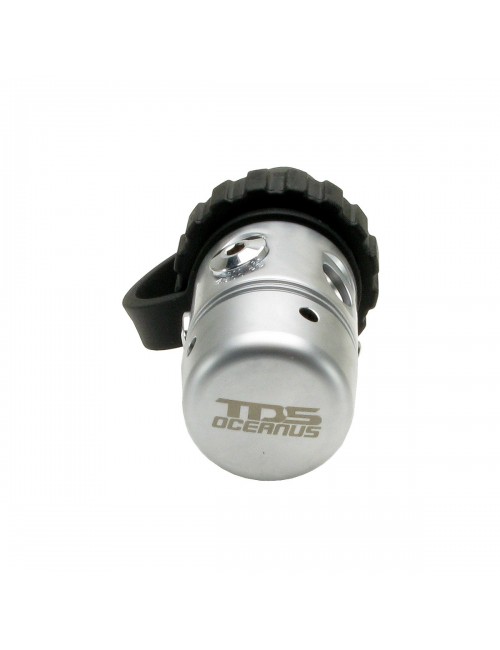

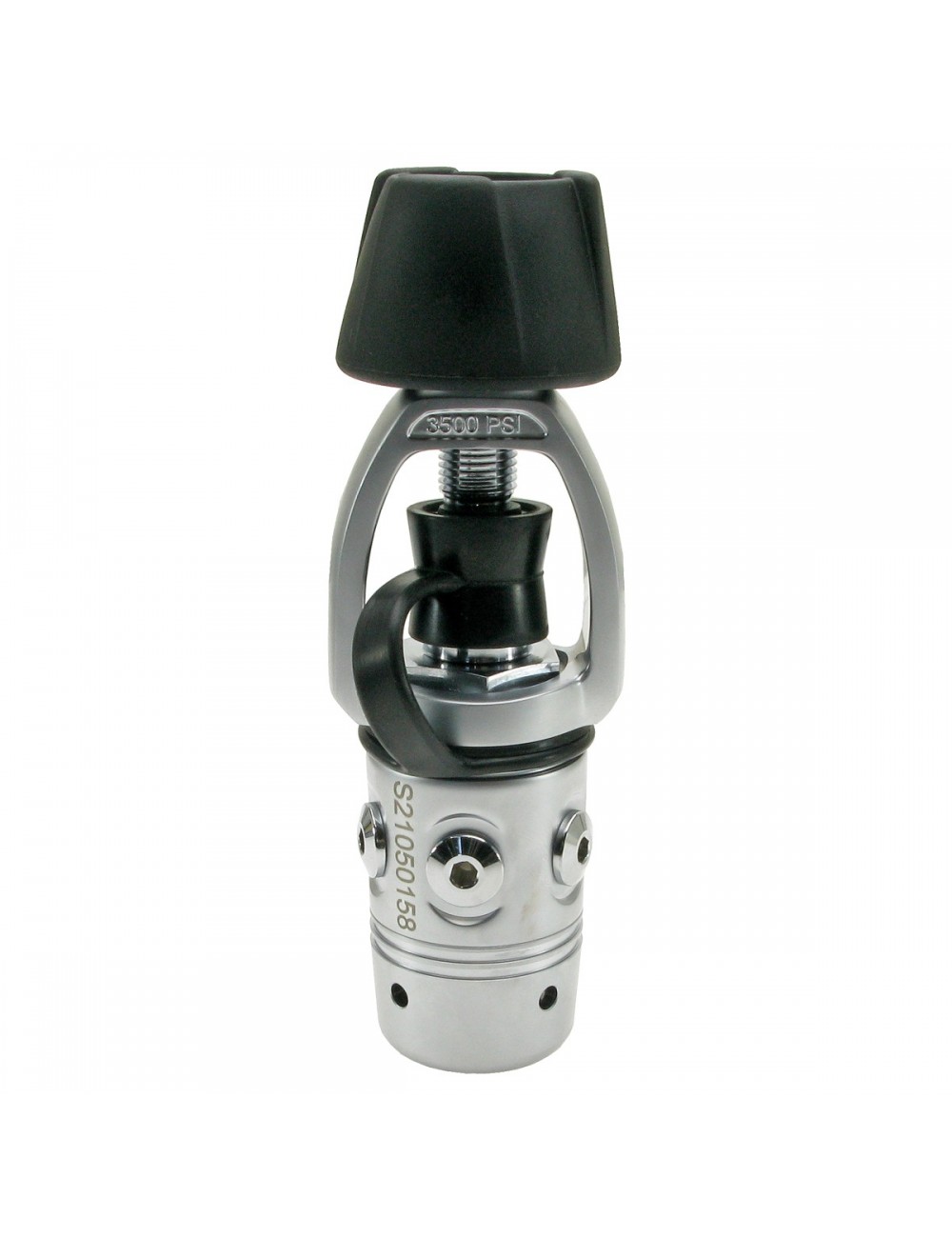

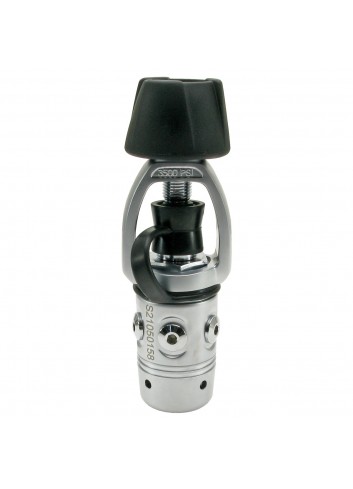

The TDS Oceanus PS first stage has 4 low pressure LP ports and one high pressure HP port, which allows a standard configuration with an additional low pressure outlet to connect a dry suit inflation hose.

The body is made of marine grade brass with a matte acid chrome plating on the body for a very attractive appearance.

First Stage:

  • Machined from marine grade brass.
  • Single piston.
  • Medium pressure 140 +/- 5 PSI (9.65 +/- .35 BAR) adjustable (on SAT)
  • 4 LP low pressure ports
  • 1 HP ports
  • DIN 300 and INT Yoke versions
  • Rubber sealing plug on both versions.

Technical Specifications:

  • Maximum Working Pressure: INT 3300 PSI / 232 Bar | DIN 4350 PSI / 300 Bar
  • Intermediate Pressure: 140 +/- 5 PSI (9.65 +/- .35 BAR)
  • Ports / Outlets: 1 HP 7/16", 4 MP 3/8"
  • ANSTI Tested Depth: 80 M
  • Certified Depth: 50 M
  • Gas: Air / Nitrox (up to 40%)
