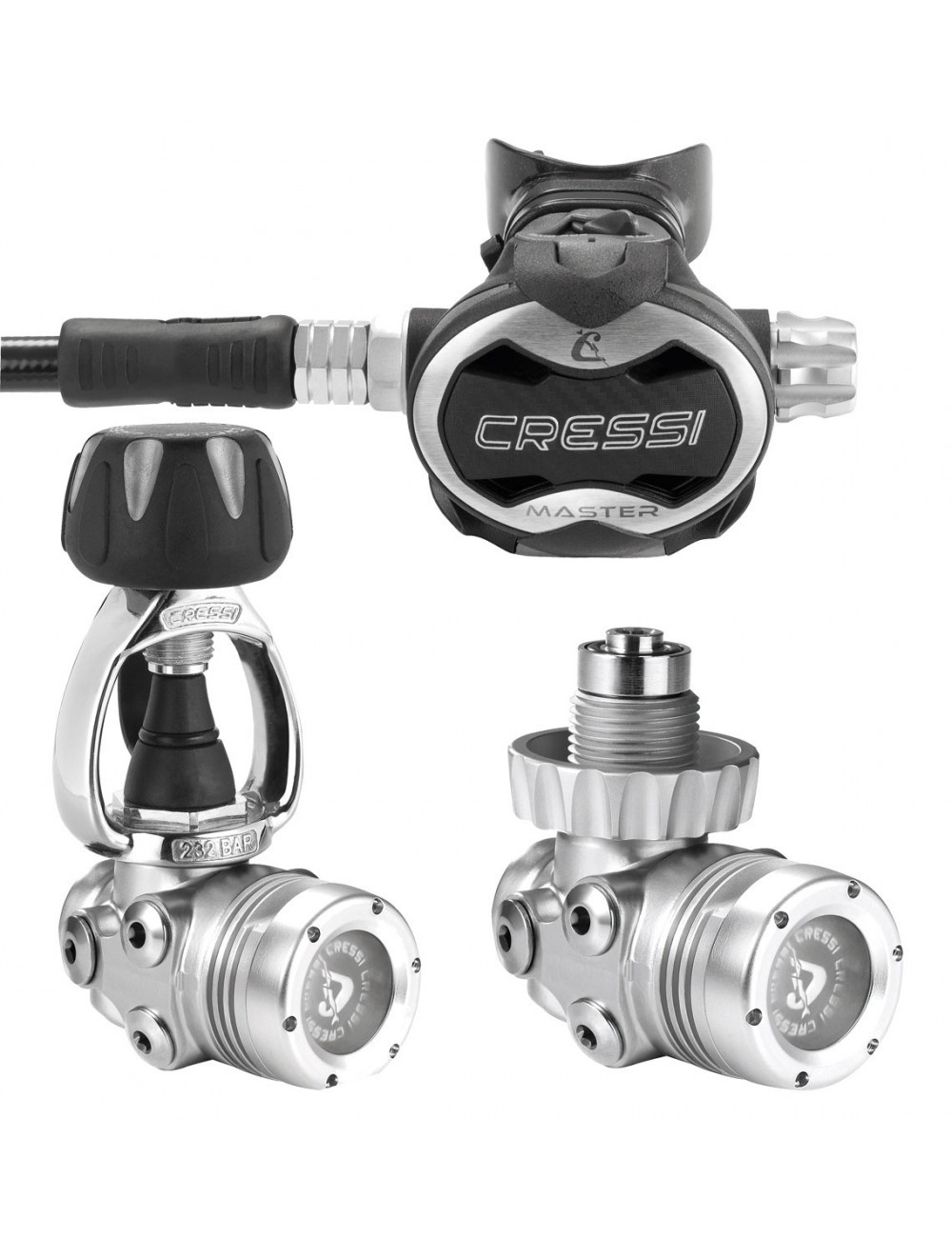

MASTER CHROME T10 SC REGULATOR
CREDHX840000

MASTER CHROME T10 SC REGULATOR

€313.22
0%

CREDHX840000

MASTER CHROME T10 SC REGULATOR

Consult with an expert
€313.22

313.22

tax excl.

CONECTION
Quantity

Producto fuera de stock. Consultar en los próximos: días de entrega

Data sheet

REGULATOR
DIAPHRAGM
BALANCED
ADJUSTABLE 2ND STAGE
COLD WATER KIT
REGULATORS

Specific References

ean13
8022983068602

- ALSO AVAILABLE IN PACK -

Description:

1st Stage:

  • Hyperbalanced diaphragm with watertight chamber
  • 2 HP 7/16 UNF ports
  • 4 MP 3/8 UNF ports
  • Operating pressure: 300 bar (4350 psi) DIN Version, 232 bar (3365 psi) international version
  • Calibration pressure: 10 bar
  • Body coated with PVD process
  • High-capacity conical filter in chemically nickel-plated spherical bronze
  • Removable nozzle in AISI 316 steel
  • Hyperbalancing system
  • Anti-pressure drop pneumatic spring
  • Stainless steel calibration spring with micropeening treatment
  • Low-friction technopolymer slider shaft
  • Body protection in polyurethane thermoplastic
  • Quantity of air supplied: 4500 l/min
  • Weight, INT version: 720 gr
  • Weight, DIN version: 602 gr

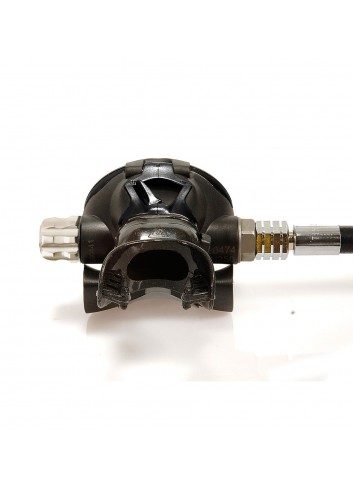

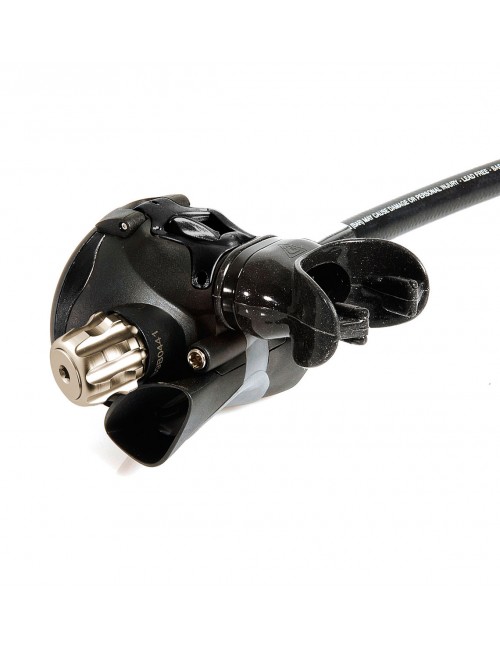

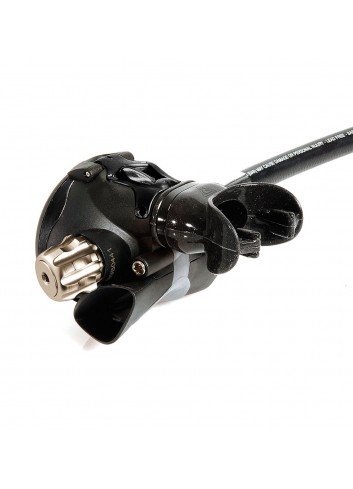

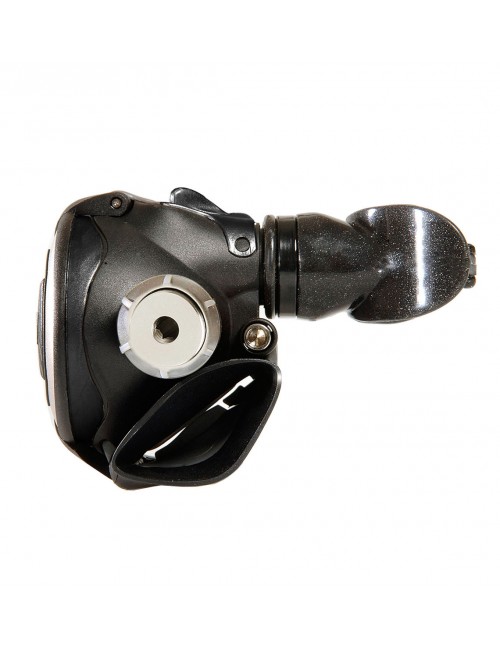

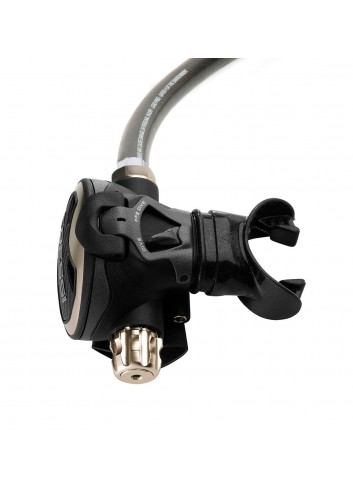

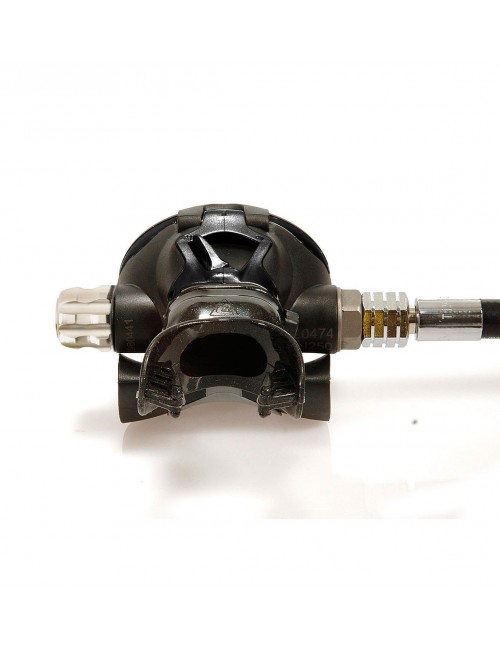

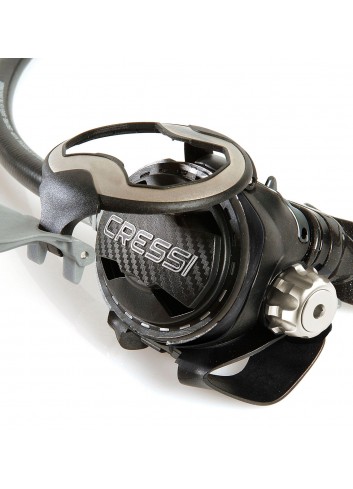

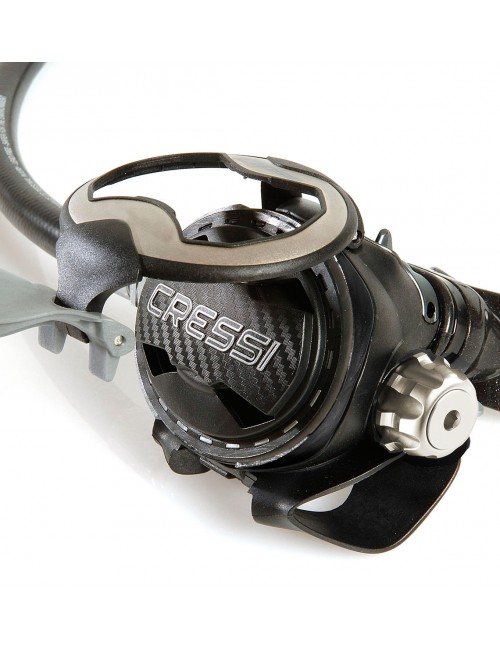

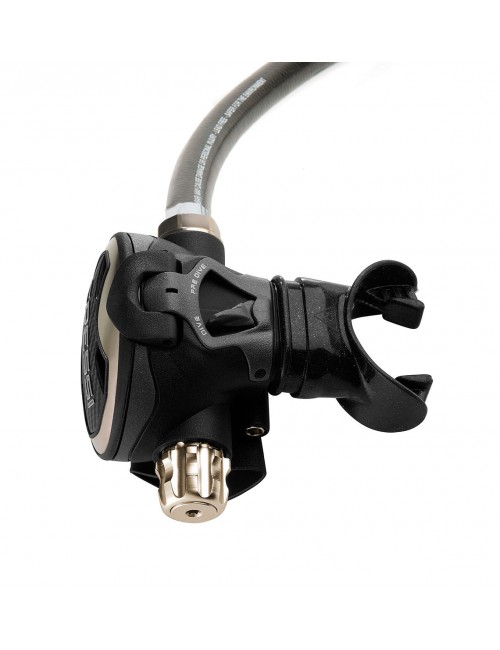

2nd Stage:

  • Pneumatically balanced
  • Adjustable Venturi
  • Adjustable inhalation effort
  • Patented elliptical diaphragm
  • Patented low-friction lever
  • Air delivery system without injector

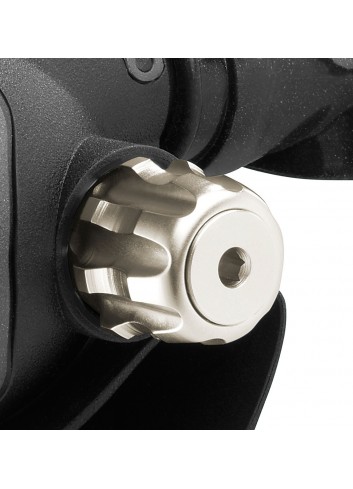

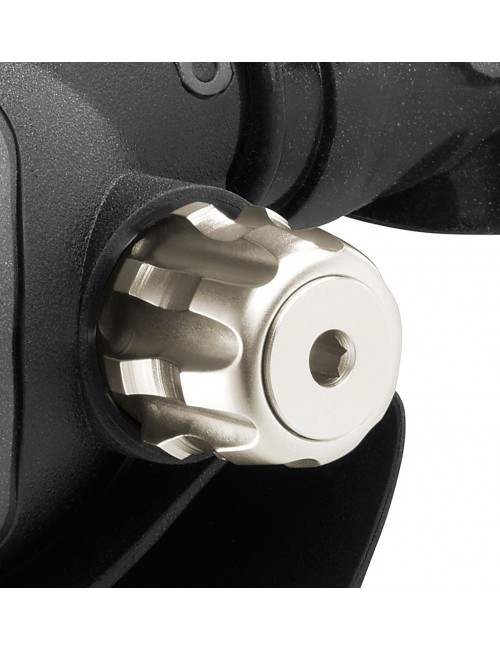

  • Adjuster knob coated with PVD process with dual OR
  • Laser-etched titanium front piece
  • Internal heat exchanger

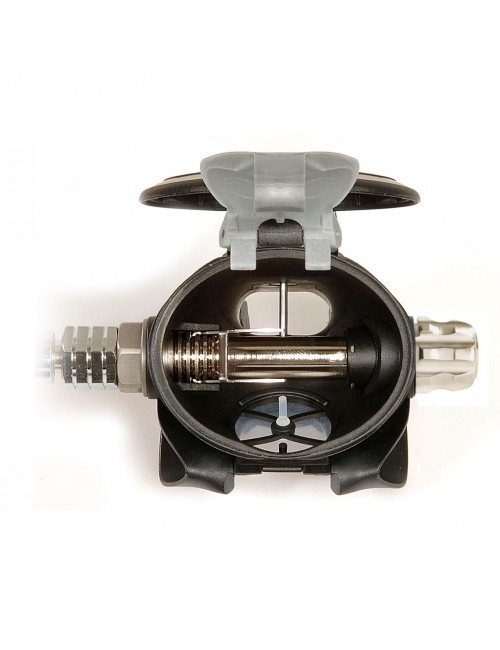

  • Cap opening with Cam-lock
  • Noise-absorbing technopolymer body
  • Removable technopolymer deflector

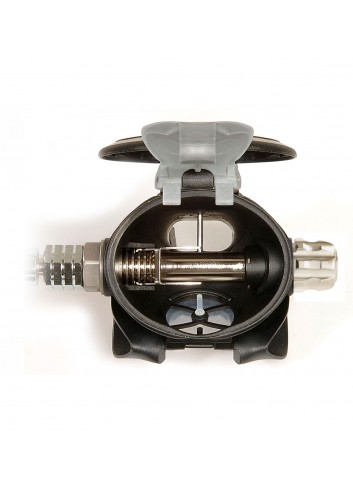

  • Removable mechanics
  • Weight without hose: 207 gr
