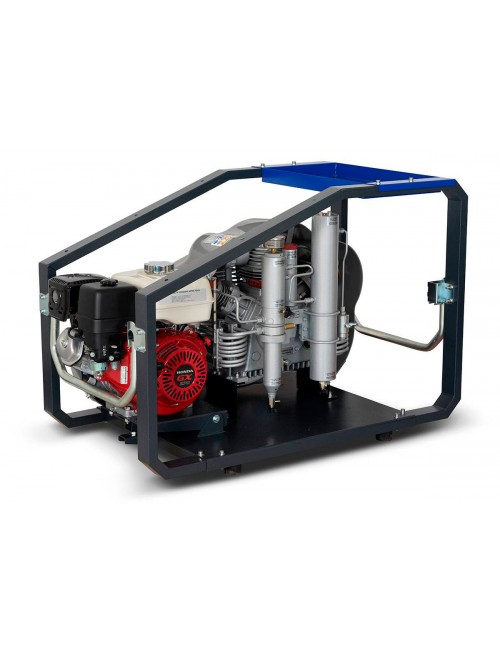

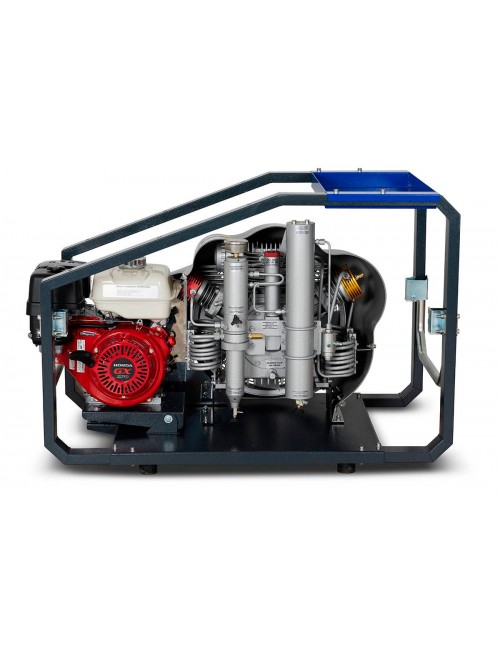

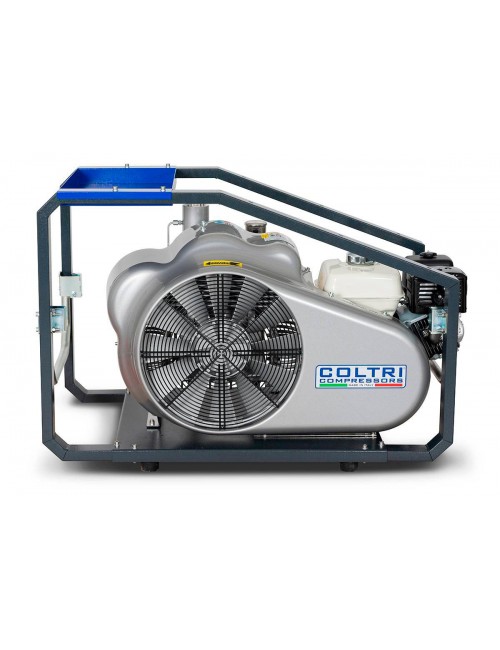

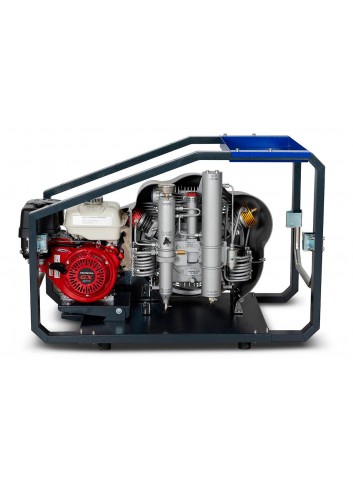

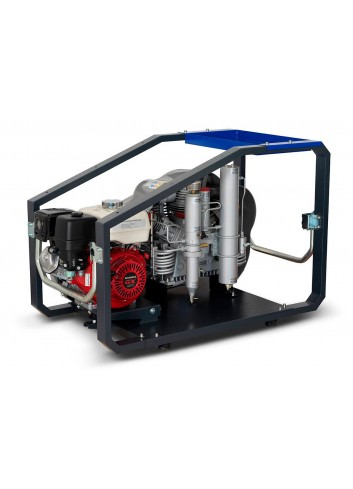

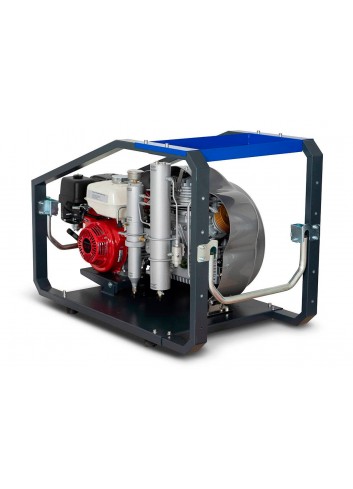

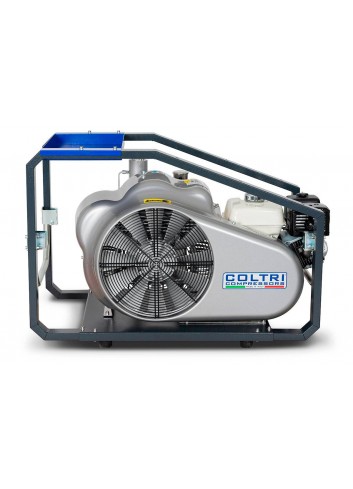

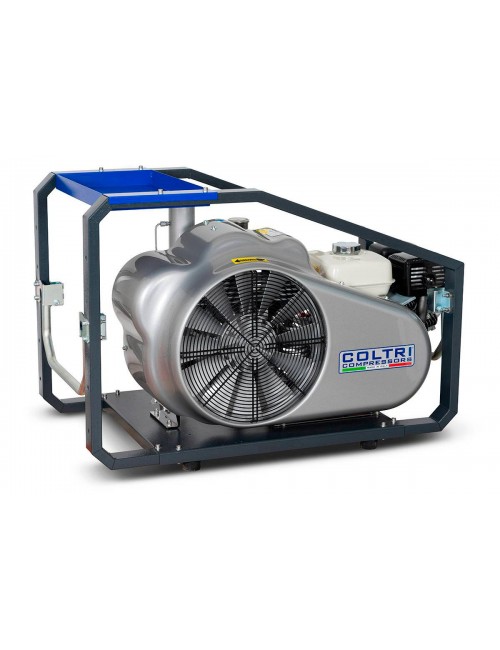

270 SH ERGO PETROL COMPRESSOR (Gasoline)

Consult with an expert

Delivery:
Producto fuera de stock. Consultar en los próximos: días de entrega

Description:

Maximum efficiency on the move.

Practical to transport, ERGO stands out for its robustness and high operating efficiency. It can be powered by Honda gasoline or Kohler diesel engines. Equipped with a complete control panel with inter-stage pressure gauges, automatic stop with adjustable pressure switch, automatic condensate discharge and direction of rotation control.

Simplicity comes as standard: Imagine having a compressor capable of great performance and with extraordinary robustness. What would all this be without absolute simplicity to manage it? We believe that's what innovation is for: to make everything easier.

Maximum air quality is the goal of a Coltri compressor: air purity and air quality are two indispensable characteristics of our compressors. The air you breathe from Coltri compressors complies with EN 12021:2014: so that with them you can work, have fun and practice in absolute safety.

Standard equipment

  • 2 cylinder connections to choose between DIN 232, DIN 300 or INT/YOKE 232 bar
  • 2 hoses, 1.2 m long
  • Pressure maintenance valve
  • Maxifilter filter system
  • Oil level monitoring with automatic shut-off
  • Frame color Blue RAL 5002
  • 3-stage high-pressure pumping unit.

Aluminum monoblock,

  • Forged steel swan neck
  • Splash lubrication
  • Forged aluminum connecting rods
  • Crankshaft ball bearings
  • Connecting rod ball bearings
  • First- and second-stage aluminum cylinders with hard Nikasil coating
  • First and second stage aluminum hard Nikasil-coated aluminum slide guide cylinders
  • Third-stage cylinder of special treated steel.
  • Stainless steel inlet and discharge valves
  • Stainless steel inter-stage cooling pipes
  • Separator after 2nd and 3rd stage
  • Safety valves after each stage
  • Maxifilter filtering system
  • Oil level sensor

Purification system

The Maxifilter purification system enables reliable breathing air treatment according to DIN EN 12021¹ when using original filter cartridges. Placed after the last compressor separator and before the pressure maintenance valve, it has the separator after the 2nd and 3rd stages to create a first fundamental barrier against moisture. The filter capacity with inlet air at 20°C and 200 bar is 620 m³.

Motor

One of the fundamental parts of the compressor: the motor transfers the motion to the pumping unit via the belt. The Honda GX 270 6.6 kW gasoline engine is available for this model.

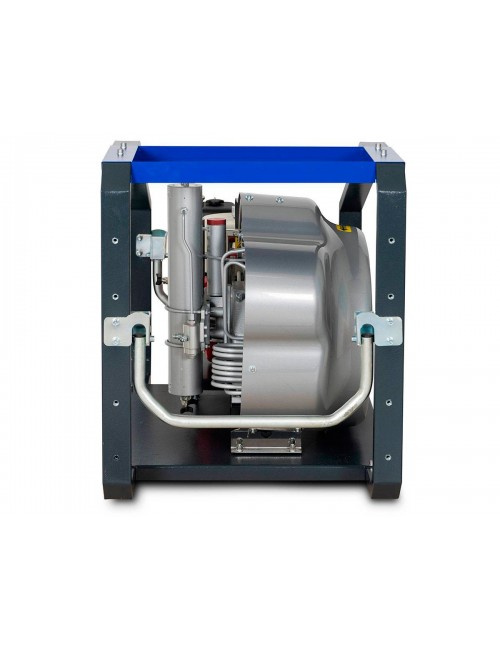

Structure

Open structure designed for easy maintenance and transport. Pivoting motor plate ensures constant tension of the V-belt. Thermoformed protective casing directs cooling air to the cylinders and interstage tubes, ensuring high compression efficiency. The control console equipped with inter-stage pressure gauges, internal temperature indicator, presence and wrong phase sequence alarm, oil shortage alarm, and stop running and manual condensate drain controls allow for easy compressor management and maintenance.

PUMPING UNIT 270 SH
CHARGING RATE

270 L/min - 16.20 m³/h

DRIVEN BY HONDA GX270
FILLING TIME** 7’00"
WORKING PRESSURE 232 - 330 bar / 3300 - 4700 psig
DIMENSION (Wx H x D) 77 x 122 x 63 cm
30.31” x 48.03” x 24.80”
NET WEIGHT APPROX. 121 Kg / 267 lbs
NOISE LpA 95.6 dB


**FILLING TIME CYLINDER 10 l-0/200 bar (measured by filling cylinder from 0 to 200 bar ±5%)
