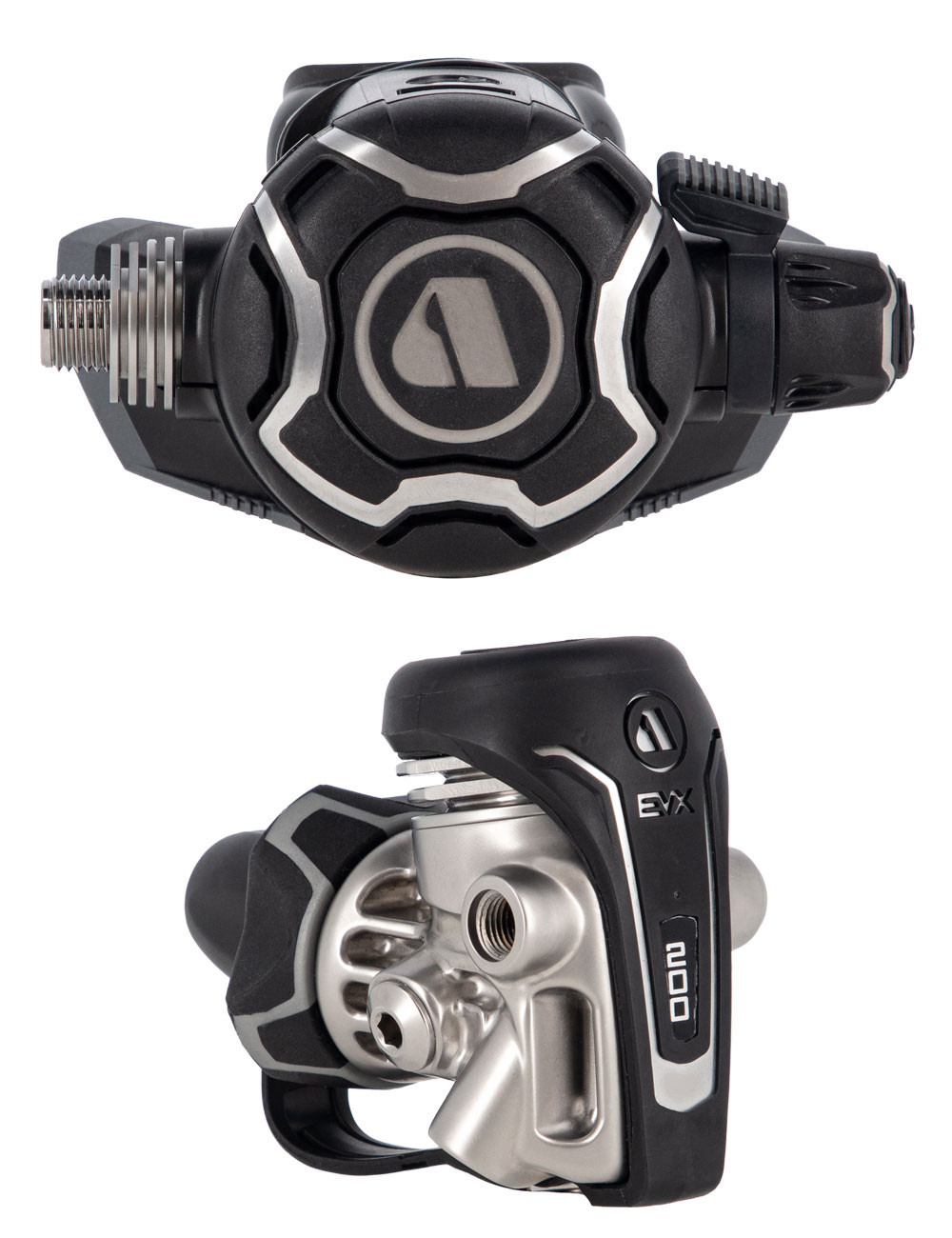

EVX200 REGULATOR DIN

Description:

Precision engineered and crafted to perfection, the EVX200 redefines excellence. An evolution of the most advanced regulator technology, it is the perfect regulator for divers seeking adventure in the most demanding environments. With advanced ergonomics, renowned reliability and a super-smooth breathing experience, the EVX200 delivers exceptional performance in all conditions.

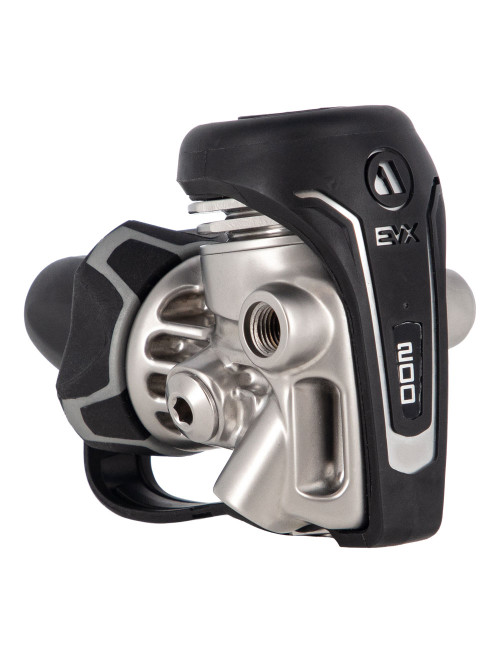

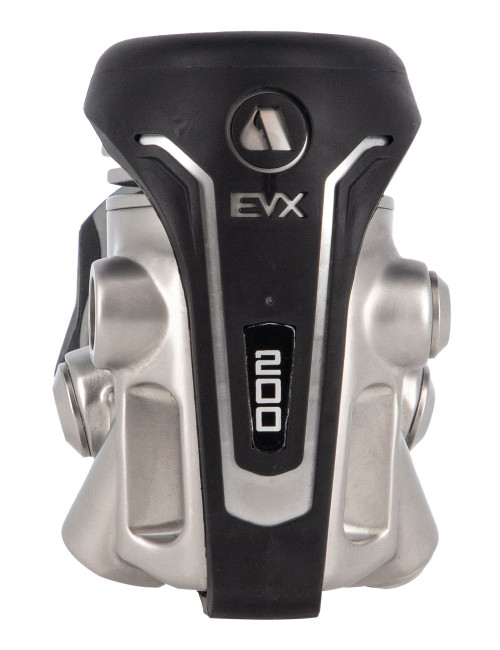

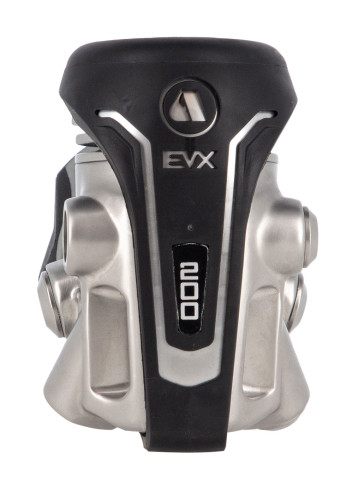

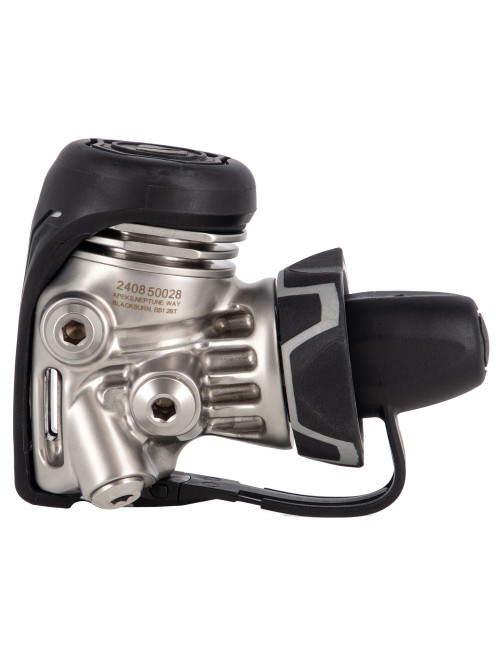

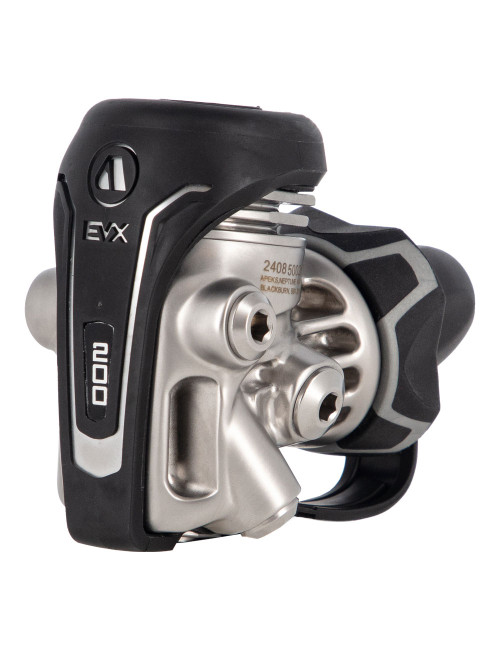

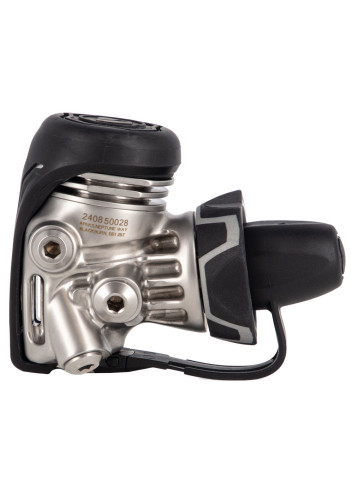

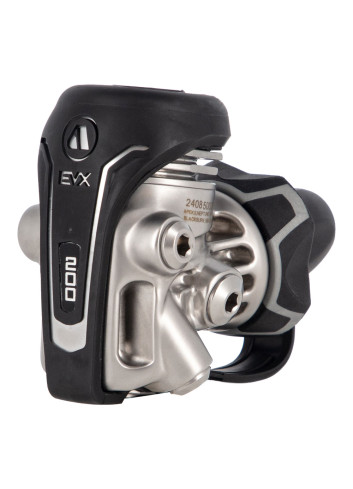

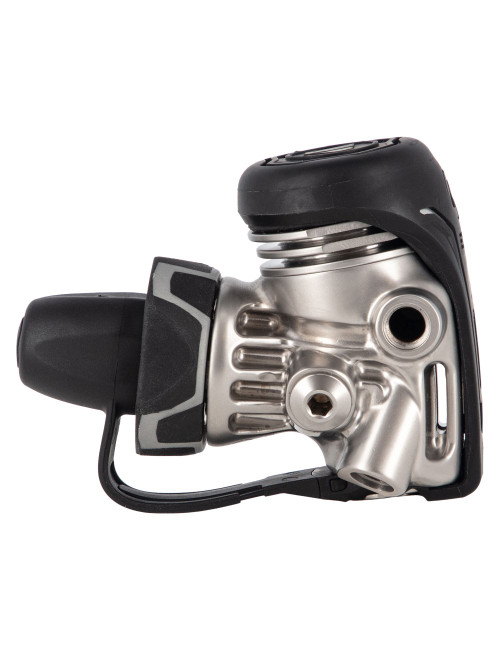

First Stage

• Chrome-plated brass body with heat exchange ribs for maximum thermal performance.
• Ribbed diaphragm for improved heat exchange in cold water.
• Unique overbalanced diaphragm design – As the diver descends, the overbalanced feature allows the medium pressure gas in the hose to increase at a faster rate than ambient. The result is superior performance at depth.
• ACD system prevents water ingress.
• 5 medium pressure ports for better hose orientation, 2 angled high pressure ports for optimal hose routing and transmitter mounting.
• Dual swivel hose for greater freedom of movement and comfort.
• STIRRUP (232 bar) and DIN (300 bar) connections available.

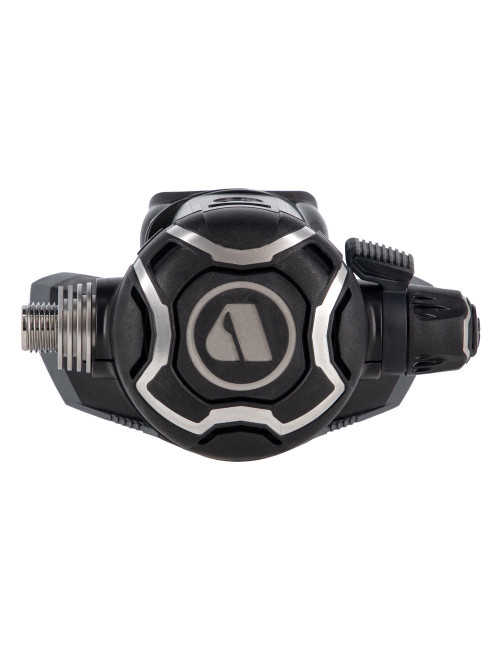

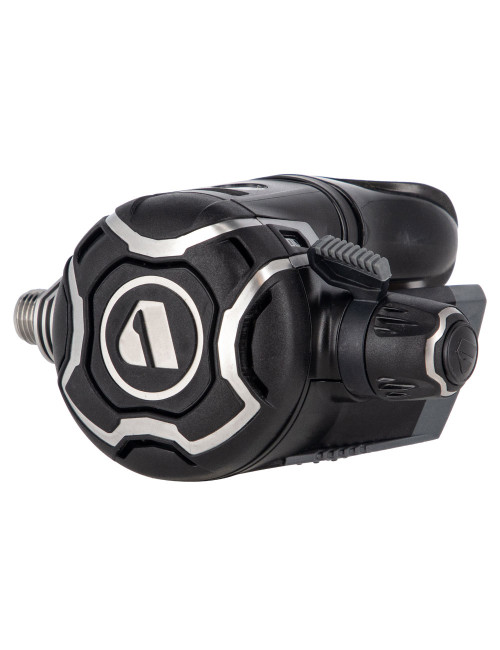

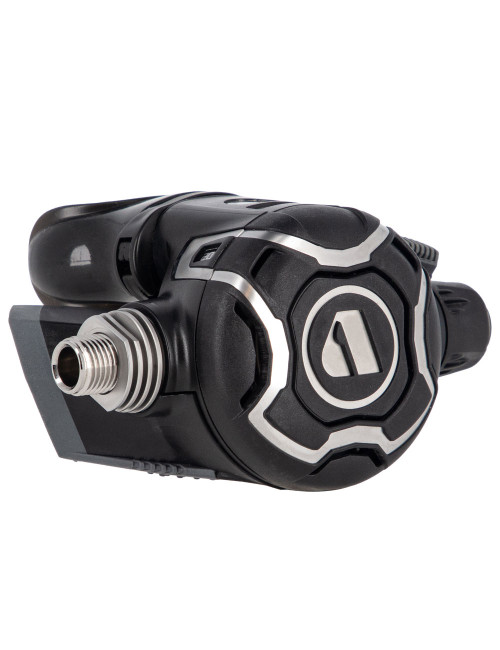

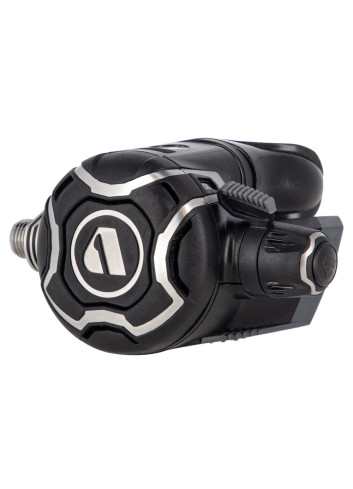

Second stage

• Ergonomic and easy-to-use venturi lever.
• Large breathing effort regulator for easy adjustment in cold water with gloves.
• Linear flow valve.
• 2-stage progressive purge button.
• Reversible second stage for left or right hand gas supply configuration.
• A heat exchanger dissipates the cold caused by air expansion while drawing heat from ambient water for more comfortable breathing.

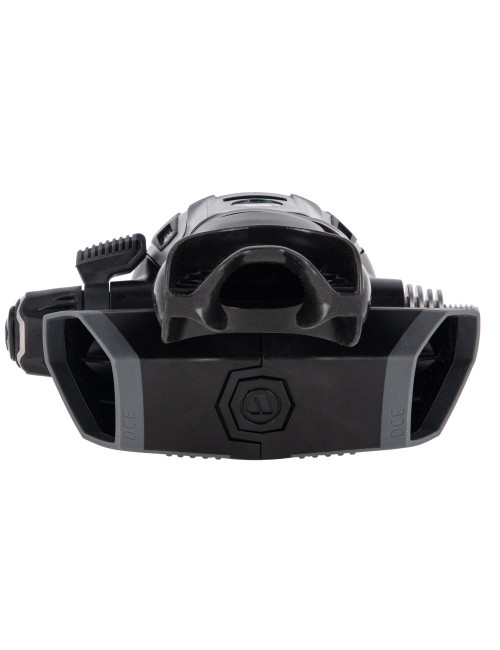

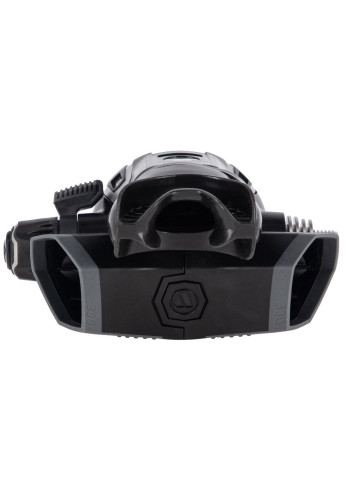

• Features an innovative interchangeable exhaust system (DCE). The system offers the diver the ability to switch from a small exhaust outlet to a large exhaust outlet. The regulator is supplied with both sets of exhaust tees.
• Comfo-bite Mouthpiece
• Flexible braided nylon hose, with better cold water performance than traditional rubber hose.
• Designed and manufactured in the UK.

Technical Specifications:

• Connections: Y-piece and DIN available
• First Stage Type: Overbalanced Diaphragm Design, Environmentally Sealed
• Body Type: One-Piece Forged Body
• Number of HP (High Pressure) Ports: 2 (7/16"" UNF)
• Number of MP (Medium Pressure) Ports: 5 (3/8"" UNF)
• Environmental: Standard Dry Kit
• First Stage Exterior: Satin Chrome
• Orientation: MI or MD Convertible (Left or Right Hand)
• Cold Water Use: Yes - Extreme
• Second Stage Type: Pneumatically Balanced
• Opening Effort Control Knob: Yes
• Integrated Venturi Lever: Yes
• Mouthpiece: Comfo-bite™
• Diver Exhaust Tee Changeable: Two sets supplied
• Heat Exchanger for Freeze Resistance: Yes
• Hose Type: Braided Flexi-Hose
• Nitrox Compatible: Yes up to 100 psi 40% O2 in new state (21% in Europe).
