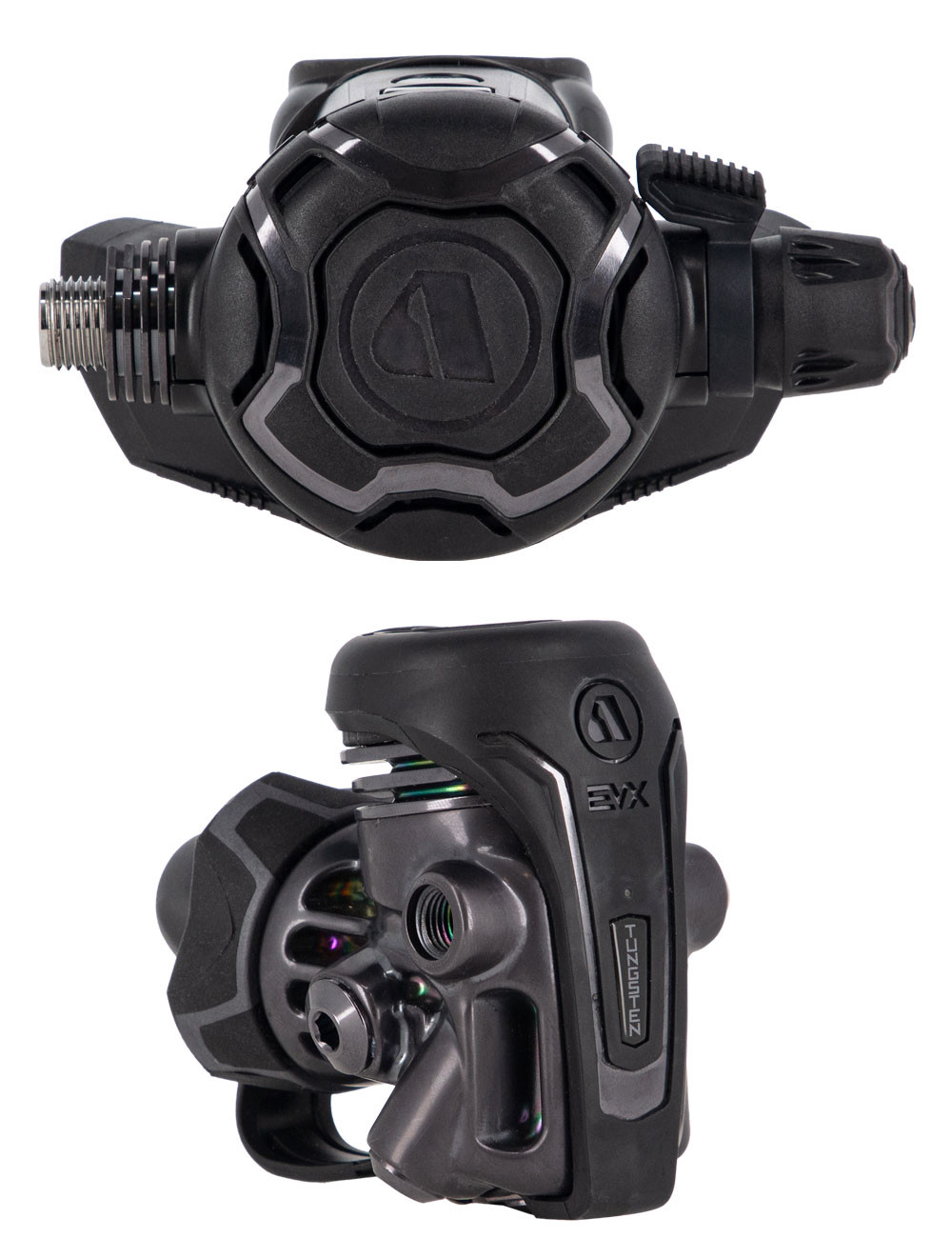

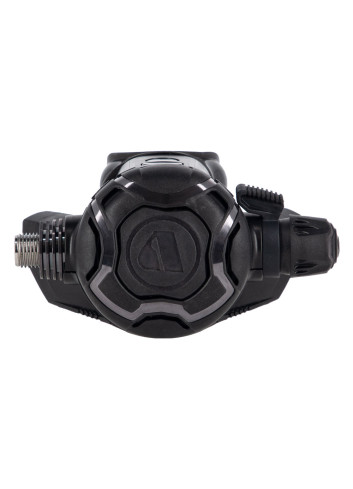

EVX TUNGSTEN REGULATOR DIN

Description:

The evolution of 50 years of technical expertise, the EVX Tungsten combines the most advanced regulator technology with rugged looks and great durability. Maximum thermal performance, super-smooth breathing and advanced ergonomics distinguish the EVX Tungsten, making it the perfect regulator for divers seeking style, substance and exceptional performance, regardless of the environment.

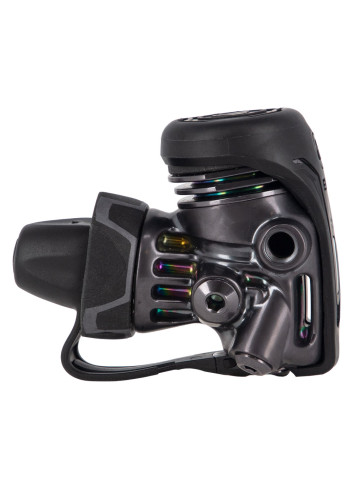

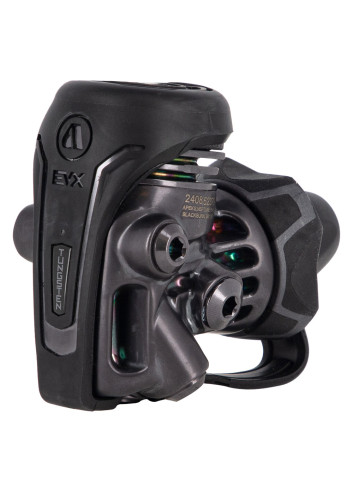

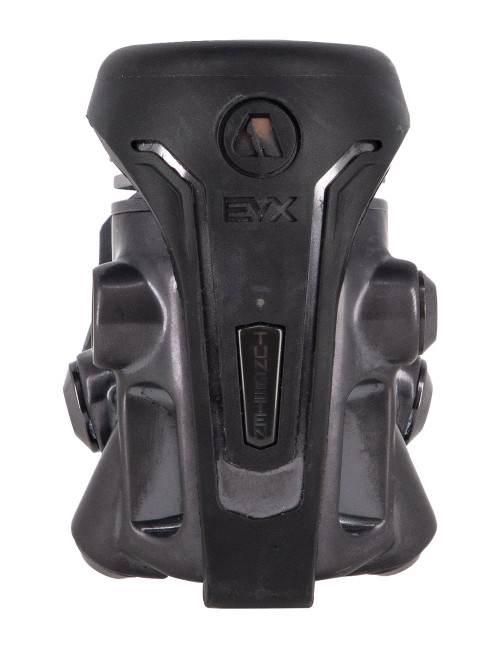

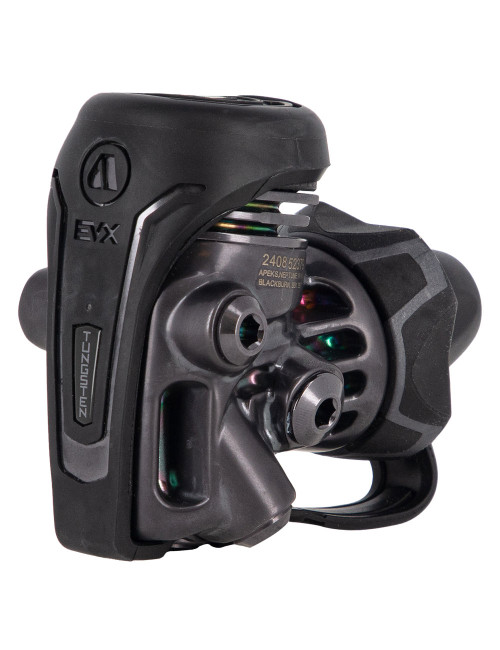

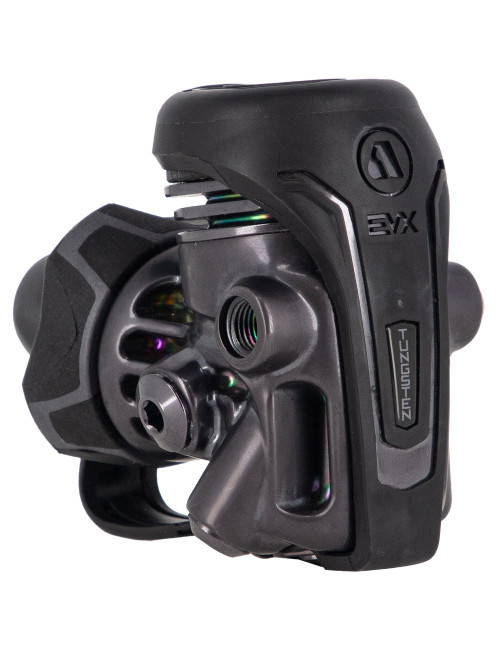

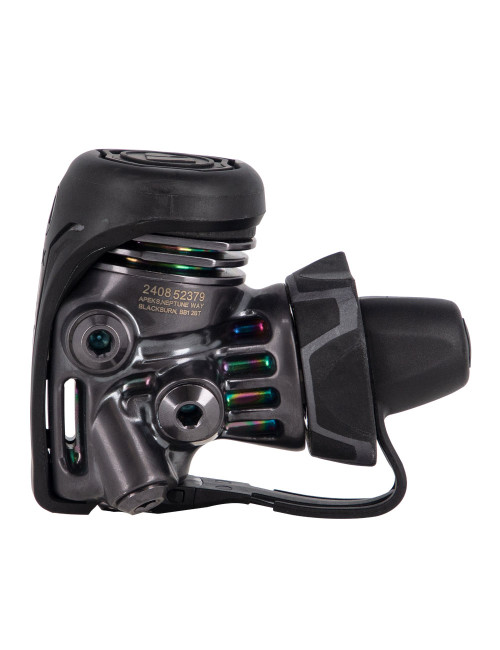

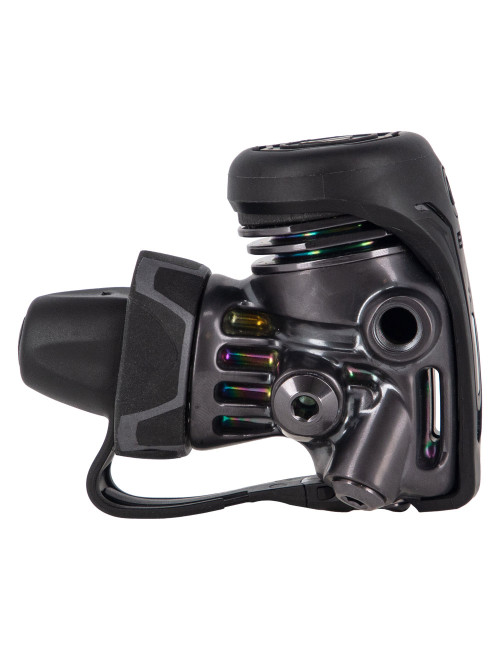

First Stage

• PVD coated brass body with heat exchange ribs for maximum thermal performance.Ribbed diaphragm for improved heat exchange in cold water.
• Unique overbalanced diaphragm design: As the diver descends, the overbalanced feature allows the medium pressure gas in the hose to increase at a faster rate than ambient. The result is superior performance at depth.
• ACD system prevents water ingress.
• 5 medium pressure ports for better hose orientation, 2 angled high pressure ports for optimal hose routing and transmitter mounting.
• Dual swivel hose for greater freedom of movement and comfort.

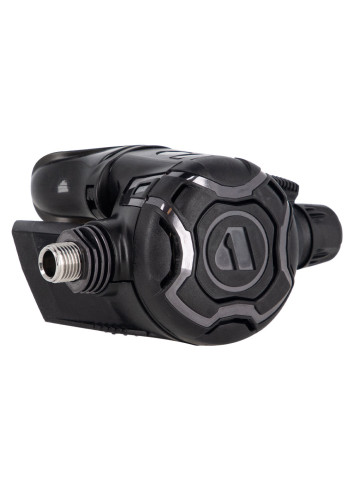

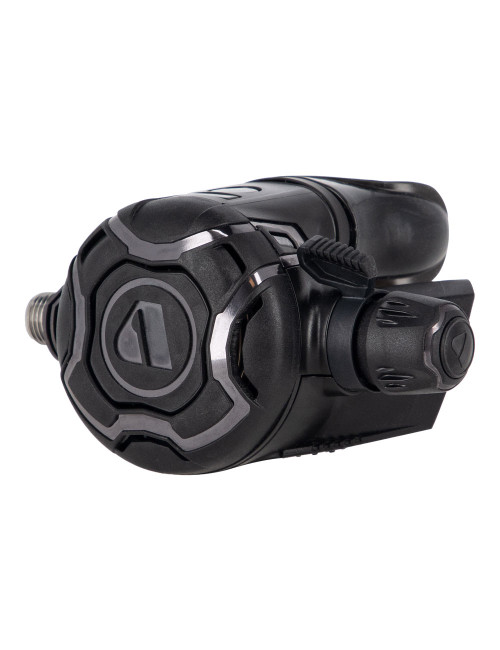

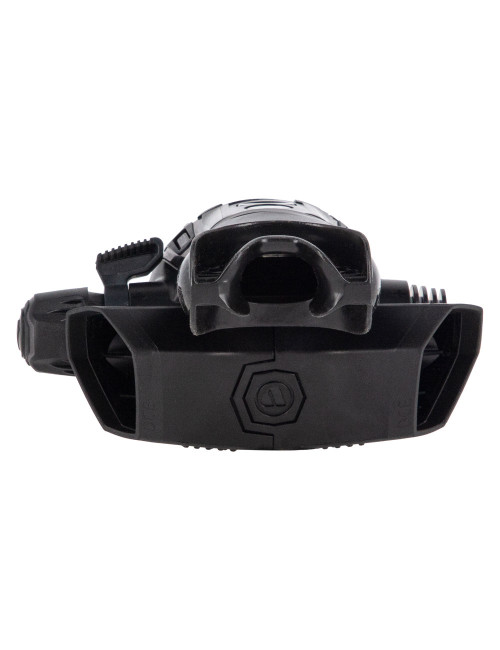

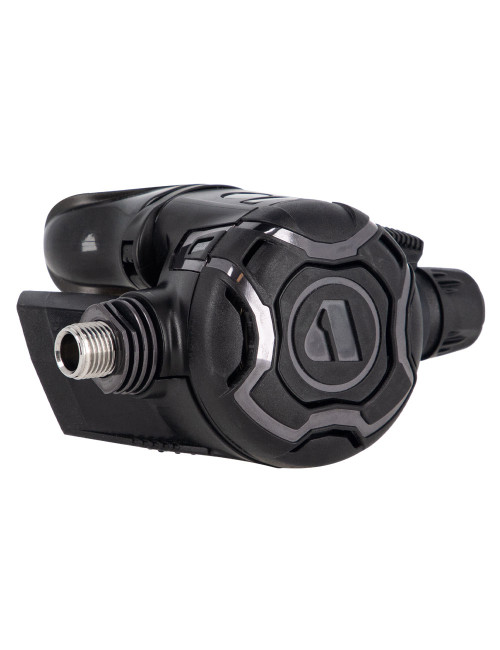

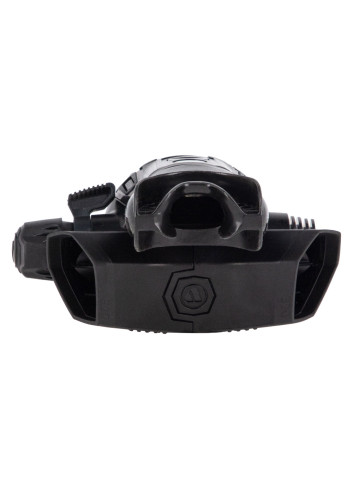

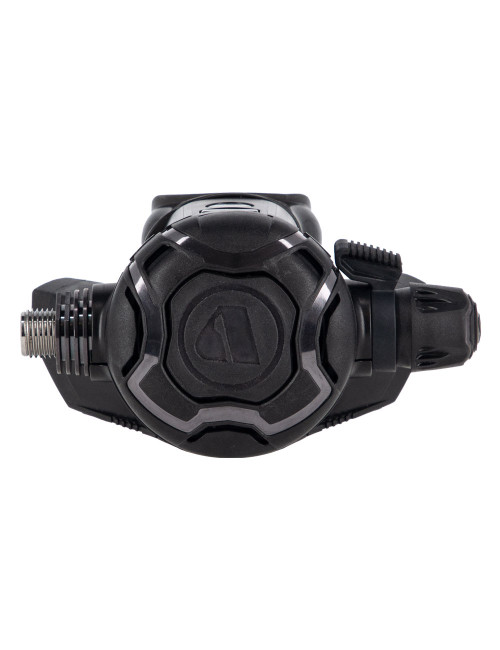

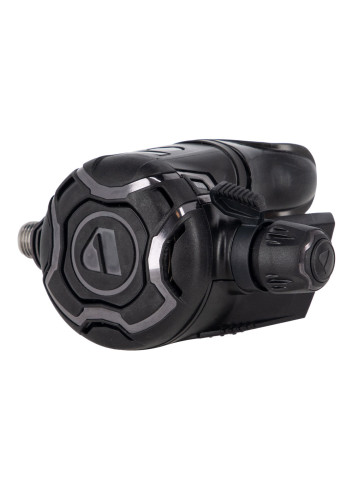

Second stage

• Ergonomic, easy-to-use venturi lever.
• Large breathing effort regulator for easy adjustment in cold water with gloves.
• Linear flow valve.
• 2-stage progressive purge button.
• Reversible second stage for left or right hand gas supply configuration.
• A heat exchanger dissipates the cold caused by expanding air while drawing heat from ambient water for more comfortable breathing.
• Features an innovative interchangeable exhaust system (DCE). The system offers the diver the ability to switch from a small exhaust outlet to a large exhaust outlet. The regulator is supplied with both sets of exhaust tees.
• Comfo-bite Mouthpiece
• Flexible braided nylon hose, with better cold water performance than traditional rubber hose.
• Designed and manufactured in the UK.

Specifications:

• Connections: Y-piece and DIN available
• First Stage Type: Overbalanced Diaphragm Design, Environmentally Sealed
• Body Type: One-Piece Forged Body
• Number of HP (High Pressure) Ports: 2 (7/16"" UNF)
• Number of MP (Medium Pressure) Ports: 5 (3/8"" UNF)
• Environmental: Standard Dry Kit
• First Stage Exterior: PVD Coated
• Orientation: MI or MD Convertible (Left or Right Hand)
• Cold Water Use: Yes - Extreme
• Second Stage Type: Pneumatically Balanced
• Opening Effort Control Knob: Yes
• Integrated Venturi Lever: Yes
• Mouthpiece: Comfo-bite™
• Diver Exhaust Tee Changeable: Two sets supplied
• Heat Exchanger for Freeze Resistance: Yes
• Hose Type: Braided Flexi-Hose
• Nitrox Compatible: Yes up to 40% of O2 in new condition (21% in Europe).
