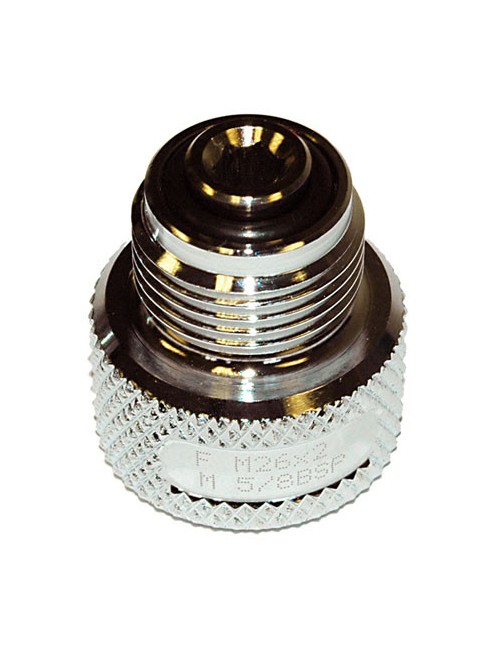

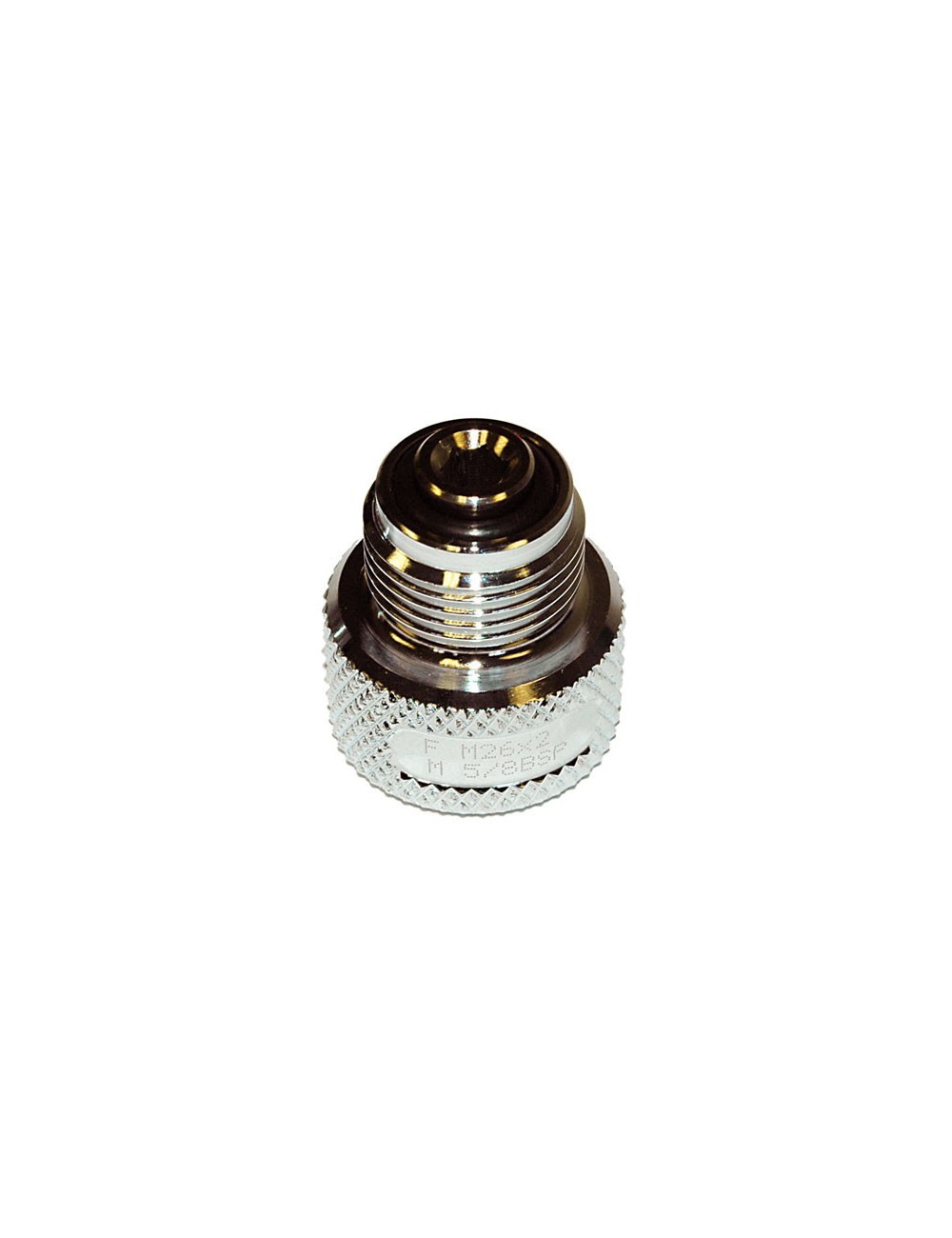

MALE DIN 200 G5/8 TO FEMALE M26 CONVERTER
TKCG0204AP8RAPD

MALE DIN 200 G5/8 TO FEMALE M26 CONVERTER

€18.18
0%

TKCG0204AP8RAPD

MALE DIN 200 G5/8 TO FEMALE M26 CONVERTER

Consult with an expert
€18.18

18.18

tax excl.

Quantity

Producto fuera de stock. Consultar en los próximos: días de entrega

Data sheet

TANKS AND VALVES
REGULATORS
SPARE PARTS & ACCESSORIES

Specific References

Description:

For gas-filling when travelling in Europe and/or adapting a 5/8" BSP cylinder valve to accept a M26x2 first stage or compressor connector

European Standard for oxygen connection - applies from August 2008

The European standard came into force in August 2008 specifying that the connection to a cylinder containing any gas with an oxygen percentage greater than 22% should be a different thread (M26x2) than the BSP thread standard on air cylinders

As a result, from July 2008, we modified the connection on the oxygen cylinder valve (and the AP oxygen first stage) of all AP rebreather onboard cylinders to the new M26x2 thread as our standard production spec

In order to overcome possible difficulties with compatibility on existing dive kit and issues with filling cylinders, we have introduced the two adaptors (AP8N and AP8R) allowing the conversion of the (pre-July 2008) 5/8" BSP thread to the new M26x2 thread and vice versa

Customers will still be able to specify the valve (and first stage) with 5/8" BSP thread on all new unit orders, allowing customers outside the EU to purchase the valve they have always used but also allowing customers within the EU that may travel frequently to purchase the most appropriate valve for their most common diving destinations

NOTE: If a valve choice is not specified the default valve supplied will have the new M26x2 thread
