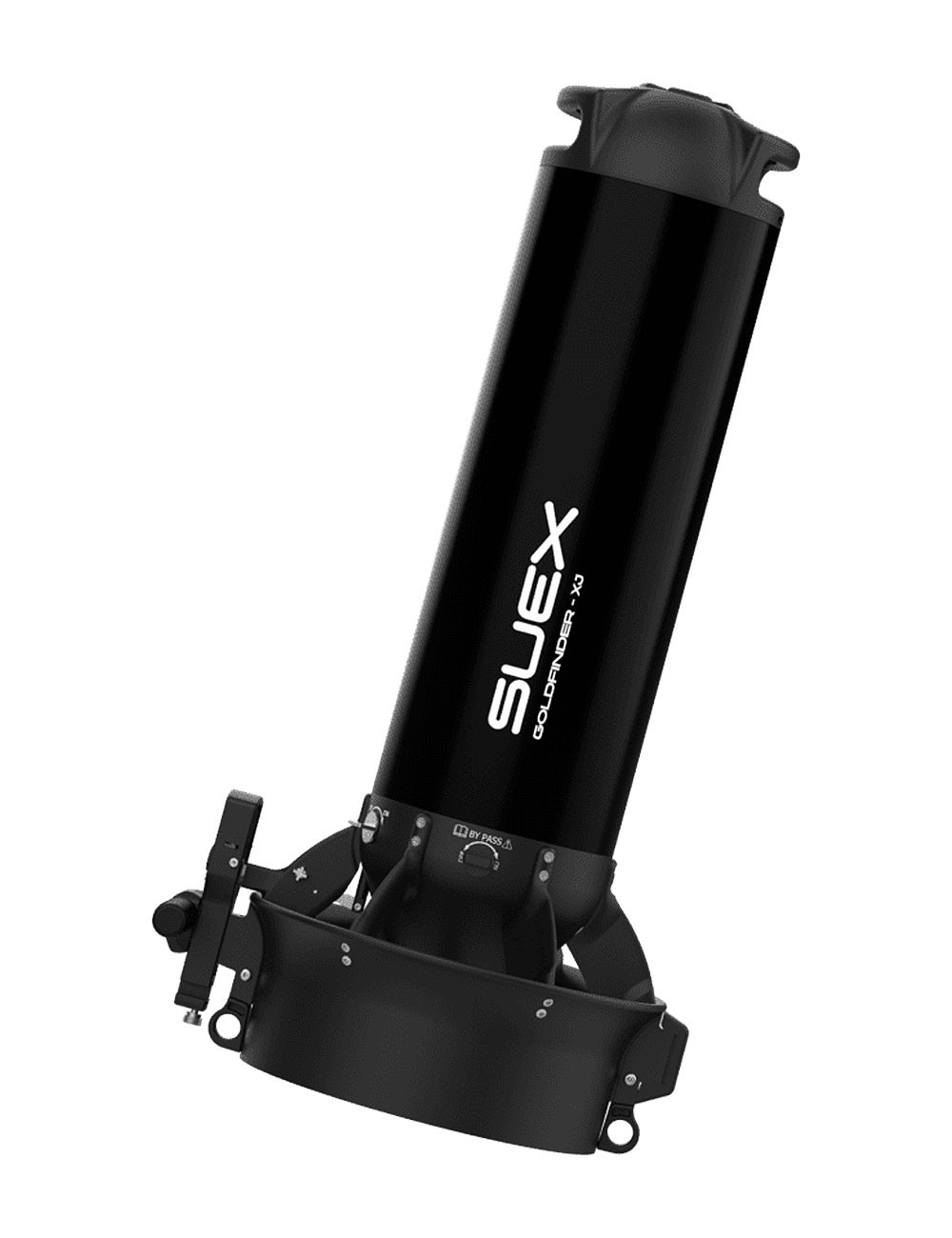

GOLDFINGER-XJ DPV JET BLACK

Reference TKSU72324

Producto fuera de stock. Consultar en los próximos: días de entrega

Description:

Underwater scooter for technical/professional use with aluminium body. The Goldfinder-XJ model is equipped with a Li-ION battery and therefore a high capacity is granted. The battery can be monitored through the Calypso app and the Eron D-1 dashboard and the diver can have full control of the dive

Nautilus Concept

Years of research and development combined with multiple cutting-edge technical elements have resulted in this new navigation experience system that guarantees perfect stability and navigation attitude of the Suex DPV during operation. The synergy between the design elements of Nautilus radically improves the performance of the Suex DPV, allowing for increased propulsive thrust, autonomy and silence, together guaranteeing an unprecedented navigation experience.

Autonomy and connectivity

The Goldfinder-XJ model is equipped with a Li-ION battery and therefore a high capacity is granted. The battery can be monitored through the Calypso app and the Eron D-1 dashboard and the diver can have full control of the dive. Thanks to this kind of battery a 310 minutes runtime at cruising speed and 100 minutes diving at full speed (90 m/min) can be done.

Full Control

The aluminium body and carbon fibre PropLock propeller allow you to reach depths of up to 200 metres, while maintaining full control of the dive with the Calypso app and the Eron D-1 Dashboard, which connects to the motor, battery and the Eron D-1.

Full Mode

Combining the Goldfinder-XJ and Eron D-1 gives you access to the dashboard’s FULL mode, featuring a wide range of functions, including the recording of dive, depth and heading data (Heading).

Gemini Frame

Gemini is the new technological frame that allows to couple two Goldfinder XKs and XJs (each model has its own dedicated frame). The coupled system offers a doubled thrust, increased runtime and, enhanced redundancy. This platform offers an incredible payload support for various professional equipment that can be attached to the Suex standard rail.

Drive System

DRIVe is a state-of-the-art integrated system for planning DPV underwater navigation and data collection during and after a dive. Thanks to this innovative system, all the devices in the Drive system provide the user with a series of strategic information for the management, navigation and safety of their dives

Fetures:

• Charge indicator with nine high-intensity blue LED lights located at the rear of the scooter

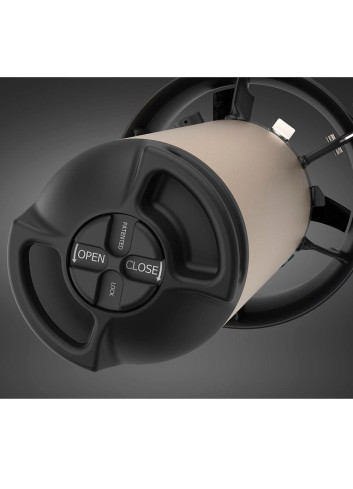

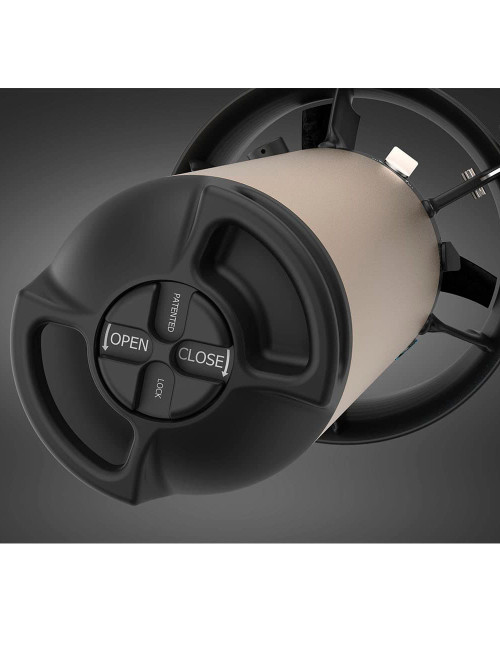

• Patented locking system without hooks or screws, minimising the risk of snagging and eliminating the risk of accidental opening
• Fully mechanical safety system to cut off power in all conditions

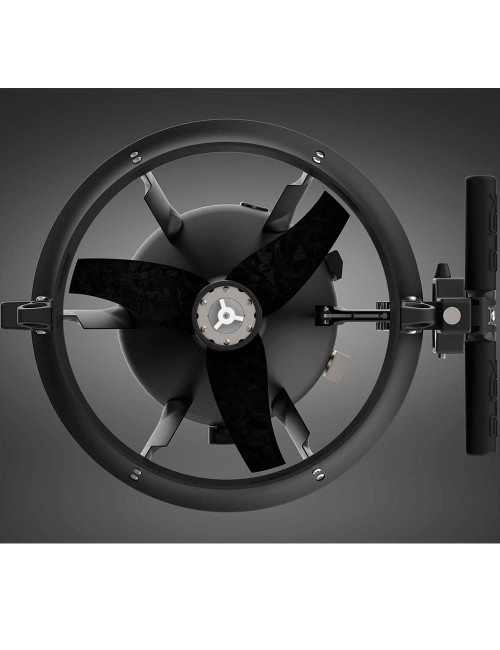

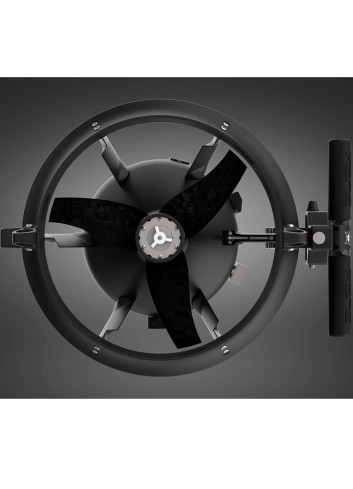

• Poplock Propeller: Patented system for releasing and refitting the propeller underwater without tools and separate parts

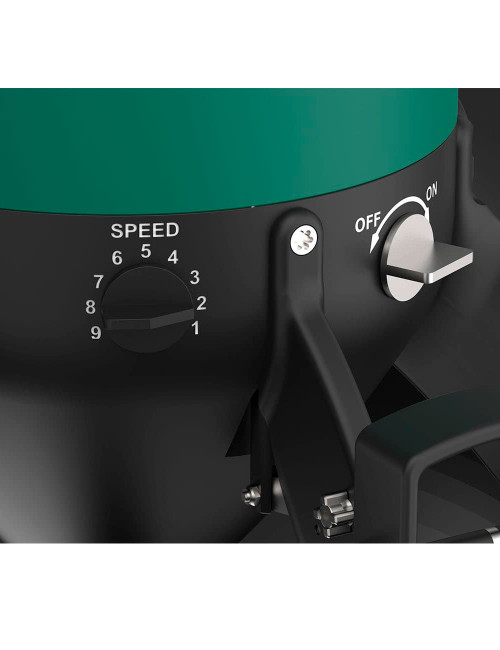

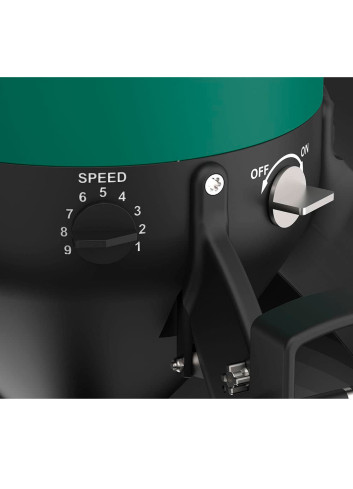

• Speed Adjuster: Electronic propeller speed control device and Soft Start system for progressive starting of the motor

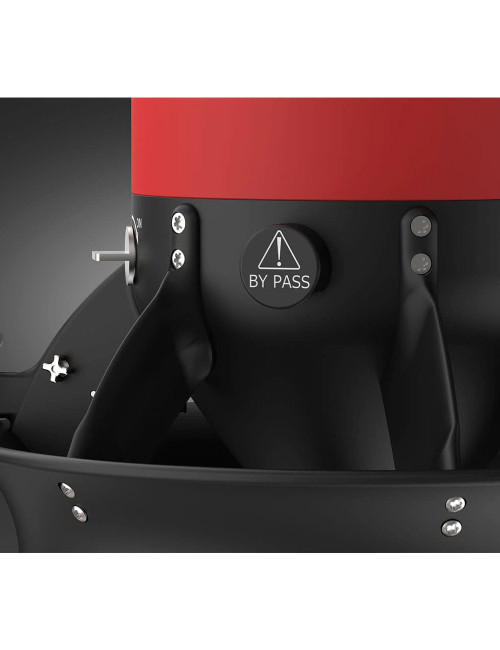

• By-Pass System: Additional system to connect the motor to the battery in the event of a control board failure
• Easy Inspection: Battery/motor separator in transparent material for easy inspection of the motor compartment

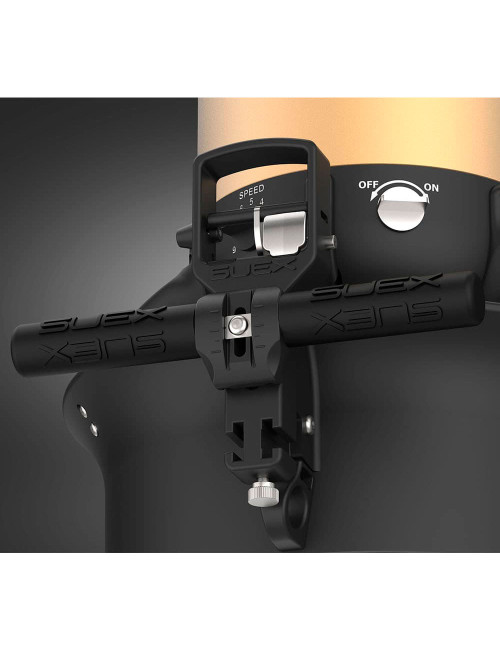

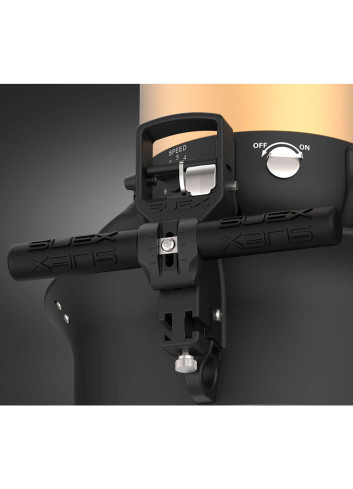

• Control Handle: Ergonomically designed control handle for easy control of direction and speed

Technical Specifications:

• USE: Long-range/Cave, Technical/Professional
• LENGTH: mm 814 (inch 31,1)
• WIDTH: mm 340 (inch 12,9)
• HIGH: mm 436 (inch 17,2)
• BODY DIAMETER: mm 197 (inch 7,8)
• WEIGHT WITHOUT BATTERY: kg 14 (lb 30,9)
• WEIGHT WITH BATTERY: kg 20 (lb 44,1)
• BODY MATERIAL: Aluminium
• MAX. STATIC THRUST: N 330 (lb 74,2)
• MAX SPEED: mt/min 90 (ft/min 295)
• MAXIMUM OPERATING DEPTH: m 200 (ft 656)
• TESTING DEPTH: m 300
• BUOYANCY / TRIM: Neutral trim and buoyancy
• IN-WATER USAGE TEMPERATURE: °C -5/+35 (°F +23/+95)
• AUTONOMY (MAX SPEED): 100 min
• AUTONOMY (CRUISING SPEED AT 45 M/MIN): 310 min
• TYPE OF BATTERIES: Li-Ion
• NOMINAL VOLTAGE: Volt 25,2
• NOMINAL CAPACITY: Wh 940
• MAXIMUM CHARGING TIME: h 8
• BATTERY CHARGER POWER SUPPLY: Volt 100/220 – 50/60 H
