SOLO O2 ANALIZER

Description:

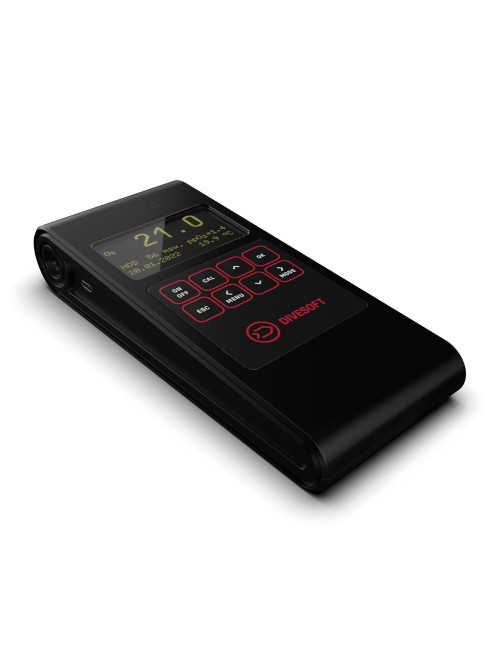

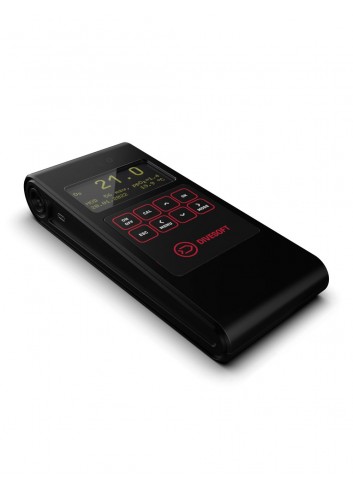

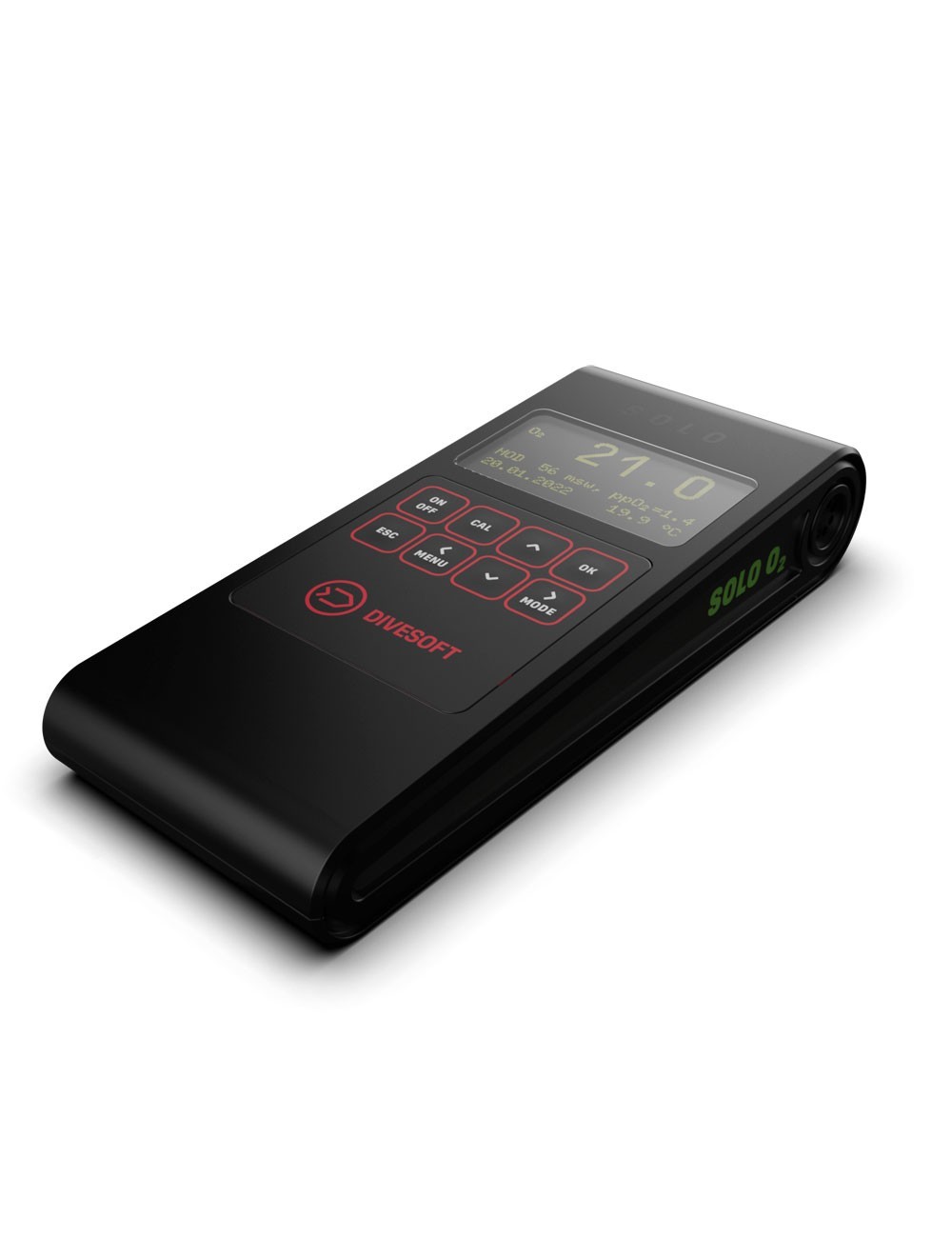

A smart and accurate NITROX analyzer that offers simple oxygen measurement and advanced features.

Analyzer SOLO O2 is the ideal partner for all recreational NITROX divers.

Analyzing is really easy, just turn on with one press and measure. Easy automatic calibration. Analyzer SOLO O2 has the same durable polymer body as its brother Analyzer SOLO, allowing you to get the device upgraded to a trimix analyzer by getting a helium sensor added.

Features:

• Divesoft's high quality analyzer finally available for recreational divers.

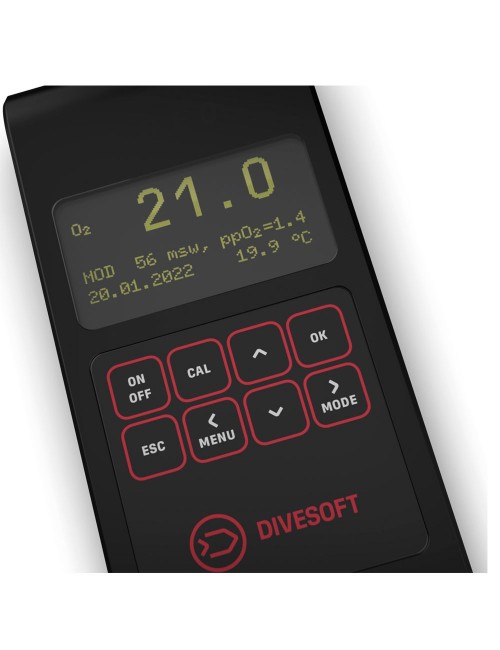

• Intuitive controls, 2 display screens and advanced Software.
• Easy to read O2% content including MOD for preset ppO2, date and temperature.
• MOD values for PO2 at 1.2, 1.4, 1.6 bar for immediate reference.
• Simple automatic calibration. Analyzer SOLO O2 provides real time gas calculations for the most accurate cylinder labeling. Built in Gas mixing software.
• Integrated thermometer and pressure sensor.
• Pressure sensor for accuracy when calibrating in different environments.
• Thermometer to display ambient temperature and built-in notification for O2 sensor performance when measuring in extreme temperature conditions.
• Li-Ion battery
• Rechargeable Li-Ion battery with supplied USB-C cable for your convenience as well as for purpose of continuous gas analysis.

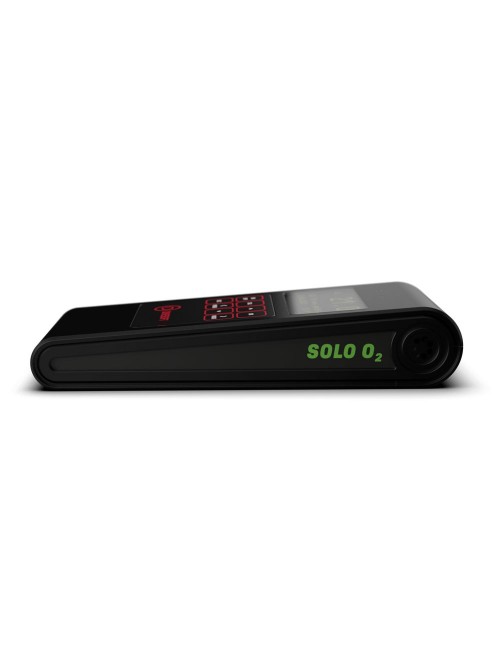

• Streamline Design
• Designed to fit comfortably in hand for ease of gas analysis in any environment.
• Upgradeability: If you decide to venture into the world of technical diving and diving mixes containing Helium, you can get your SOLO O2 upgraded by getting our solid state Helium sensor added. (The upgrade is performed by Divesoft)
• Easy access: Designed for easy O2 sensor replacement. The device is supplied with Teledyne or Analytical Industries Oxygen sensors.

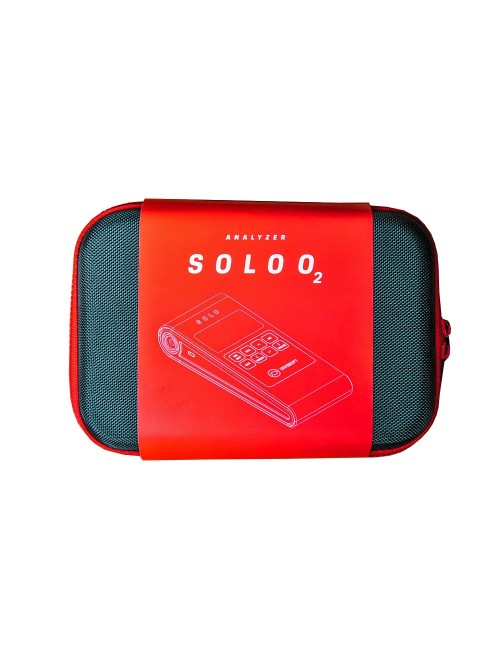

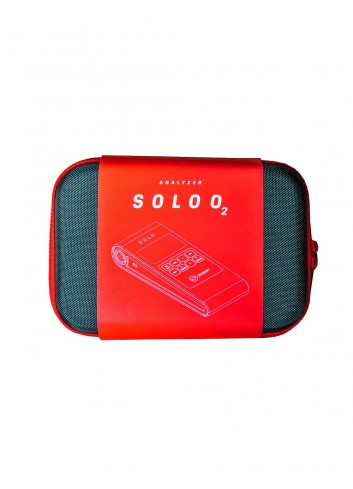

• Semi-hard case: Comes in semi-hard case for easy transporting and to protect your SOLO O2 analyzer from harsh field environments.

Analyzer SOLO O2 comes with following:

• Analyzer SOLO O2
• USB-C cable
• Simple flow limiter for Analyzer SOLO O2
• Semi-hard zipper case for Analyzer SOLO

Technical Specifications:

• Dimensions: 85 × 205 × 40 mm (31/4 × 77/8 × 11/2 inches)
• Weight: 332 g (without packaging and accessories)
• Oxygen concentration measurement range: 0 to 100%
• Operating pressure: 700–1100 millibars (20– 32 inches Hg), which corresponds to a standard atmosphere at 0 to 3000 m (0–10000 ft)
• Mixture Pressure: Corresponds to an ambient pressure in the range of 700–1100 millibars (20– 32 inches Hg), which corresponds to a standard atmosphere at 0 to 3000 m (0–10000 ft)
• Nominal gas flow rate: 0.2 l / min
• Measuring cycle: 200ms
• The connection dimensions of the sampler: Standard for a DIN valve (EN 144-2) for 200/300 bars (G 5/8 thread). Samplers with a connection to any standardized or common valves are available on request or as optional equipment
• Oxygen sensor: R22 S (Molex connector)
• Easy to replace O2 sensor
• Oxygen sensor life expectancy: 2 years
• Replaceable battery: Through authorized service center
• Battery: 210 measurements or 7 hours of continuous operation
• Warranty: 24 months, 12 months on battery and oxygen sensor
• Charging and programming: USB-C
• Charging time: 3–4 h
• Display: OLED
• Body: ABS-PC
