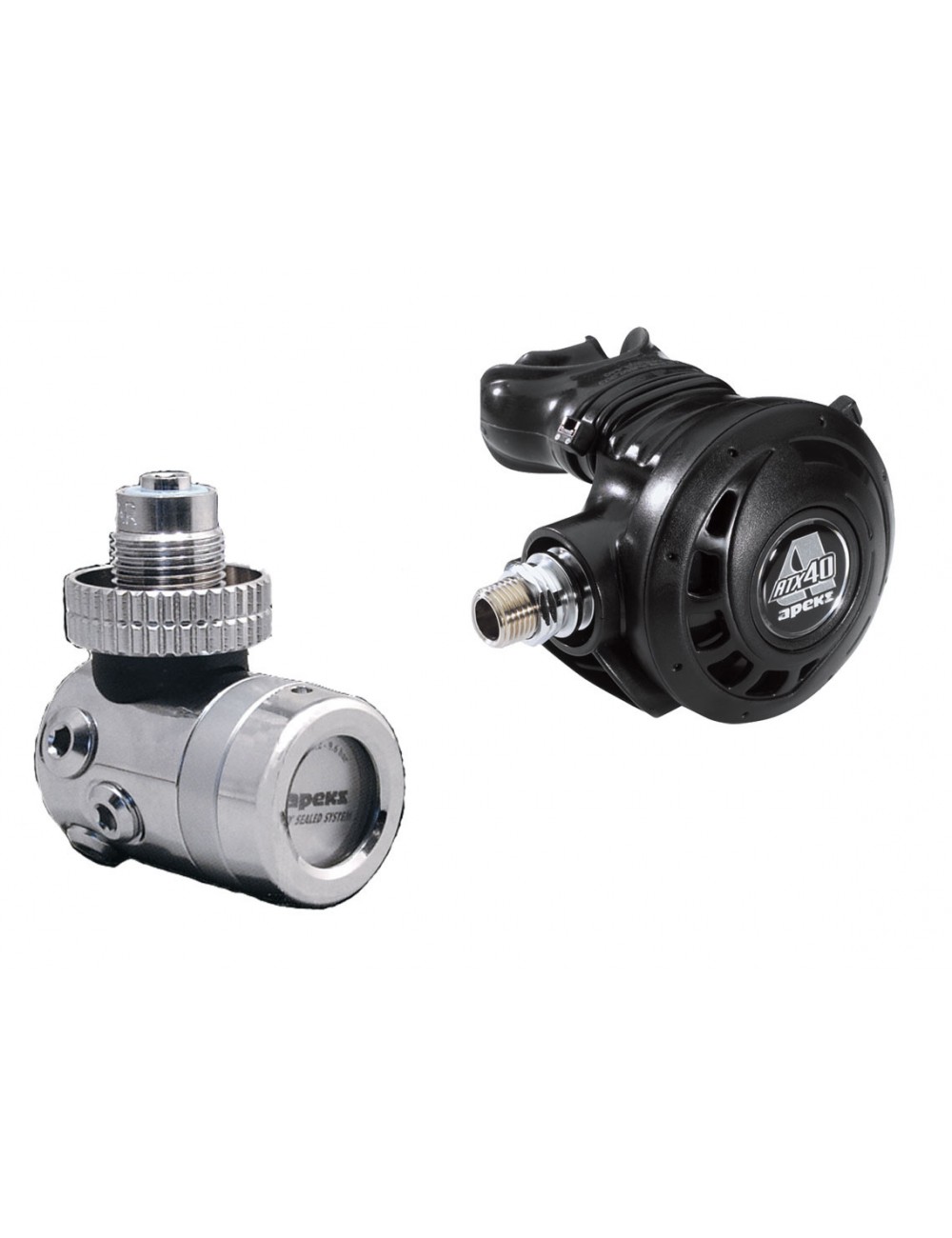

ATX40 DS4 DIN REGULATOR

Reference AQAP0540C1DS4

Producto fuera de stock. Consultar en los próximos: días de entrega

Data sheet

REGULATORS

REGULATOR

FIRST STAGE

DIAPHRAGM

FIRST STAGE

BALANCED

SUMMER SALES

REGULATORS

Specific References

Description

Before the XTX range of regulators came along, the ATX models ruled the seas. The ATX40 is still available today and offers a fully balanced first and second stage with cold water capability (can be used in all temperatures including those below 10 C / 50 F).

This high-performance regulator boasts an over-balanced first stage coupled with a pneumatically balanced second stage.
The smooth, quiet breath is sure to enhance your diving enjoyment.
Suitable for cold water use thanks to its first stage environmental dry seal and second stage heat exchanger.

First Stage

• Uses the DS4 first stage

• Unique over-balanced, diaphragm design - as the diver descends, the over-balancing feature allows the medium pressure gas in the hose to increase at a rate faster than ambient. This results in superior performance at depth.

• 1 HP port and 4 MP ports are available.

• An environmental dry system keeps water out of the main spring chamber thus preventing ice build-up and keeping silt and contamination out.

• Available in DIN and yoke.

Second Stage

• Pneumatically-balanced second stage results in smooth, easy breathing.

• The large purge button on the ATX is easy to operate even with thick gloves.

• The integrated venturi control provides a performance boost at depth while preventing unwanted free flow at the surface.

• An extremely efficient exhaust valve improves the breathing performance of the regulator.

• The Comfo-bite™ mouthpiece virtually eliminates jaw-fatigue.

• A heat exchanger (patented) which surrounds the valve mechanism, dissipates the cold caused by gas expansion while drawing in the warmth of the ambient water.

• Offers a compact, integrated exhaust tee.

ATX40 Octopus

This octopus is based upon the XTX40 second stage, cold water capability and the performance you would expect from an Apeks pneumatically balanced valve. It features a diver-adjustable venturi control, a high visibility yellow front cover, yellow accent pieces and a 36” yellow hose.

• Pneumatically-balanced second stage results in smooth, easy breathing.

• The large venturi lever has a soft touch rubber grip, which makes it easier to locate and use. The lever reduces the amount of grit ingress and therefore resists any possible friction giving a smooth operation.

• The Octopus is manufactured with active protection against infection as all moulded parts are produced with an additive that kills MRSA, protects against E-Coli, bacteria and fungi, and is also very effective against viruses, mould, yeast and algae.

• A silicone exhaust valve improves the breathing performance of the regulator.

• The Comfo-bite™ mouthpiece virtually eliminates jaw-fatigue

• Suitable for cold water use (below 10 C / 50 F).
