LP 600 NITROX ROTARY

Consult with an expert
Delivery:
Producto fuera de stock. Consultar en los próximos: días de entrega

Data sheet

NITROX DIAPHRAGM
ELECTRIC


Description:

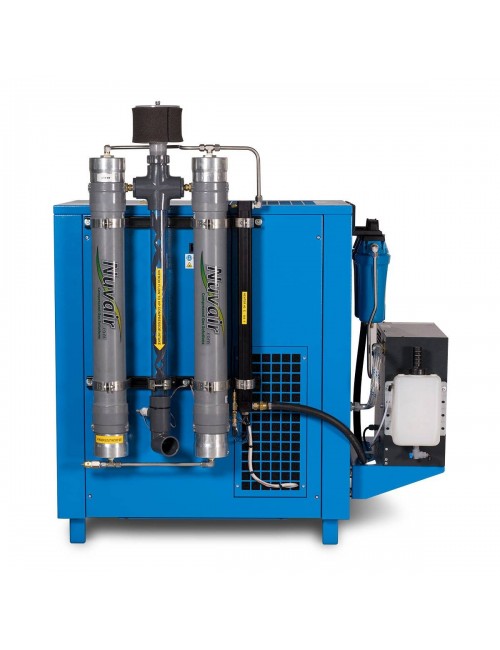

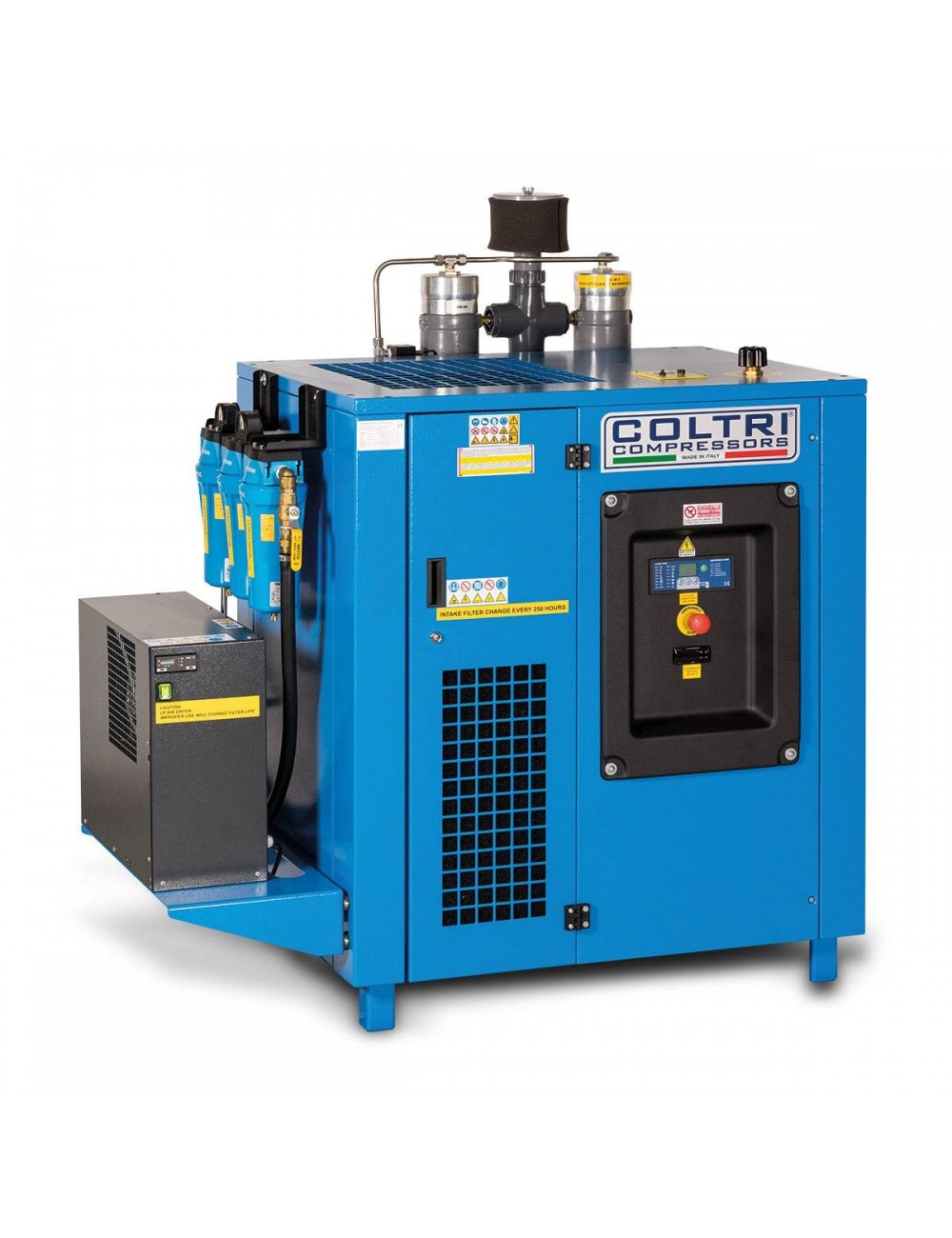

At the top of the Nitrox line, the LP600 ROTARY system consists of an industrial screw compressor that delivers air at a pressure of 8 bar to a membrane that separates nitrogen and oxygen at atmospheric pressure until Nitrox 40% O2 is obtained and can be compressed at a pressure of 232 bar in combination with a high pressure compressor. The percentage of oxygen obtained at the outlet can be regulated from 22.4% to 40% using a valve directly accessible on top of the compressor. Exclusive to the the Heavy Duty line compressors.

STANDARD EQUIPMENT:

  • Automatic condensate drain and autostop
  • Electric switchboard with hourmeter
  • 2 in line analyzers
  • Cabin temperature thermostat/auto shutoff
  • Autostop

PUMPING UNIT

LP 600

FLOW RATE

2 × MCH 30 - 1100 l/m - 66,00 m³/h - 38.85 CFM FAD - O2 32%

1 × MCH 36 - 650 l/m - 39,00 m³/h - 22.95 CFM FAD - O2 40%

DRIVEN BY

THREE-PHASE ELECTRIC MOTOR

WORKING PRESSURE

8 - 10 bar / 116 - 145 psig

DIMENSION (W x H x D)

1563 x 1382 x 931 mm
61.54" x 54.41" x 36.65"

NET WEIGHT APPROX.

215 Kg / 474 lbs

NOISE LpA

70 dB
