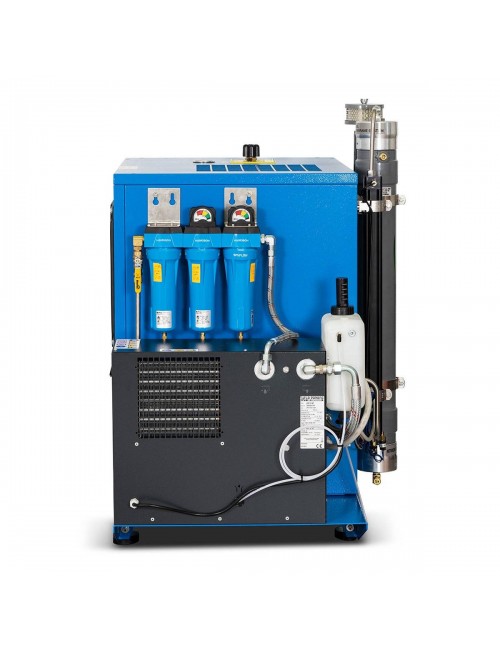

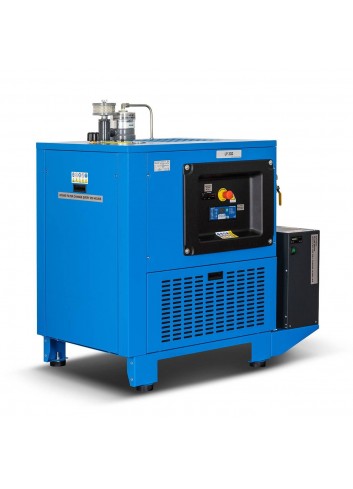

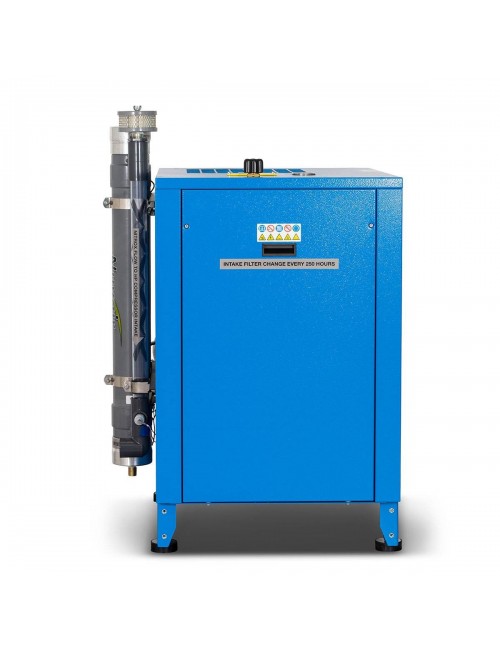

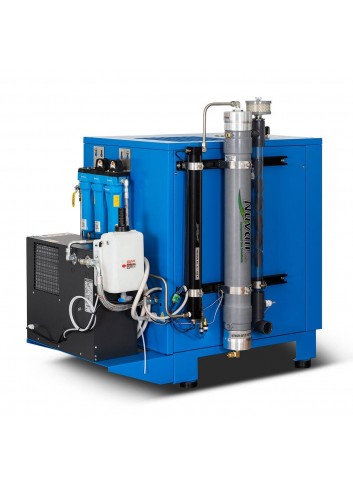

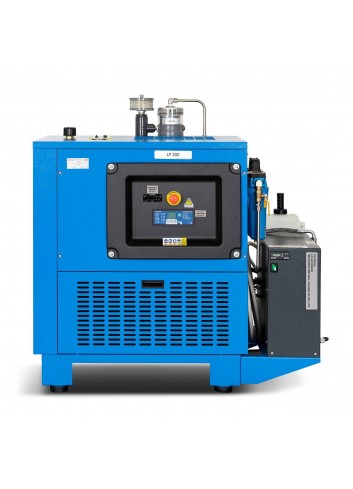

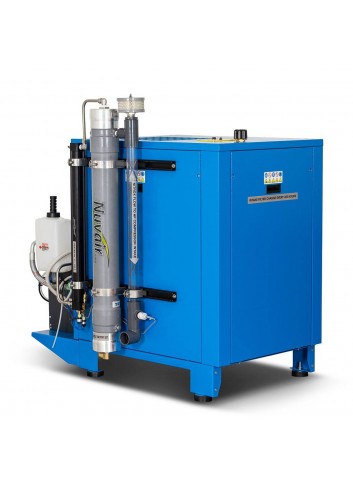

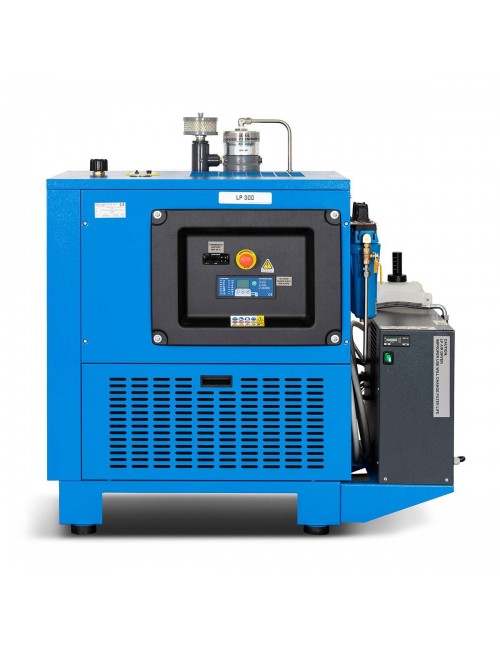

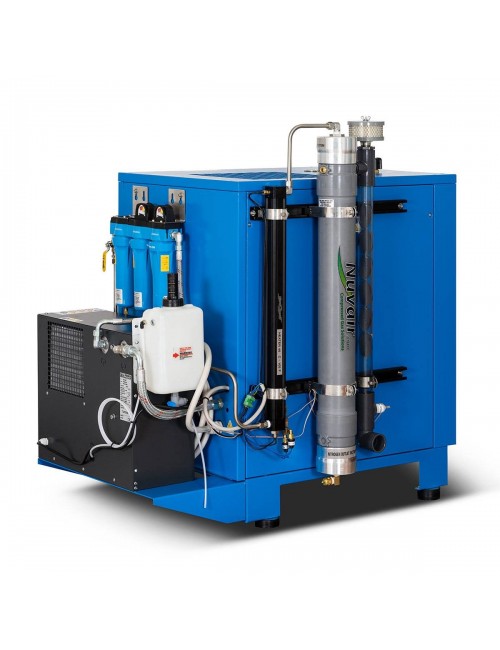

LP 300 NITROX ROTARY

Consult with an expert
Delivery:
Producto fuera de stock. Consultar en los próximos: días de entrega

Data sheet

NITROX DIAPHRAGM
ELECTRIC


Description:

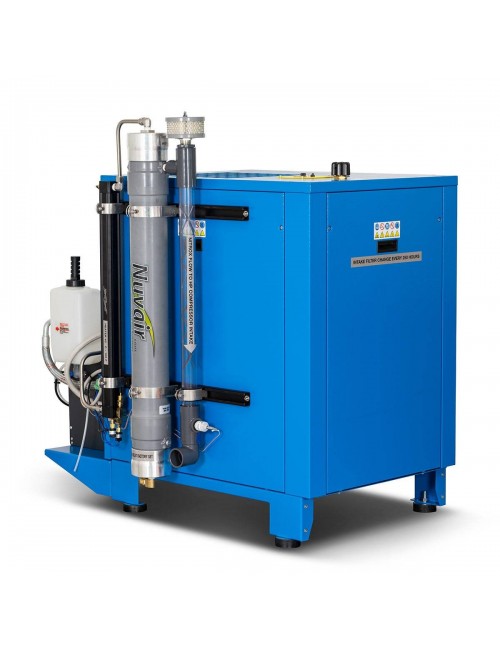

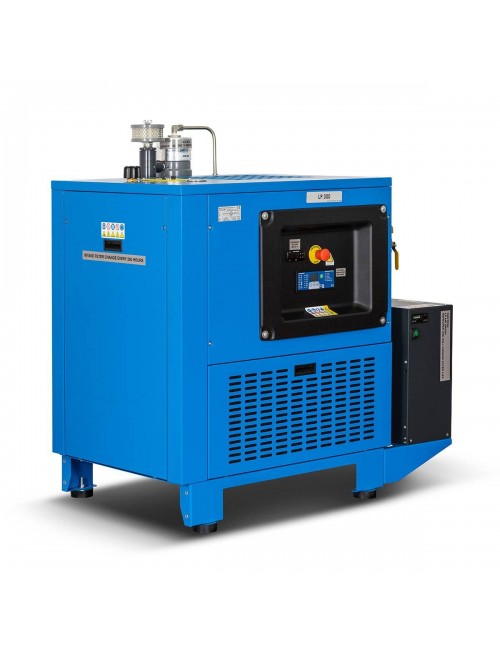

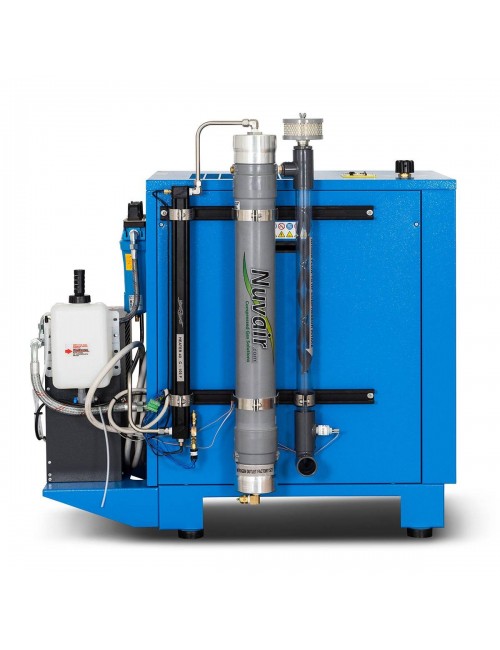

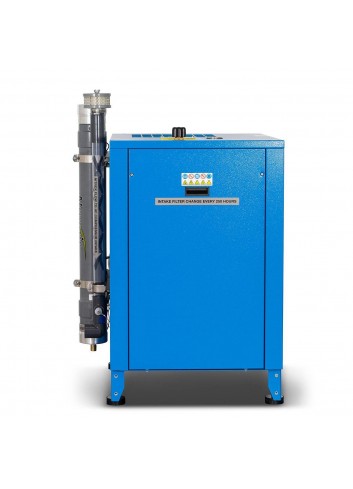

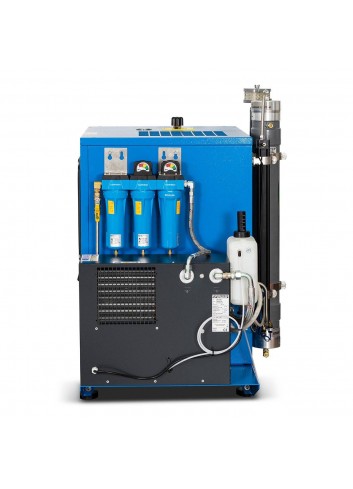

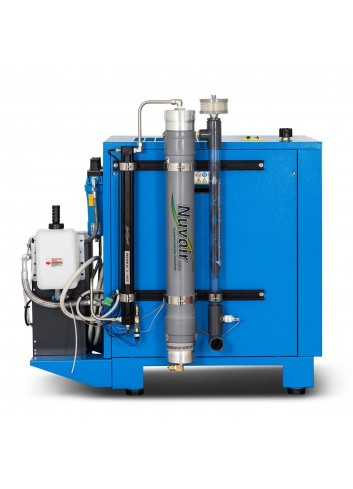

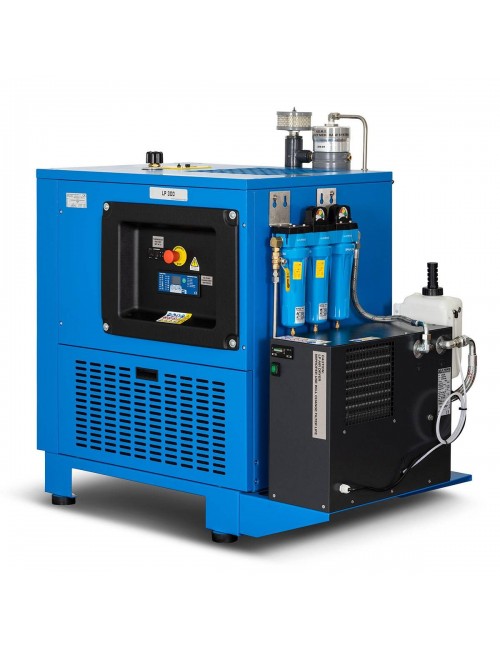

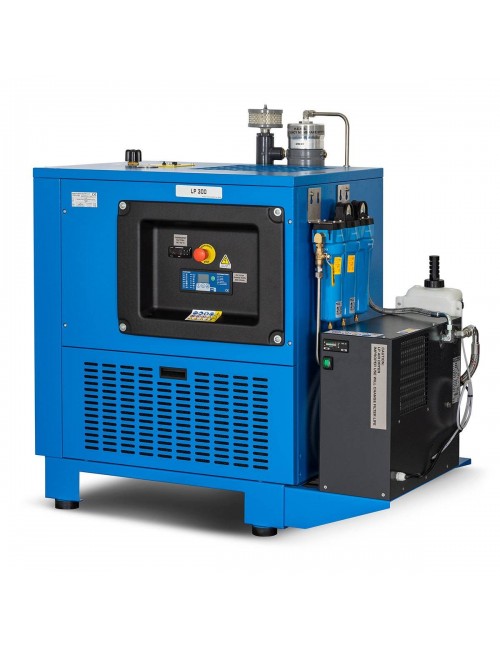

The LP300 ROTARY model consists of an industrial screw compressor that delivers air at a pressure of 12 bar to a membrane that separates nitrogen and oxygen up to a maximum percentage of 40% O2. The enriched air can be compressed at a pressure of 232 bar in combination with a high pressure compressor. The percentage of oxygen obtained at the outlet can be regulated from 22.4% to 40% using a valve directly accessible on top of the compressor. The oxygen analyser allows checking of the correct percentage adjusted by means of the appropriate valve.

STANDARD EQUIPMENT:

  • Automatic condensate drain and autostop
  • Electric switchboard with hourmeter
  • 2 in line analyzers
  • Cabin temperature thermostat/auto shutoff
  • Autostop

PUMPING UNIT

LP 300

FLOW RATE

2 × MCH 16 - 660 l/m - 39,60 m³/h - 23.31 CFM FAD - O2 32%

1 × MCH 23 - 380 l/m - 22,80 m³/h - 13.42 CFM FAD - O2 36%

1 × MCH 16 - 330 l/m - 19,80 m³/h - 11.65 CFM FAD - O2 40%

DRIVEN BY

THREE-PHASE ELECTRIC MOTOR

WORKING PRESSURE

8 bar / 116 psig

DIMENSION (W x H x D)

1260 x 1195 x 850 MM
49,61" x 47,05" x 33,46"

NET WEIGHT APPROX.

256 Kg / 564 lbs

NOISE LpA

68 dB
