LP 250 NITROX ROTARY

LP 250 NITROX ROTARY

€0.00
-10%

LP 250 NITROX ROTARY

Consult with an expert

Delivery:
Producto fuera de stock. Consultar en los próximos: días de entrega


Description:

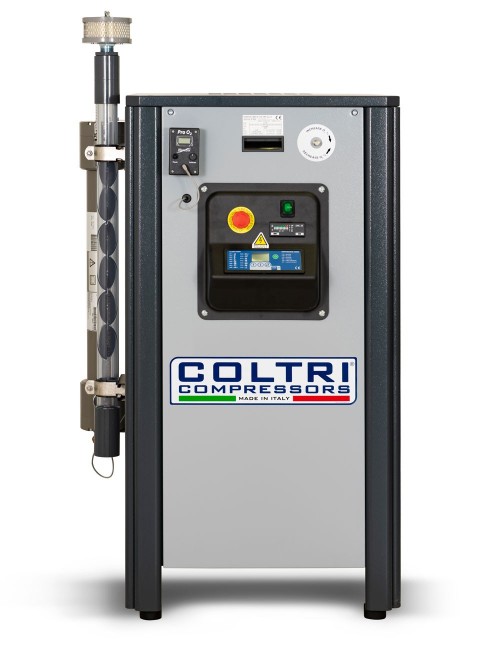

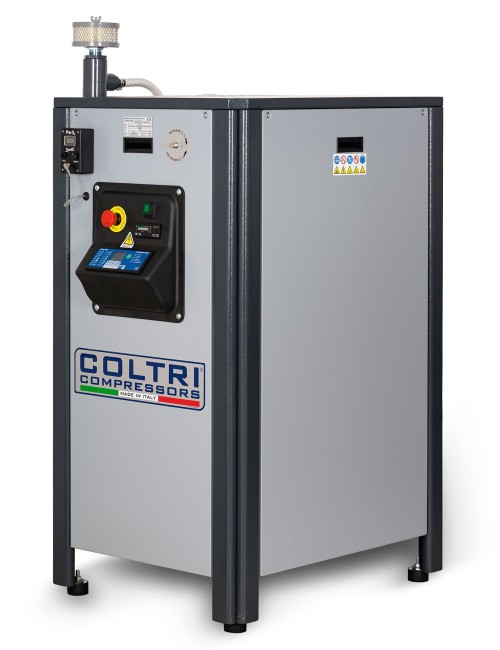

It consists of an industrial screw compressor that delivers air at a pressure of 10 bar to the Parker® membrane. The percentage of oxygen obtained at the outlet can be adjusted from 32% to 36% thanks to a valve accessible on the front side of the compressor. If connected to a compressor with pumping unit 315 (MCH 16), Nitrox at 32% can be obtained up to a pressure of 232 bar. The oxygen analyzer allows you to check the correct percentage, adjusting it through the appropriate valve.


STANDARD EQUIPMENT:

  • Electrical cabinet
  • Automatic condensate drain
  • 2 analyzers
  • Thermostat
  • 1 Parker Enoxy SA 708 oxygen membrane

PUMPING UNIT

LP 250

FLOW RATE

950 l / min - 57 m3 / h - 33.5 CFM

DRIVEN BY

Electric three-phase 400 V - 50 Hz

WORKING PRESSURE

10 bar - 145 PSI

DIMENSION (W x H x D)

75 x 85 x 139 cm
29.5 x 33.5 x 54.7 in
