FILLING PANEL FOR COMPRESSOR WITH CAMS

Reference

Producto fuera de stock. Consultar en los próximos: días de entrega

Data sheet

COMPRESSORS

PANELS

Specific References

Descripción:

Loading panel with 4 outlets to connect to any  Coltri range compressor.

Model with opening/closing cams for each outlet. Includes HP charging hoses.

Combined with an air bank, it can be an ideal configuration for a cylinder filling station.

By means of a tubbing type installation, with this panel it is possible to move the compressor loading outlet further away from the machine.

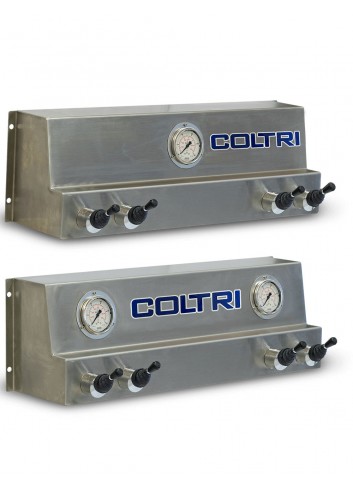

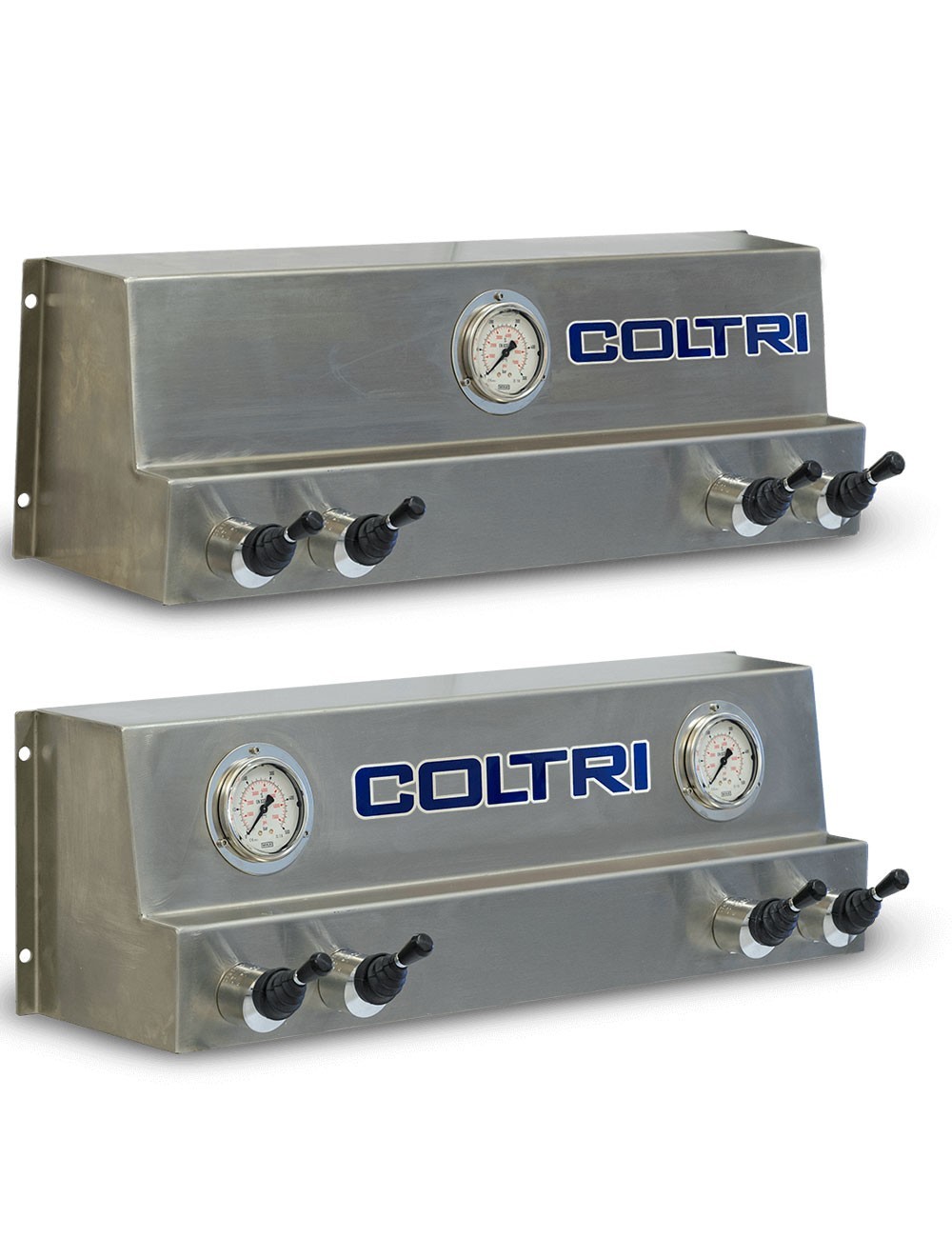

The panels can be ordered with different pressure configurations:

• A single output pressure (232 B or 300 B) for the 4 outputs, with a single control pressure gauge.
• Two output pressures 2 + 2 (232 B and 300 B) 2 outputs for each pressure, with two control pressure gauges, one for each pressure circuit.

For possible configuration options, do not hesitate to consult our experts.
