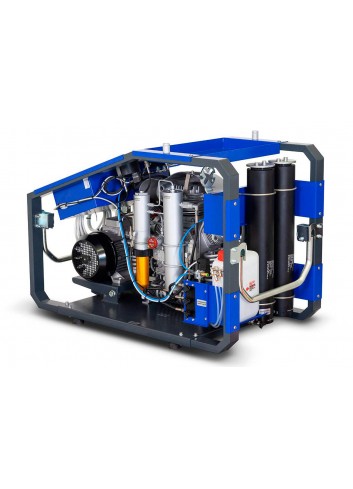

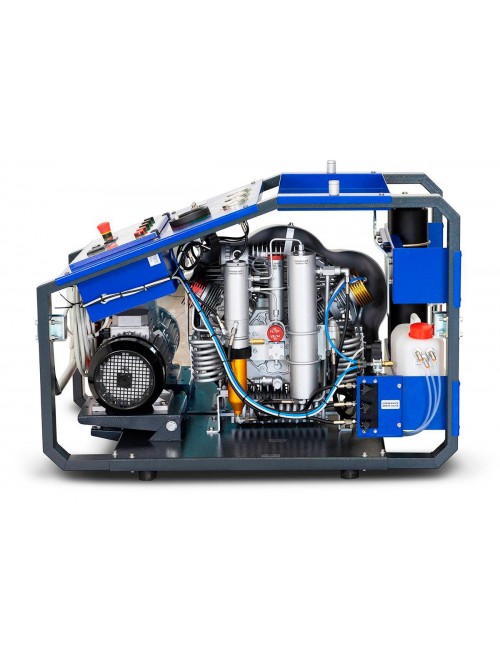

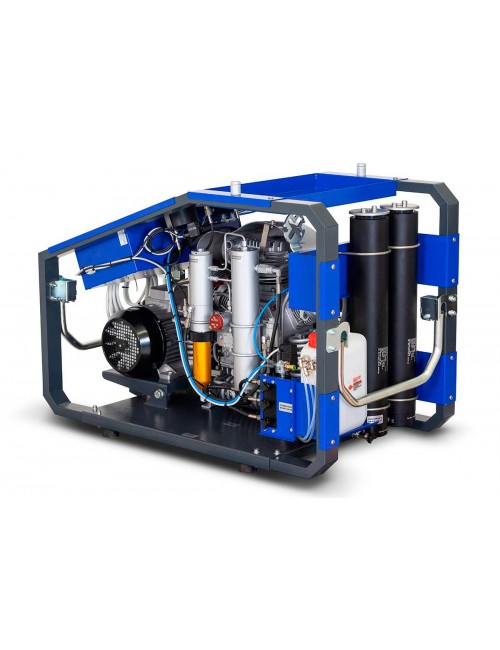

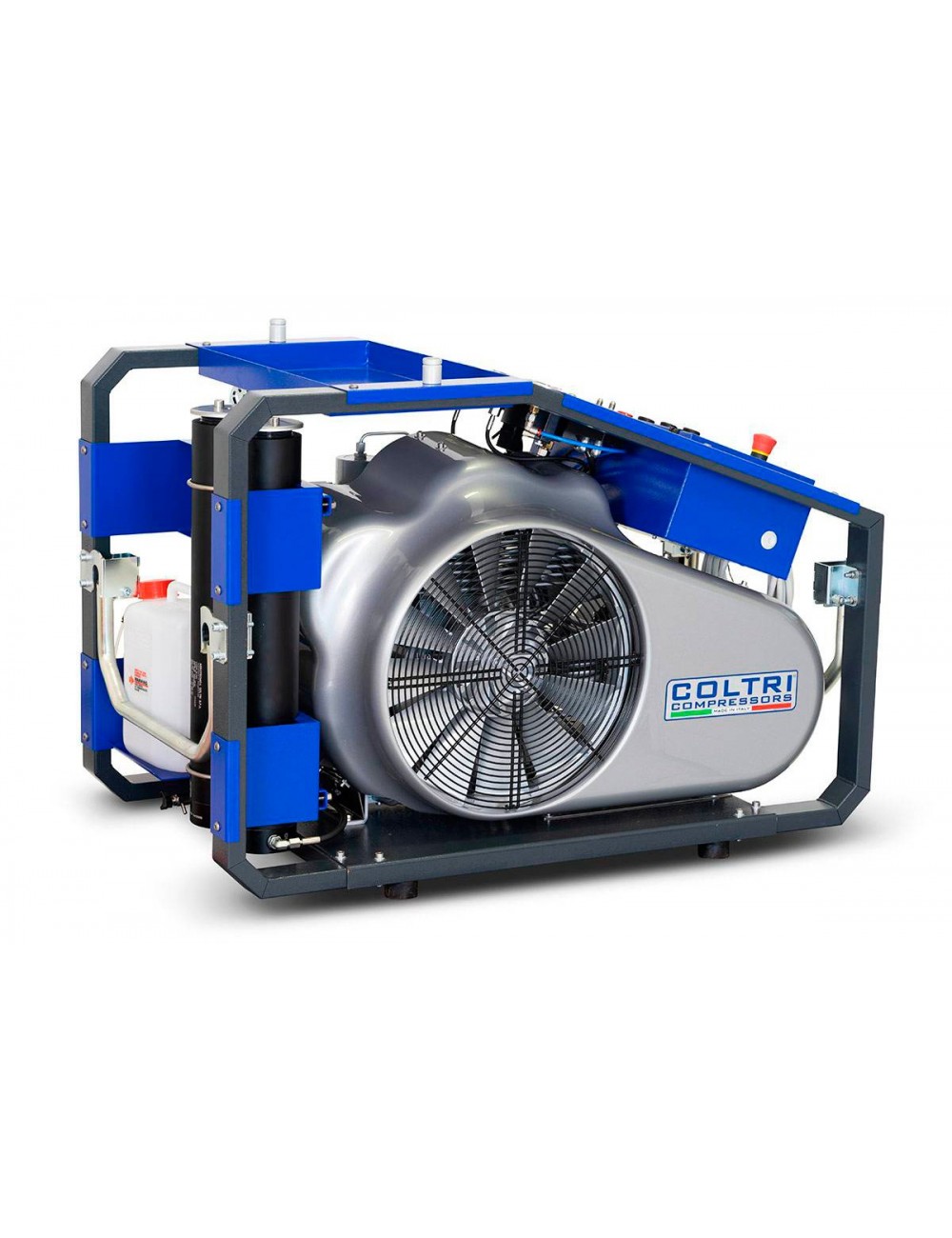

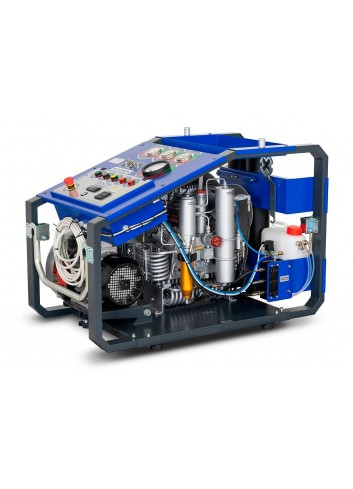

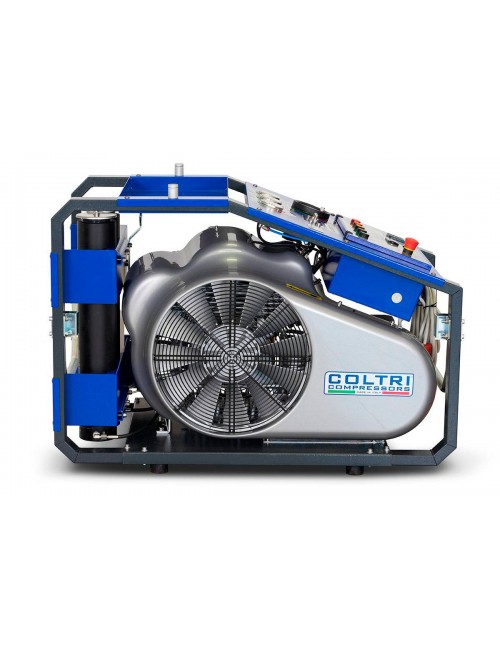

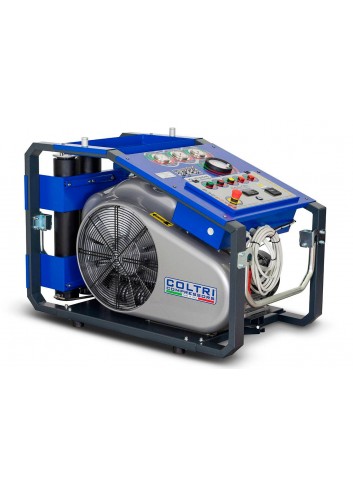

345 - 380 ETS ERGO TPS COMPRESSOR (Threephasic)
Description:
345 - 380 ETS ETS Ergo TPS Breathing Air Compressor has a charging rate of 345 - 380 litres per minute.
Compactness, performance, robustness and transportability are the main features of the ERGO TPS breathable air compressors. Equipped with four different pumping units (345 - 380), all in TPS (Tropical Plus Superdry) version and powered by three-phase electric motors.

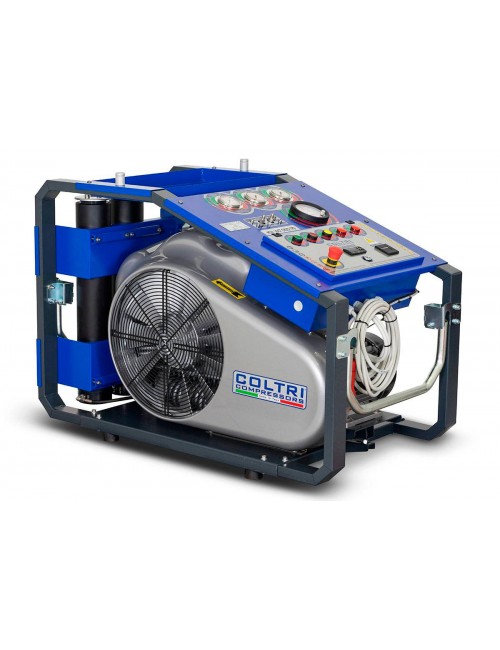

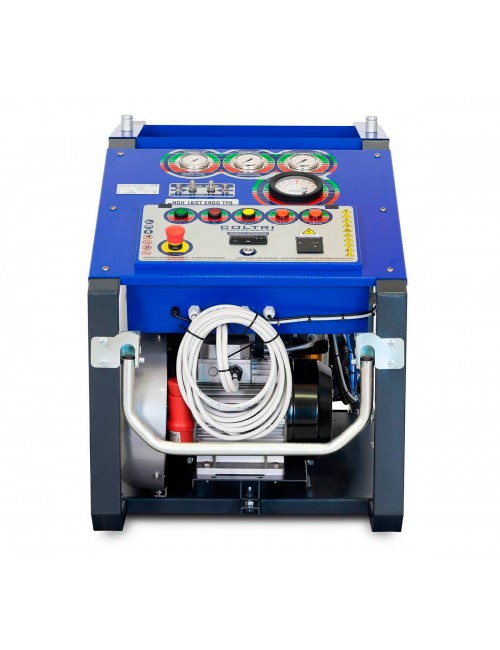

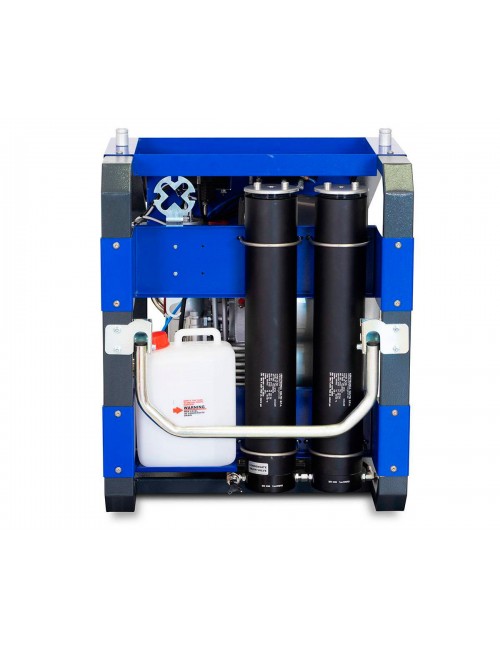

The compressors have a monitoring system panel including pressure gauges, autostop with adjustable pressure switch, automatic condensate drain and and a phase control for rotation direction. The models of this series have two connections for high pressure hoses (from 232 to 330 bar) and an improved filtering system with two Hyperfilters.
STANDARD EQUIPMENT:
- Automatic condensate discharge and automatic swich off
- Pressure gauges
- Thermostat
- Rotation direction automation control
- Oil level check
- Hyperfilter
- Electric switchboard with hourmeter
- 2 filling hoses 120 cm length
- 2 valves BC for 232 bar version (to chosse)
- 2 valves BC for 300 bar version (to choose)
PUMPING UNIT | 345 ETS | 380 ETS |
---|---|---|
CHARGING RATE |
345 L/min - 20.70 m³/h |
380 L/min - 22.80 m³/h |
DRIVEN BY | THREE-PHASE ELECTRIC MOTOR | THREE-PHASE ELECTRIC MOTOR |
FILLING TIME** | 5’40" | 5’10" |
WORKING PRESSURE | 232 - 330 bar / 3300 - 4700 psig | 232 - 330 bar / 3300 - 4700 psig |
POWER | (230/400 V - 50/60 Hz) | (230/400 V - 50/60 Hz) |
DIMENSION (Wx H x D) | 77 x 112 x 63 cm 30.31” x 54.09” x 24.80” |
77 x 112 x 63 cm 30.31” x 54.09” x 24.80” |
NET WEIGHT APPROX. | 184 Kg / 406 lbs | 184 Kg / 406 lbs |
NOISE LpA | 83 dB | 83 dB |
**FILLING TIME CYLINDER 10 l-0/200 bar (measured by filling cylinder from 0 to 200 bar ±5%)
