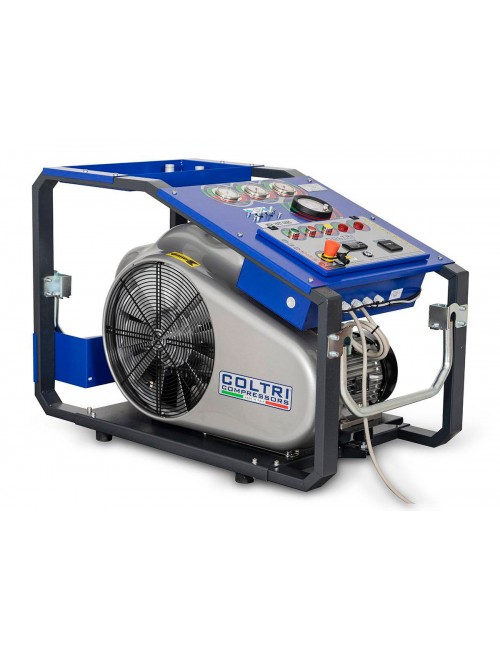

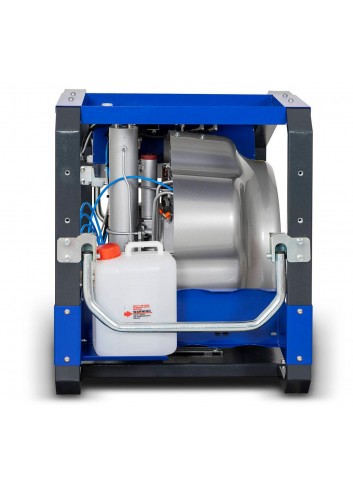

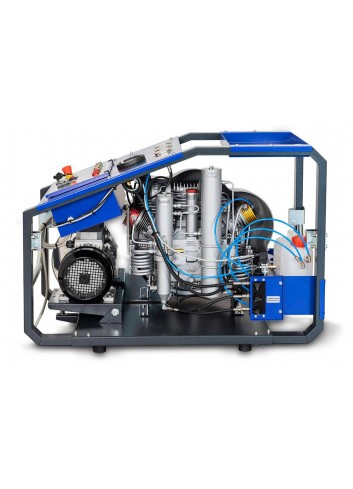

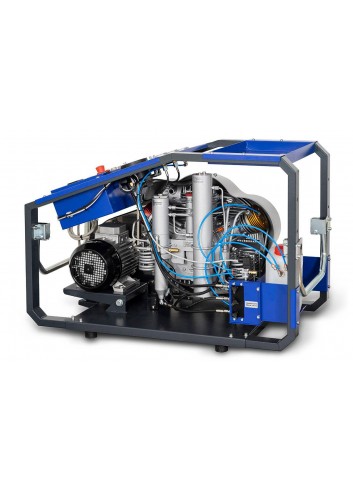

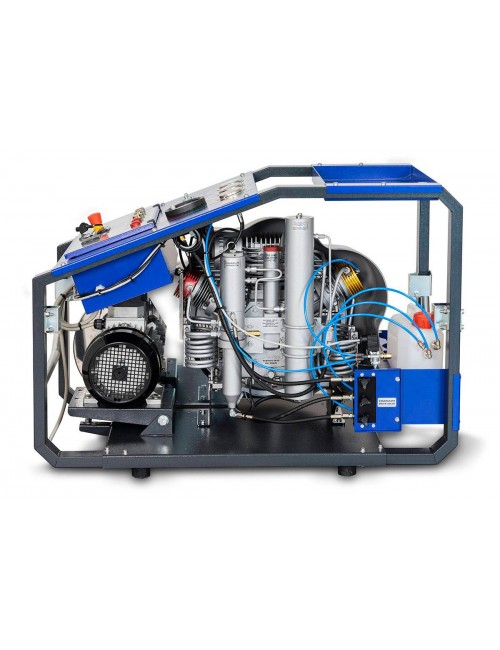

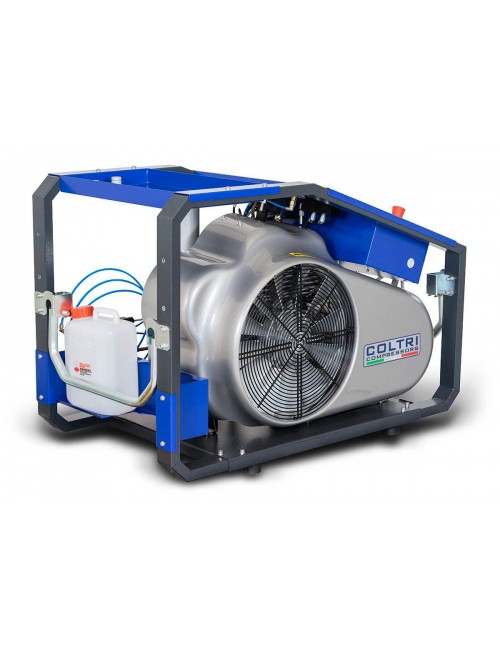

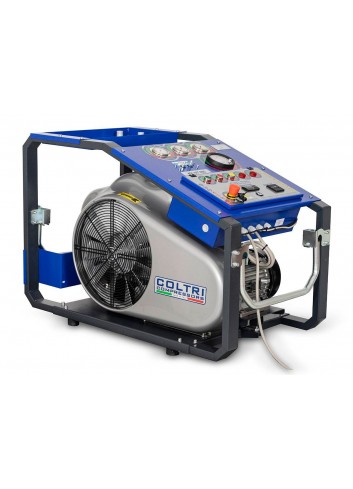

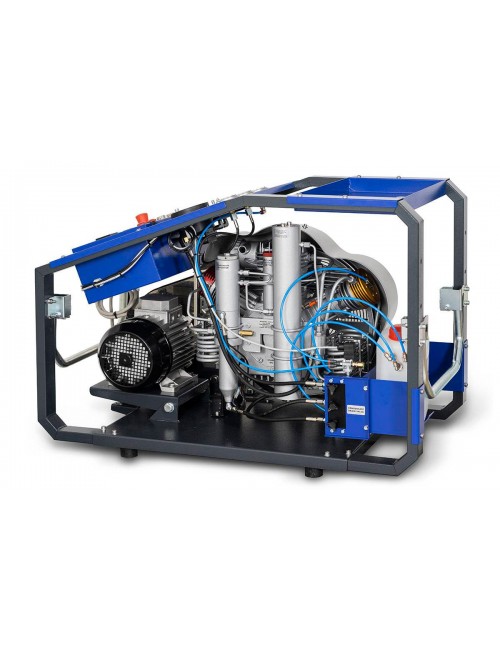

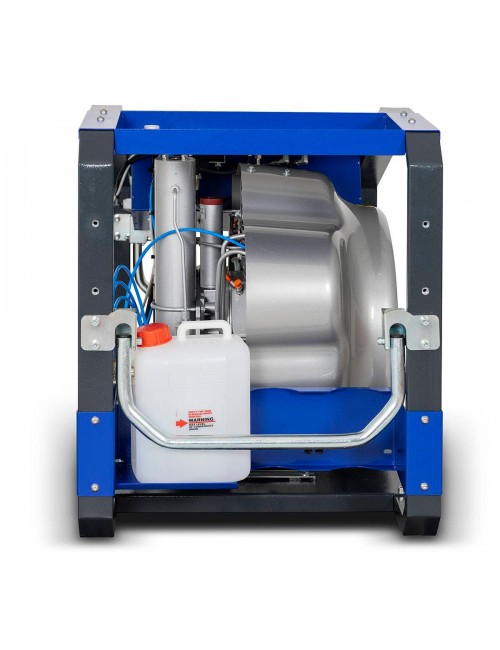

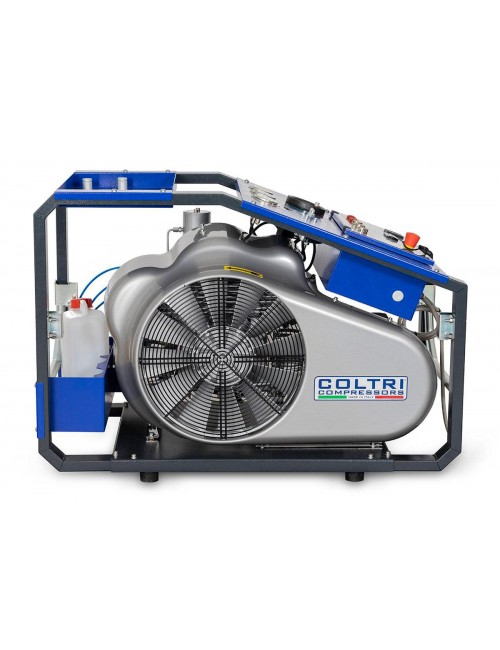

210 - 270 EM ERGO COMPRESSOR (Monophasic)
Description:
210-270 EMS Ergo Breathing Air Compressor has a charging rate of 210-270 litres per minute.
The ERGO model stands out for its robustness, portability and great efficiency. Equipped with two different pumping units (210 - 270 depending on the specific model) and powered by three-phase electric motors.

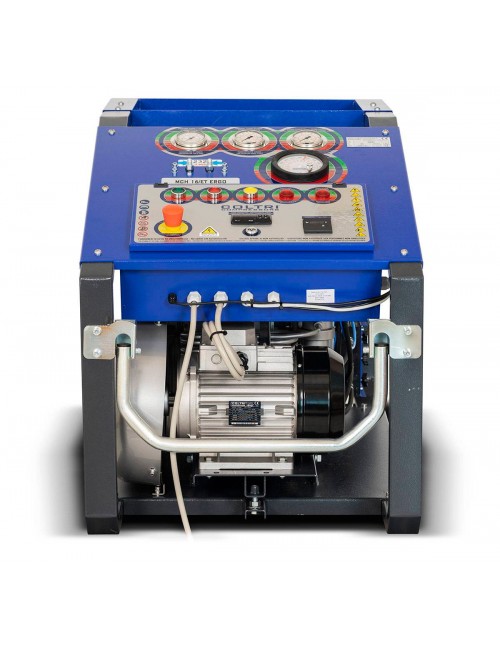

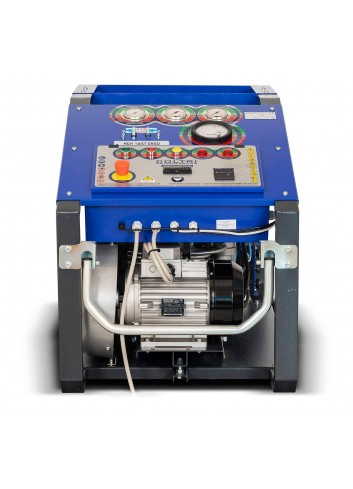

Each ERGO compressor has a monitoring system panel that includes an interstage pressure gauge, autostop with adjustable pressure switch, automatic condensate drain and a phase control for rotation direction. The models in this series have two connections for high pressure hoses (from 232 to 330 bar) and a Maxifilter system.
The remote filling panel is available as an optional extra.
STANDARD EQUIPMENT:
- Automatic condensate discharge and automatic swich off
- Pressure gauges
- Thermostat
- Rotation direction automation control
- Oil level check
- Maxifilter
- Electric switchboard with hourmeter
- 2 filling hoses 120 cm length
- 2 valves BC for 232 bar version (to chosse)
- 2 valves BC for 300 bar version (to choose)
PUMPING UNIT | 210 EM | 270 EM |
---|---|---|
CHARGING RATE |
210 L/min - 12.60 m³/h |
270 L/min - 16.20 m³/h |
DRIVEN BY | MONO-PHASE ELECTRIC MOTOR | MONO-PHASE ELECTRIC MOTOR |
FILLING TIME** | 8’30" | 6’20" |
WORKING PRESSURE | 232 bar / 3300 psi | 232 bar / 3300 psi |
POWER | 4 Kw (230 V, 50 Hz) | 5.5 Kw (230 V, 50 Hz) |
DIMENSION (Wx H x D) | 77 x 112 x 63 cm 30.31” x 54.09” x 24.80” |
77 x 112 x 63 cm 30.31” x 54.09” x 24.80” |
NET WEIGHT APPROX. | 159 Kg / 350 lbs | 147 Kg / 324 lbs |
**FILLING TIME CYLINDER 10 l-0/200 bar (measured by filling cylinder from 0 to 200 bar ±5%)
