235 - 315 ETS ERGO COMPRESSOR (Threephasic)
€0.00
-10%
235 - 315 ETS ERGO COMPRESSOR (Threephasic)
Consult with an expert
Producto fuera de stock. Consultar en los próximos: días de entrega
Data sheet
STATIC- ELECTRIC
Specific References
Description:

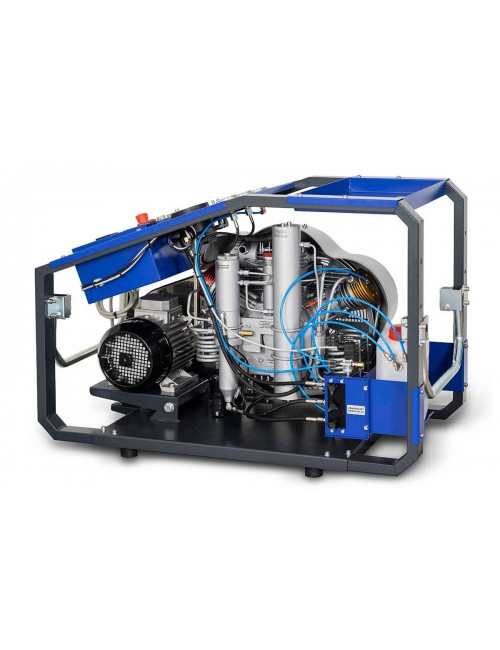

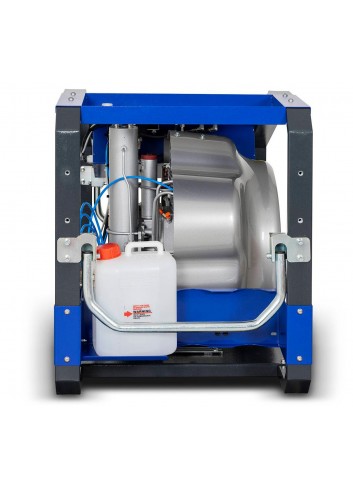

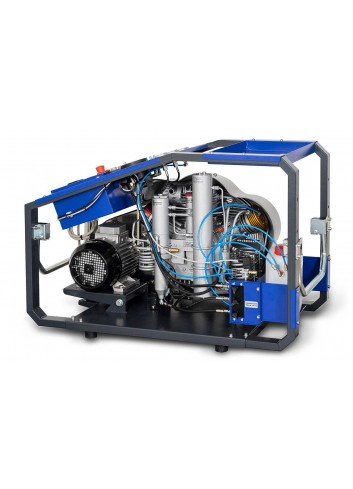

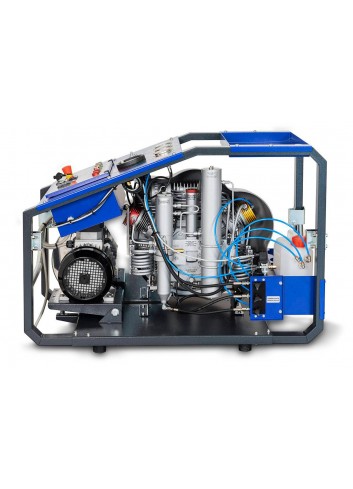

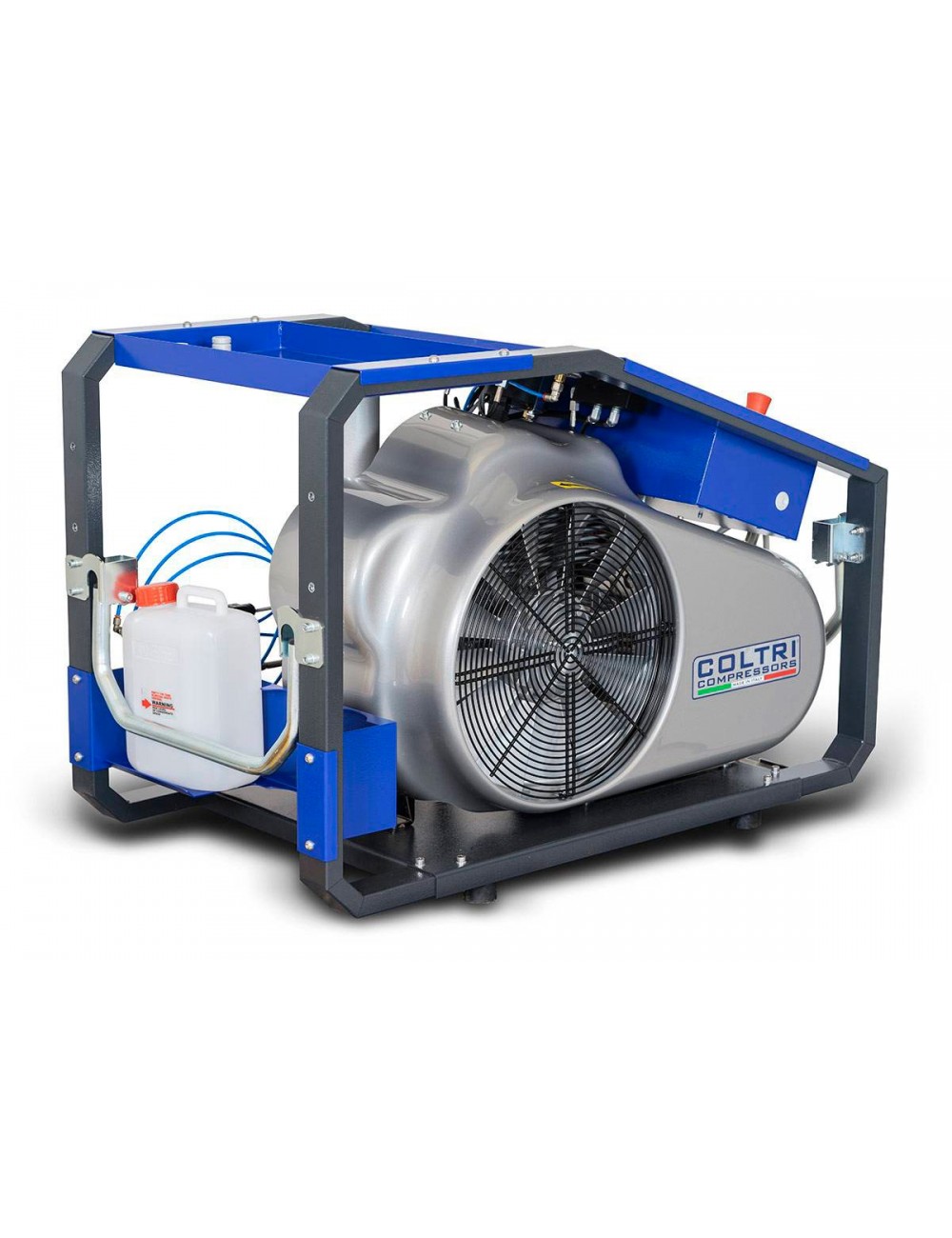

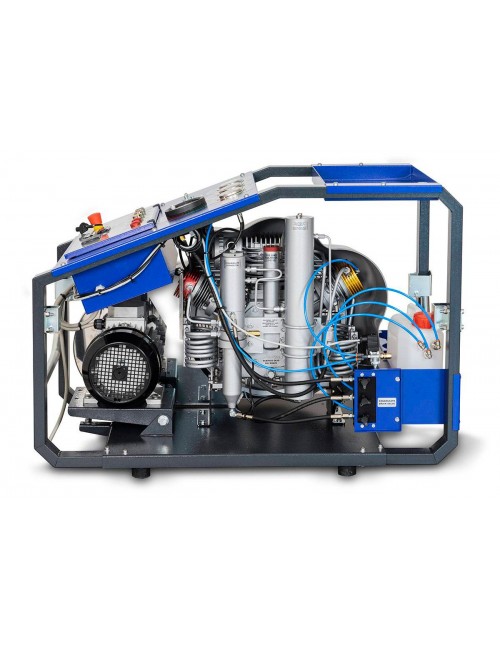

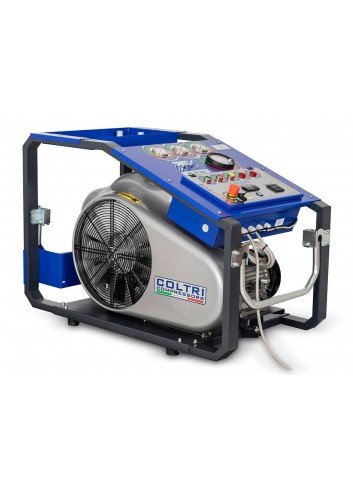

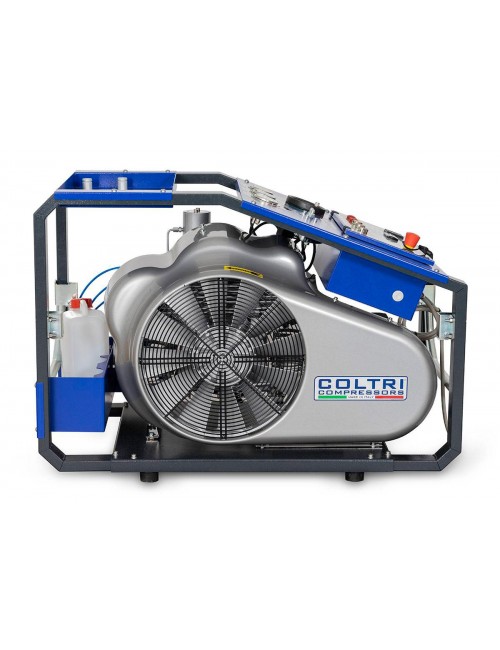

235 - 315 ETS Ergo Breathing Air Compressor has a charging rate of 235 - 315 litres per minute.
The ERGO model stands out for its robustness, portability and great efficiency. Equipped with two different pumping units (235 - 315 ETS depending on the specific model) and powered by three-phase electric motors.

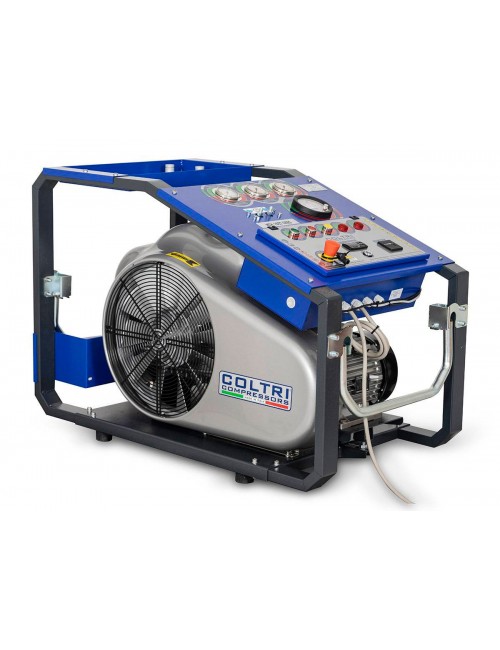

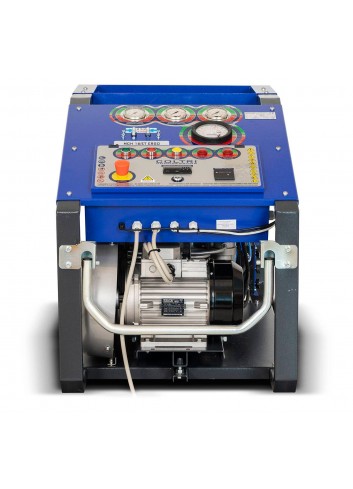

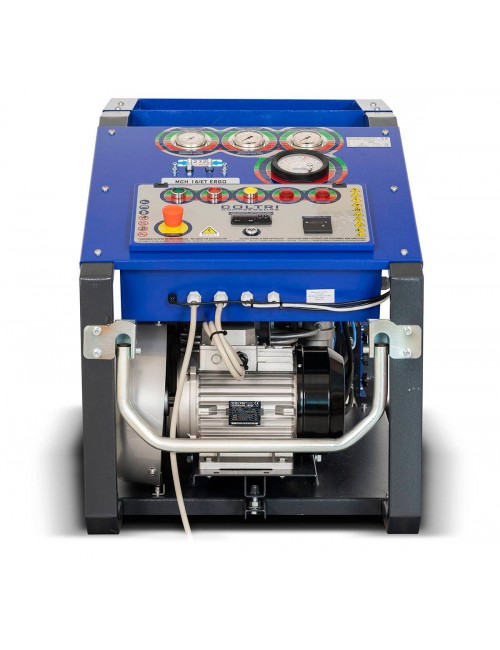

Each ERGO compressor has a monitoring system panel that includes an interstage pressure gauge, autostop with adjustable pressure switch, automatic condensate drain and a phase control for rotation direction. The models in this series have two connections for high pressure hoses (from 232 to 330 bar) and a Maxifilter system.
The remote filling panel is available as an optional extra.
STANDARD EQUIPMENT:
- Automatic condensate discharge and automatic swich off
- Pressure gauges
- Thermostat
- Rotation direction automation control
- Oil level check
- Maxifilter
- Electric switchboard with hourmeter
- 2 filling hoses 120 cm length
- 2 valves BC for 232 bar version (to chosse)
- 2 valves BC for 300 bar version (to choose)
| PUMPING UNIT | 235 ETS | 315 ETS |
|---|---|---|
| CHARGING RATE |
235 L/min - 14.10 m³/h |
315 L/min - 18.90 m³/h |
| DRIVEN BY | THREE-PHASE ELECTRIC MOTOR | THREE-PHASE ELECTRIC MOTOR |
| FILLING TIME** | 8’30" | 6’20" |
| WORKING PRESSURE | 232 - 330 bar / 3300 - 4700 psig | 232 - 330 bar / 3300 - 4700 psig |
| POWER | (230/400 V - 50/60 Hz) | (230/400 V - 50/60 Hz) |
| DIMENSION (Wx H x D) | 77 x 112 x 63 cm 30.31” x 54.09” x 24.80” |
77 x 112 x 63 cm 30.31” x 54.09” x 24.80” |
| NET WEIGHT APPROX. | 159 Kg / 351 lbs | 169 Kg / 373 lbs |
| NOISE LpA | 80.7 dB | 82.3 dB |
**FILLING TIME CYLINDER 10 l-0/200 bar (measured by filling cylinder from 0 to 200 bar ±5%)
Coltri Ergo 235 - 315 ETS Scuba Diving High Pressure Compressor Threephasic: The ERGO model stands out for its robustness, portability and great efficiency. Equipped with three different pumping units (235 - 315 ETS depending on the specific model) and powered by three-phase electric motors. Each ERGO compressor has a monitoring system panel that includes an interstage pressure gauge, autostop with adjustable pressure switch, automatic condensate drain and a phase control for rotation direction.
