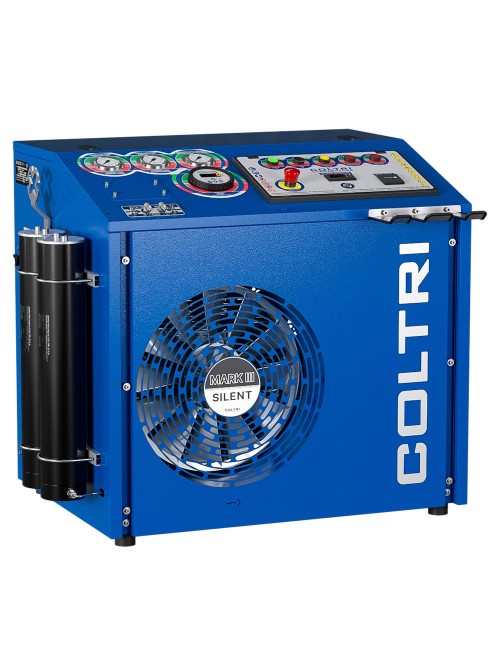

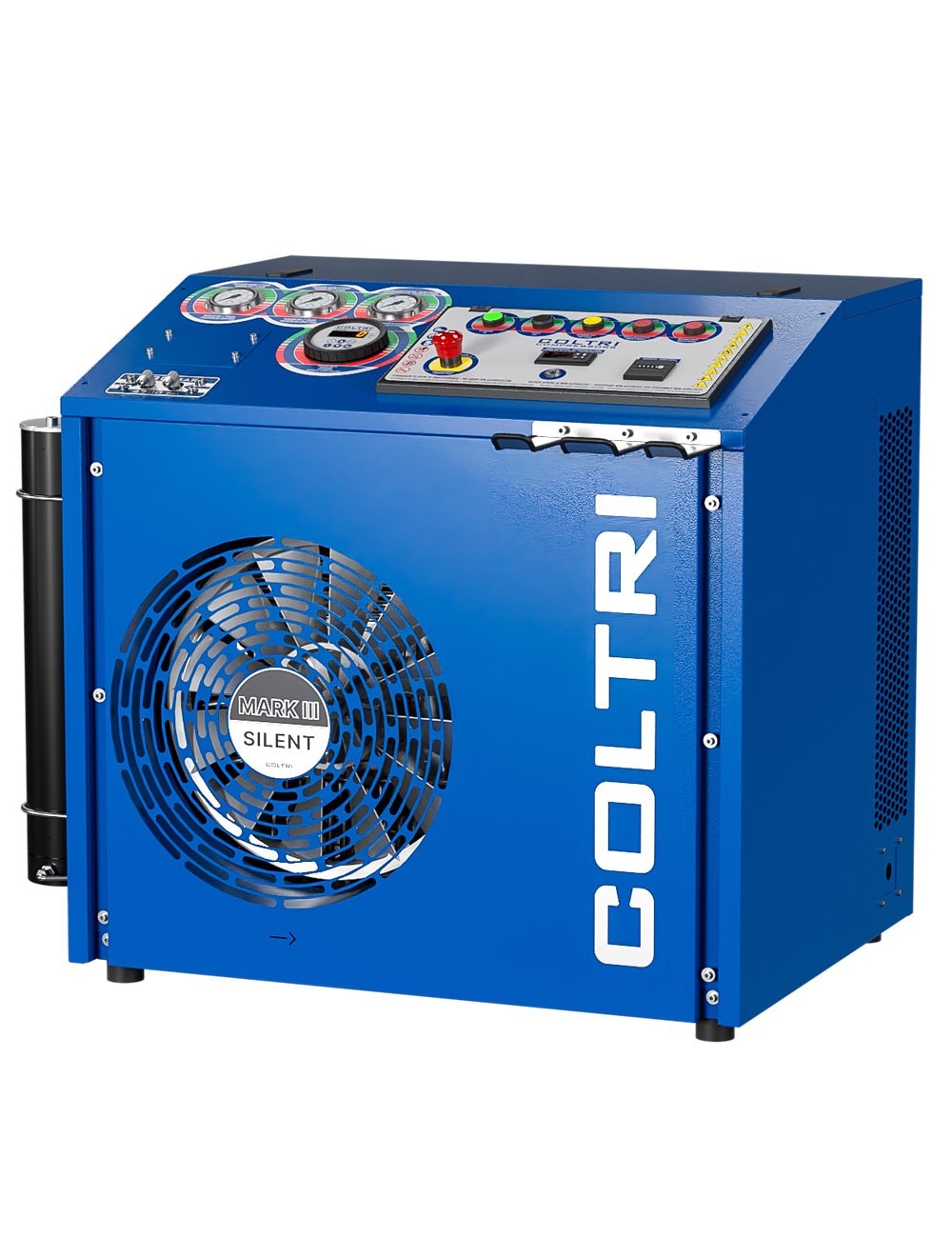

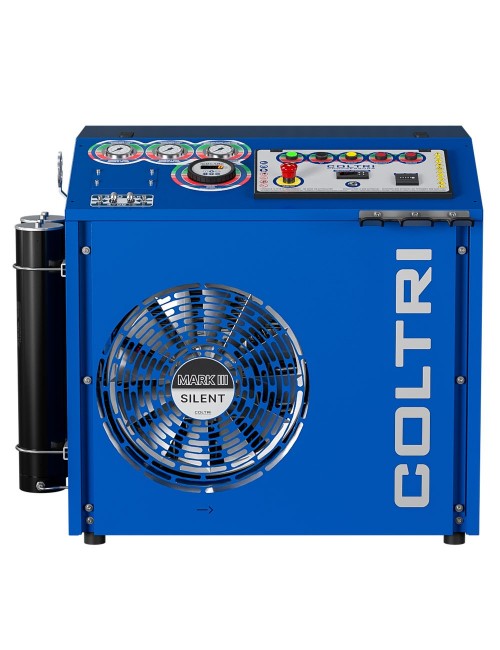

235 - 315 ET MARK III SILENT TPS COMPRESSOR (Threephasic)

235 - 315 ET MARK III SILENT TPS COMPRESSOR (Threephasic)

€9,458.74
-10%

  • Save 10%

235 - 315 ET MARK III SILENT TPS COMPRESSOR (Threephasic)

Consult with an expert

Delivery:
Producto fuera de stock. Consultar en los próximos: días de entrega


Description:

Ideal for intensive use in hot, poorly ventilated environments or in tropical countries. Designed with an improved cooling system and a filtering system with two Hyperfilters, these compressors are powered by an electric motor and equipped with four different pumping units, all in the TPS (Tropical Plus Superdry) version. They are available with function monitoring systems and electrical panel for automatic compressor shutdown.

Purification at the highest level: Placed after the last compressor separator and before the pressure holding valve, the Hyperfilter purification system enables reliable treatment of the breathing air according to DIN EN 12021¹ when using original filter cartridges. The separator present between the 2nd and 3rd stage of the purification circuit allows to extract the greatest possible humidity. The filtering capacity with inlet air at 20 ° C and 200 bar is 4300 m³.

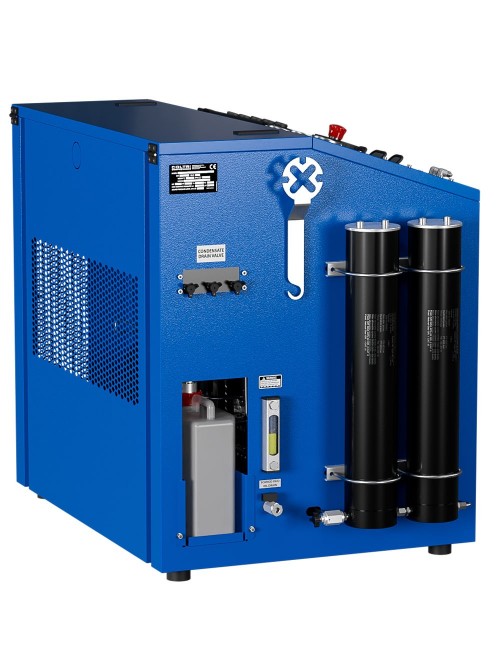

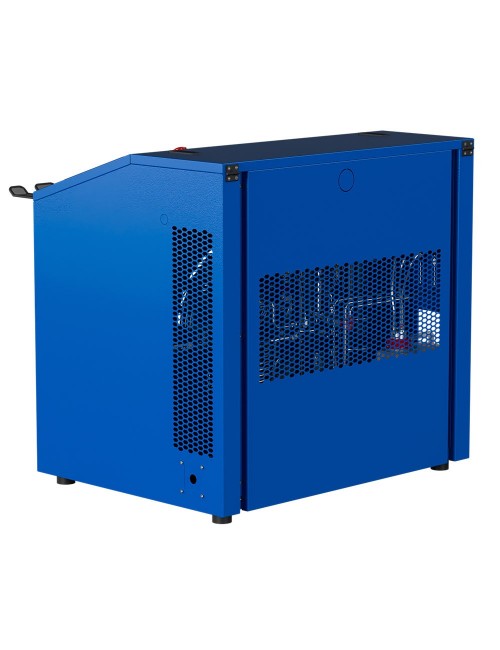

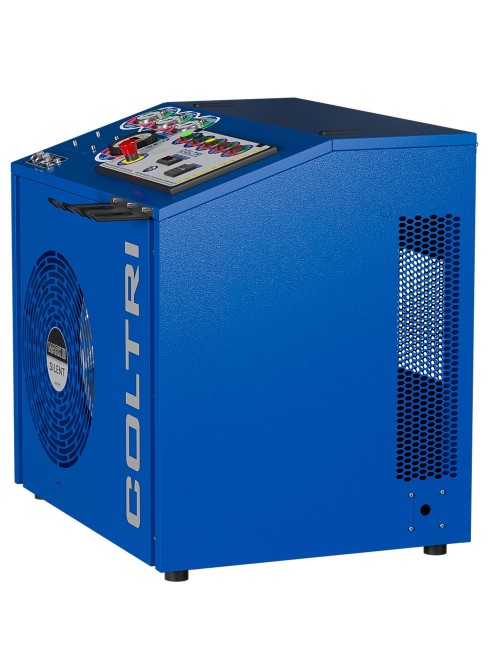

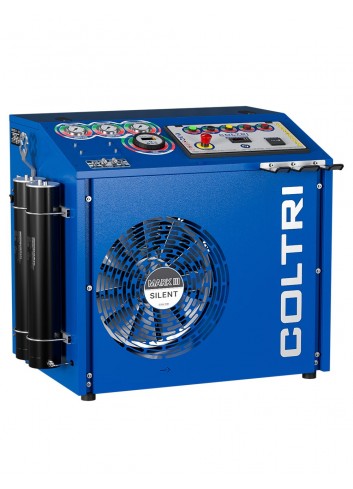

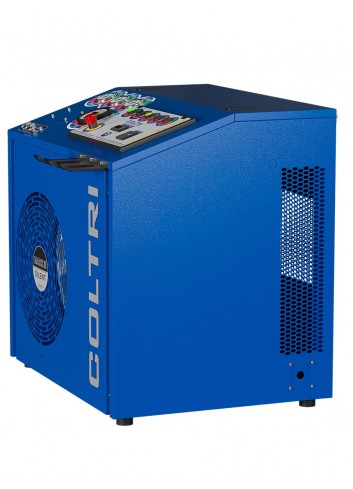

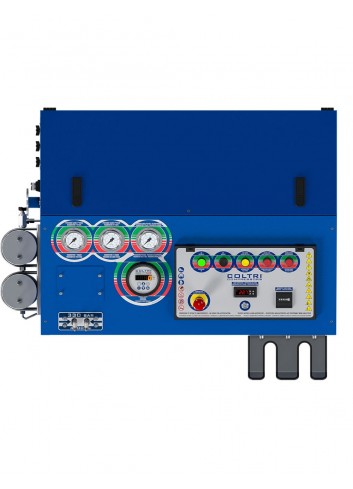

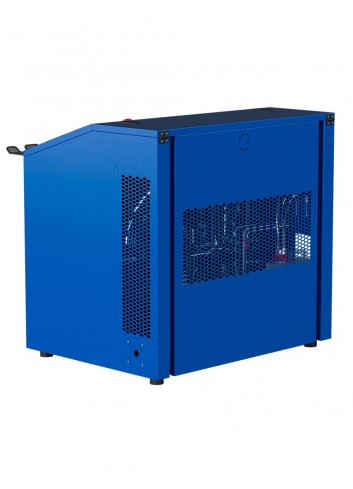

Chassis: Silenced cab chassis designed and built to facilitate maintenance operations. The tilting motor-holder plate ensures constant V-belt tension. Compressor management and maintenance are facilitated by important devices and tools: the oil level and drain shown outside, the control console equipped with inter-stage pressure gauges, the internal temperature indicator, the presence alarm and incorrect phase sequence, the oil lack alarm and the start stop and manual condensate drain commands.

The highest air quality is the goal of a Coltri compressor: Air purity and quality are two essential characteristics of our compressors. The air you breathe from Coltri compressors complies with the EN 12021: 2014 standards: this is why you can work, have fun and exercise with them in absolute safety.

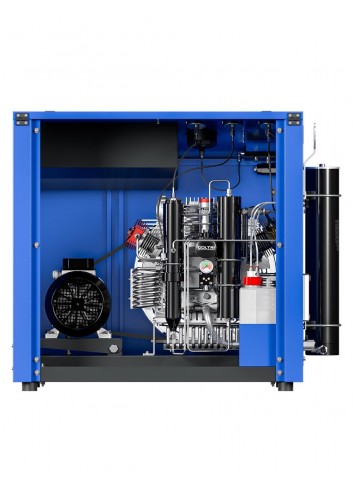

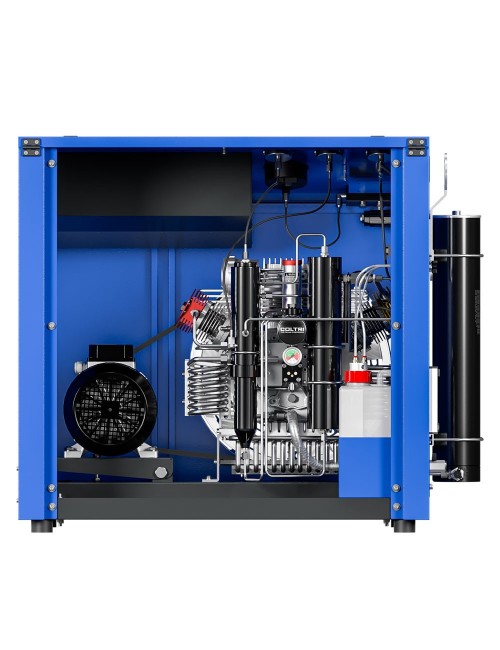

3-STAGE HIGH PRESSURE PUMPING UNIT

  • Monobloc in aluminum,
  • Gooseneck in forged steel
  • Forced lubrication on 2nd and 3rd stage cylinders by gear pump
  • Oversized interstage cooling pipes
  • Forged aluminum connecting rods
  • Main roller bearings
  • Roller connecting rod bearings
  • 1st and 2nd stage cylinders in aluminum with hard nicasil coating
  • 2nd and 3rd stage slide guide cylinders in aluminum with hard nicasil coating
  • 3rd stage cylinder in special treated steel.
  • Stainless steel intake and exhaust valves
  • Interstage cooling pipes in stainless steel
  • Separator after the 2nd and 3rd stage
  • Safety valves after each stage
  • Prepared for Hyperfilter filter system
  • Oil filtration
  • Double final separator

ELECTRICAL CABINET

  • ON / OFF switch with motor protection switch.
  • Digital electronic pressure switch that stops the compressor at the final pressure.
  • Drainage of all separators between the individual stages and also of the final separator during compressor operation
  • Timer for automatic condensate drain.
  • Integrated no-load start (automatic drain every time the unit is switched off).
  • 5 liter condensate collection tank, with silencer; capacity of about 3 liters, for the ecological disposal of condensate.

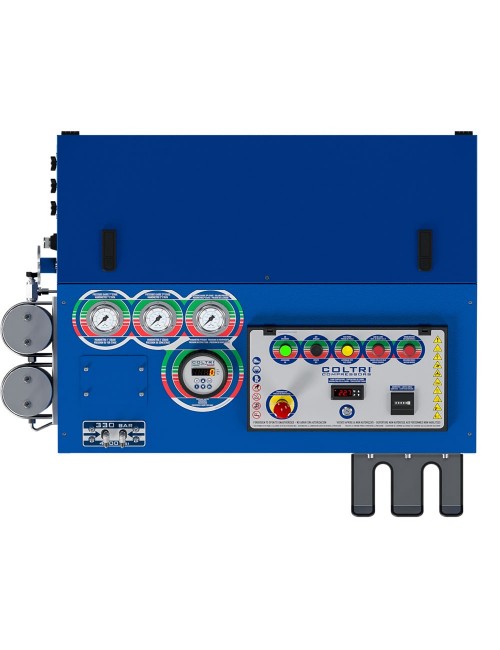

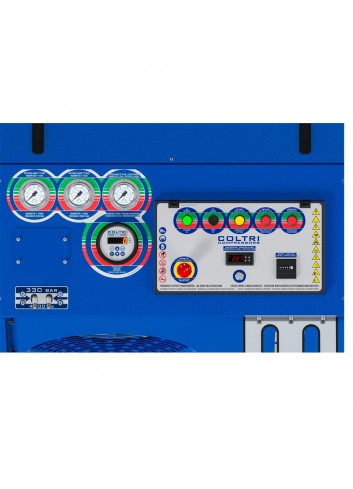

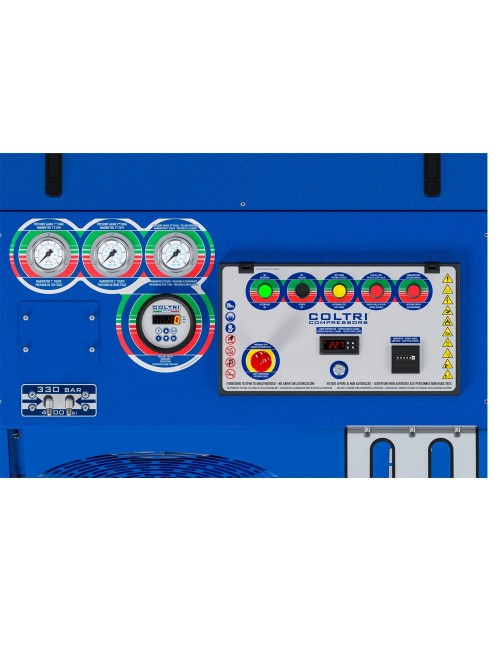

  • Interstage pressure gauges display the working pressure for the individual compression stages. This pressure information allows you to check the tightness of the valves (inlet and outlet) of each stage and to quickly identify potential sources of failure.


STANDARD EQUIPMENT:

  • 2 Cylinder connections to choose from DIN 232, DIN 300 or INT / YOKE 232 bar
  • 2 filling hoses 1.2m long
  • Pressure maintenance valve
  • Interstage control gauges
  • Double PED certified Hyperfilter filter system
  • Cabin internal temperature with automatic switch-off
  • Automatic condensate drain
  • Automatic direction of rotation control
  • Electronic pressure switch with automatic shutdown
  • Oil level control with automatic shutdown
  • Oil pump with filter and pressure gauge
  • Automatic condensate drain with conveyor system in the tank
  • Frame color Blue RAL 5002

PUMPING UNIT

235 ET

315 ET

CHARGING RATE

235 L/min-14,1 m³/h
8,3 CFM FAD

315 L/min-18,9 m³/h
11,1 CFM FAD

DRIVEN BY

THREE-PHASE ELECTRIC MOTOR

THREE-PHASE ELECTRIC MOTOR

FILLING TIME**

8’30”

6’20”

WORKING PRESSURE

232 - 420 bar / 3300 - 6100 psi

232 - 420 bar / 3300 - 6100 psi

POWER

4 Kw (230/400 V - 50/60 Hz)

(440/480 V - 60 Hz)

5,5 Kw (230/400 V - 50/60 Hz)

(440/480 V - 60 Hz)

DIMENSION (W x H x D)

112 x 73 x 91 cm
44.1 “x 28.7″ x 38.8 ”

92 x 88 x 61 cm
44.1 “x 28.7″ x 38.8 ”

NET WEIGHT APPROX.

181 Kg / 299 lbs

191 Kg / 421 lbs

NOISE LpA

95 dB

95 dB

RPM

1240

1600


**FILLING TIME CYLINDER 10 l-0/200 bar (measured by filling cylinder from 0 to 200 bar ±5%)
