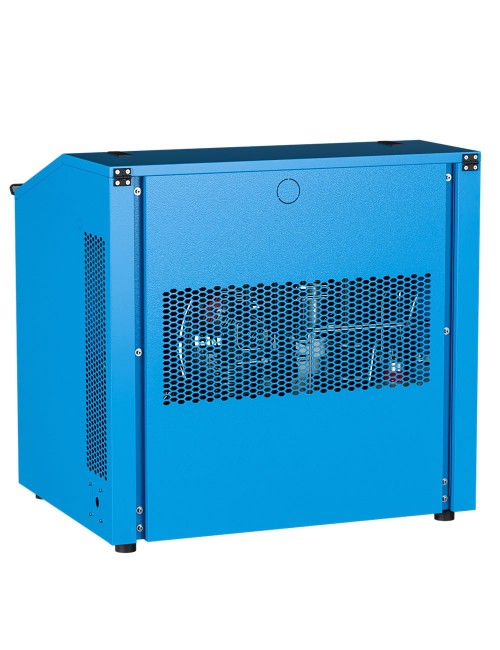

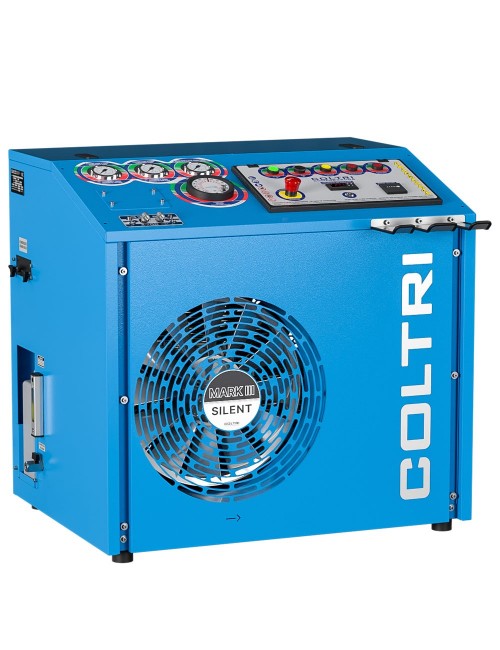

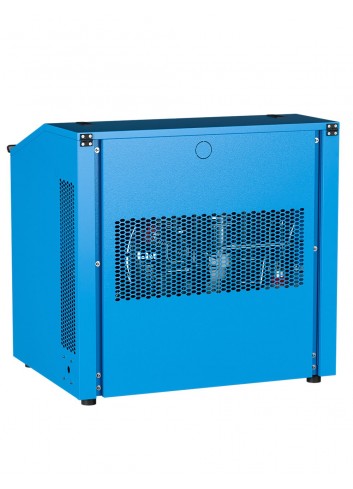

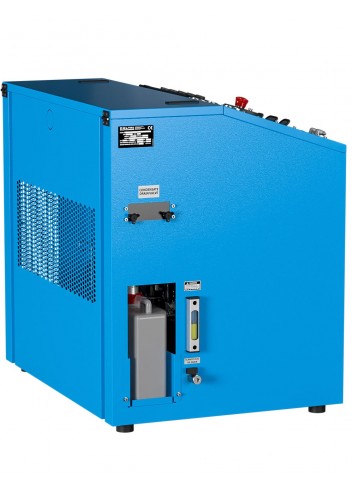

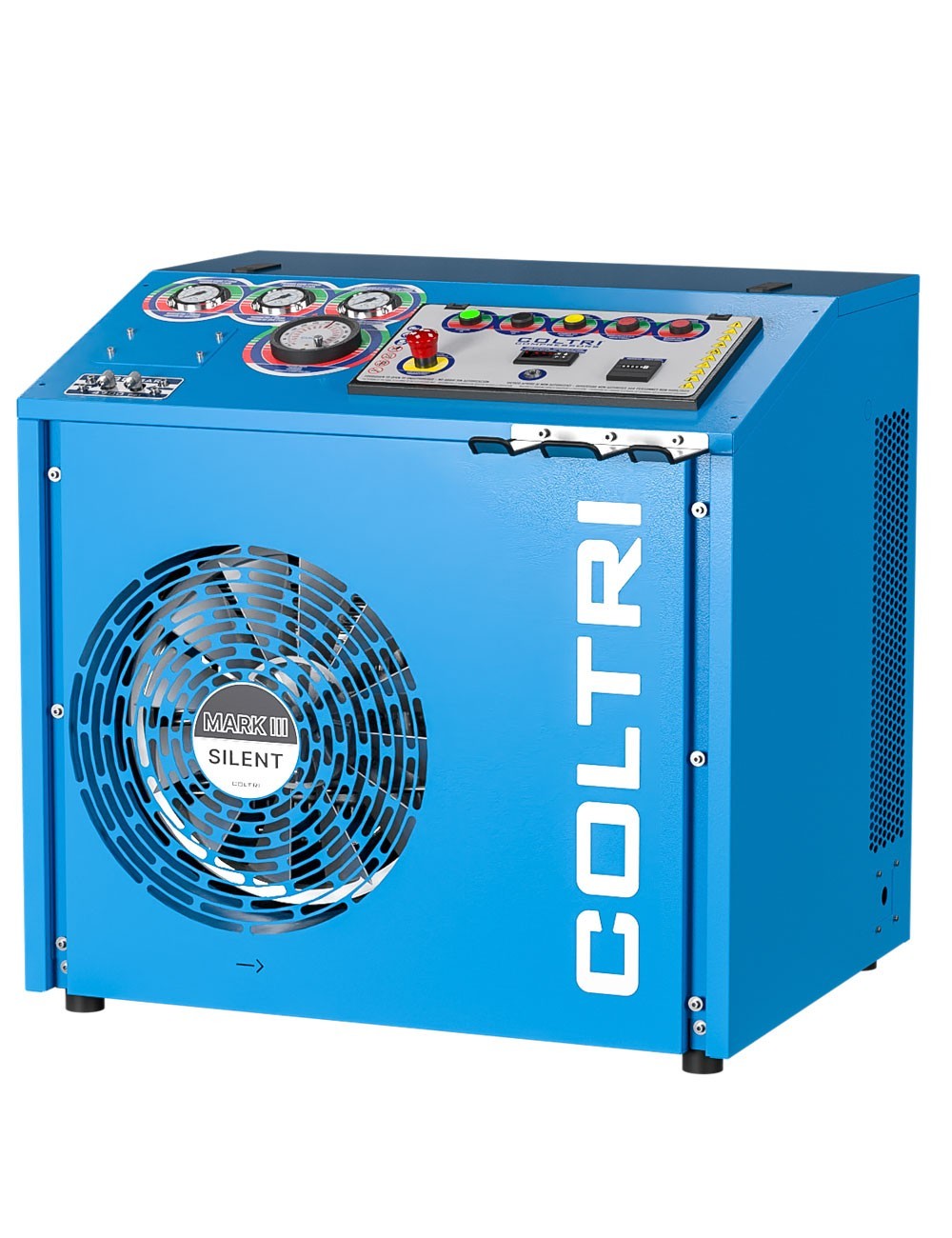

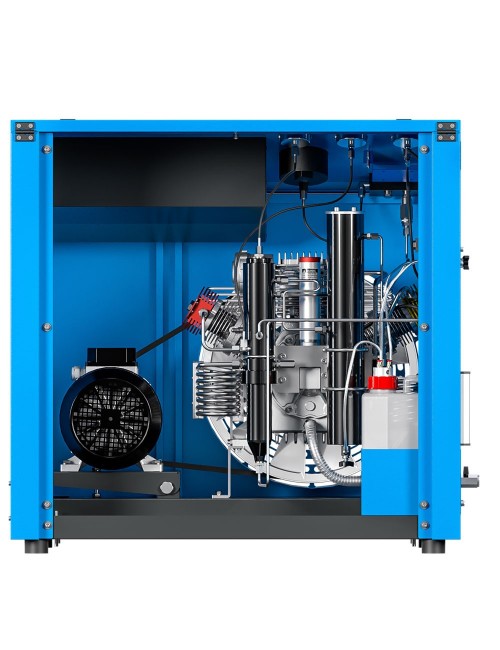

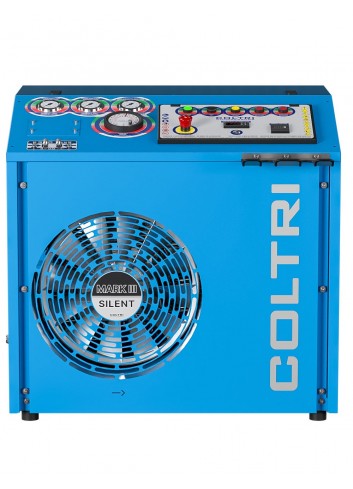

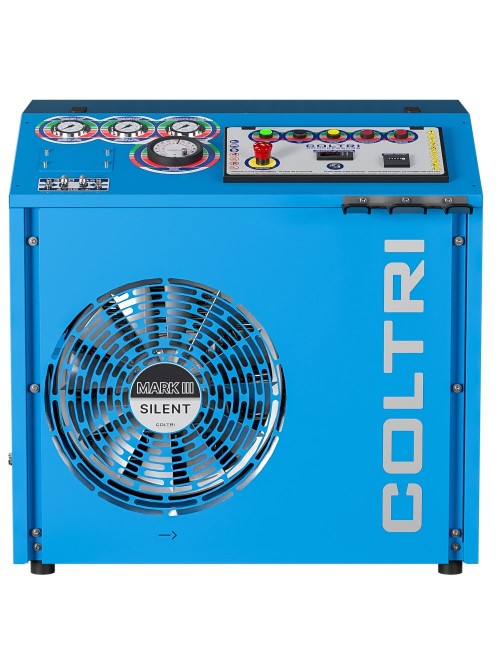

235 - 315 ET MARK III SILENT COMPRESSOR (Threephasic)
Description:
235 ET Mark III Silent breathing air compressor has a charging rate of 235 litres per minute which equates to 8.3 CFM FAD
315 ET Mark III Silent breathing air compressor has a charging rate of 315 litres per minute which equates to 11.1 CFM FAD
STANDARD EQUIPMENT:

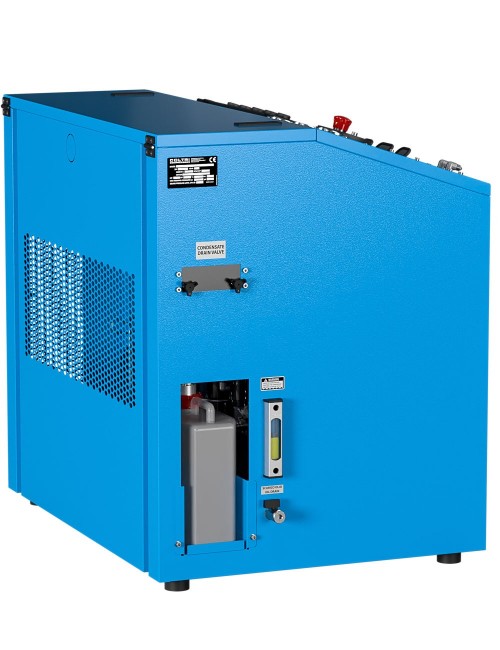

- Automatic condensate drain and autostop

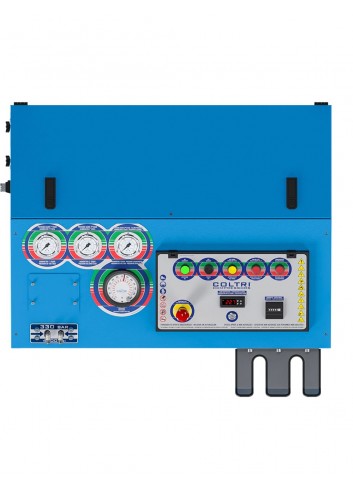

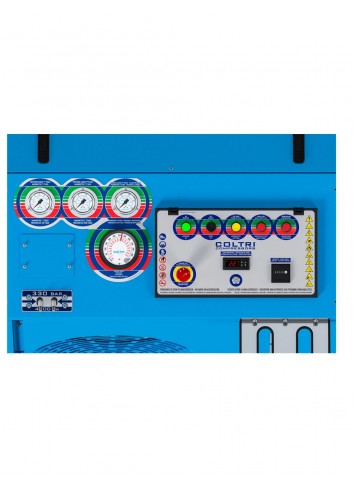

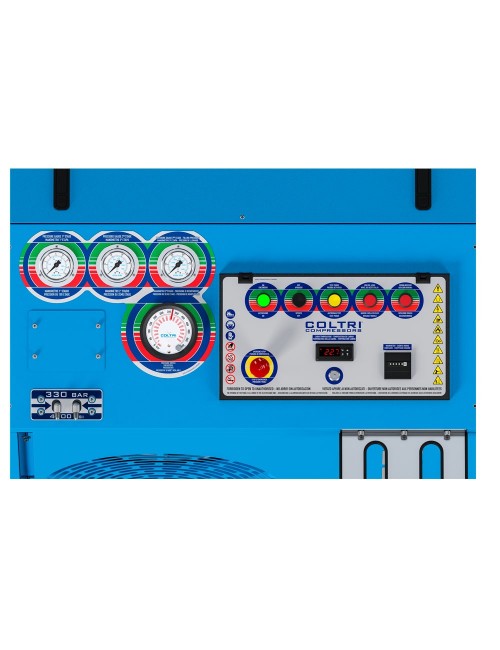

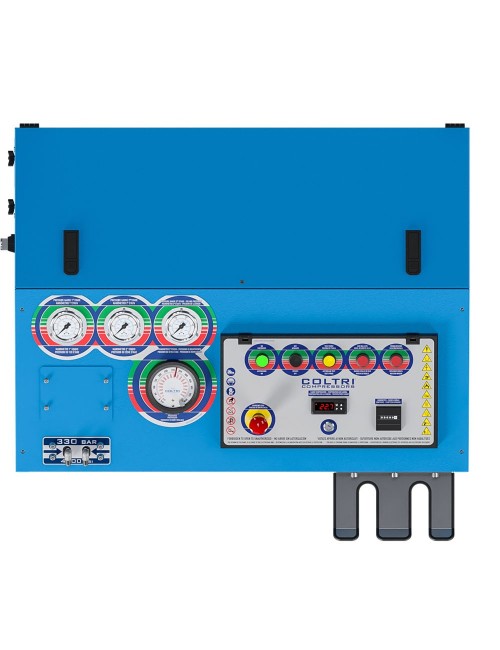

- Electric switchboard with hourmeter
- Interstage pressure gauge
- Cabin temperature thermostat/auto shutoff
- Phase controller that prohibits reverse rotation
- Oil level switch/auto shutoff
- 2 filling hoses 120 cm length
- 2 valves BC for 232 bar version
- 2 valves BC for 300 bar version
PUMPING UNIT |
235 ET |
315 ET |
---|---|---|
CODES |
SC000218 (230V-50Hz) SC000104 (230V-60Hz) SC000200/EVO (400V-50Hz) SC000209/EVO (440V-60Hz) |
SC000103 (230V-50Hz) SC000254 (230V-60Hz) SC000272 (400V-50Hz) SC000271/EVO (440V-60Hz) |
CHARGING RATE |
235 L/min-14,1 m³/h |
315 L/min-18,9 m³/h |
DRIVEN BY |
THREE-PHASE ELECTRIC MOTOR |
THREE-PHASE ELECTRIC MOTOR |
FILLING TIME** |
8’30” |
6’20” |
WORKING PRESSURE |
232 - 330 bar / 3300 - 4700 psig |
232 - 330 bar / 3300 - 4700 psig |
POWER |
4 Kw (230/400 V - 50/60 Hz) (440/480 V - 60 Hz) |
5,5 Kw (230/400 V - 50/60 Hz) (440/480 V - 60 Hz) |
DIMENSION (W x H x D) |
92 x 88 x 61 cm |
92 x 88 x 61 cm |
NET WEIGHT APPROX. |
153 Kg / 337 lbs |
163 Kg / 359 lbs |
NOISE LpA |
75 dB |
76 dB |
RPM |
1370 |
1570 |
**FILLING TIME CYLINDER 10 l-0/200 bar (measured by filling cylinder from 0 to 200 bar ±5%)
