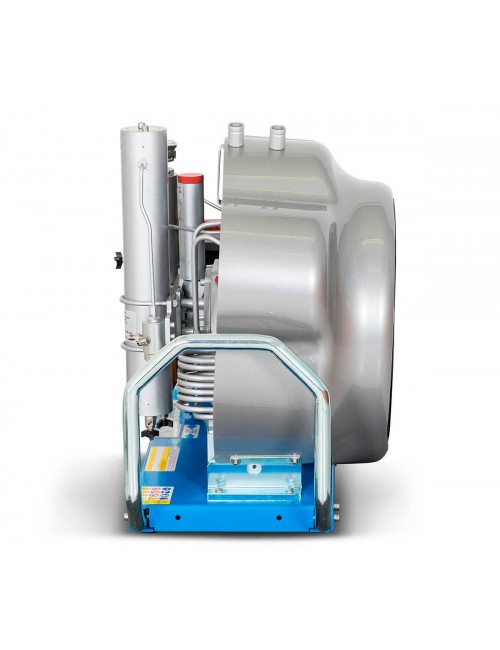

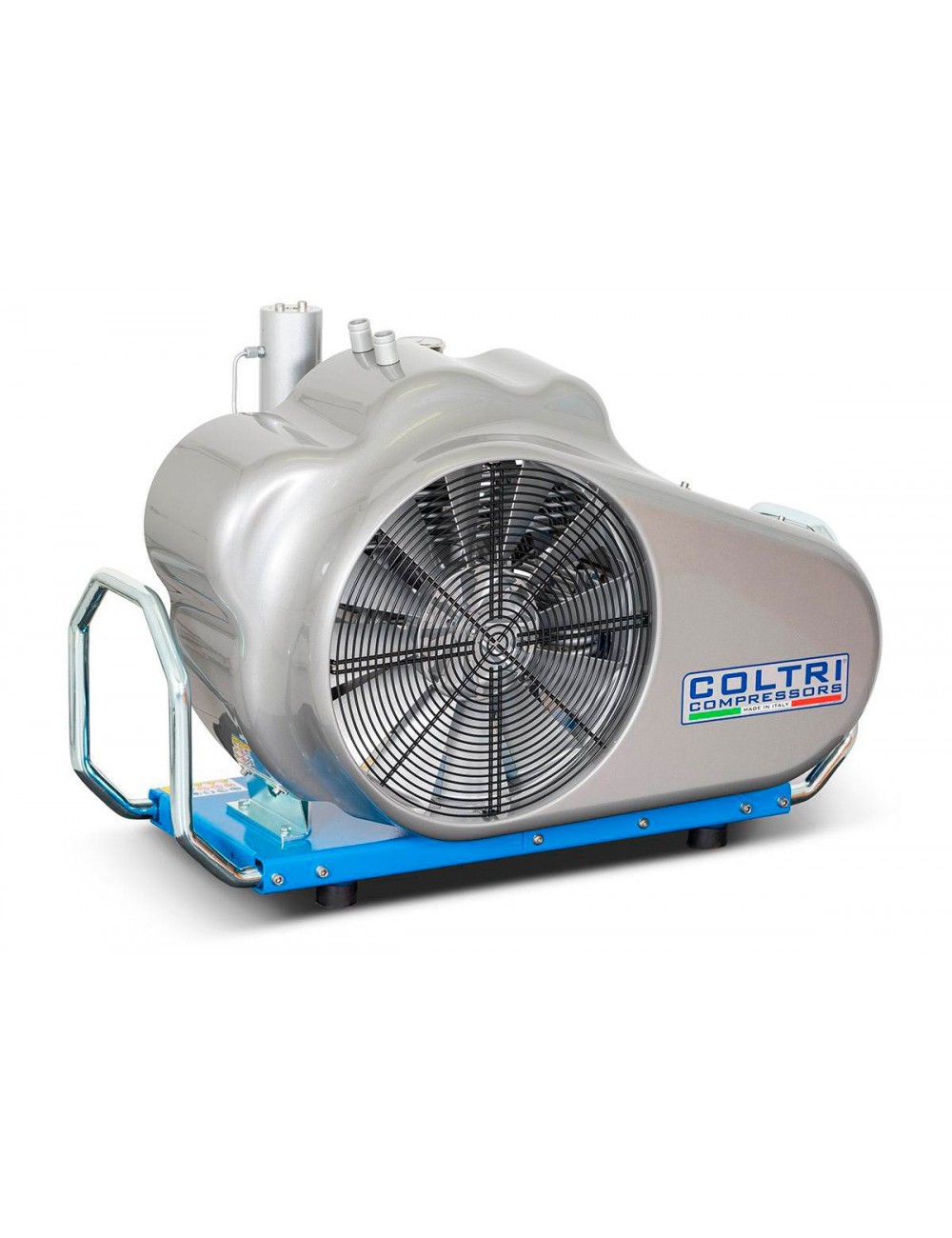

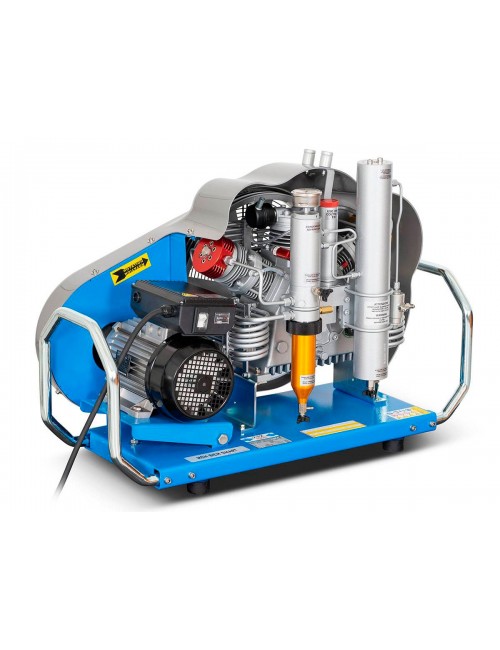

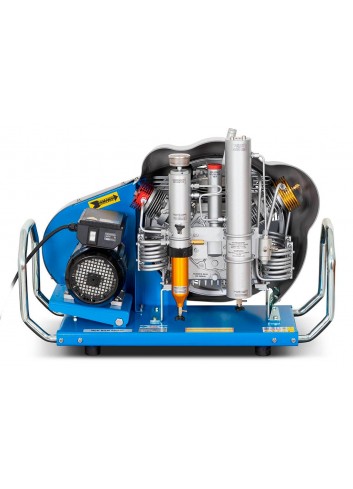

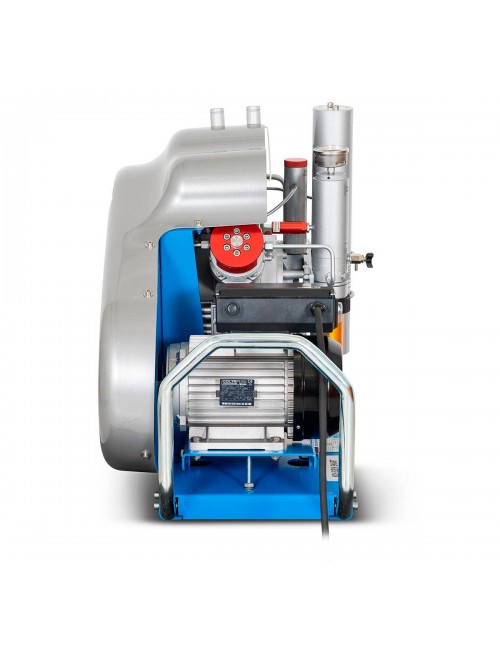

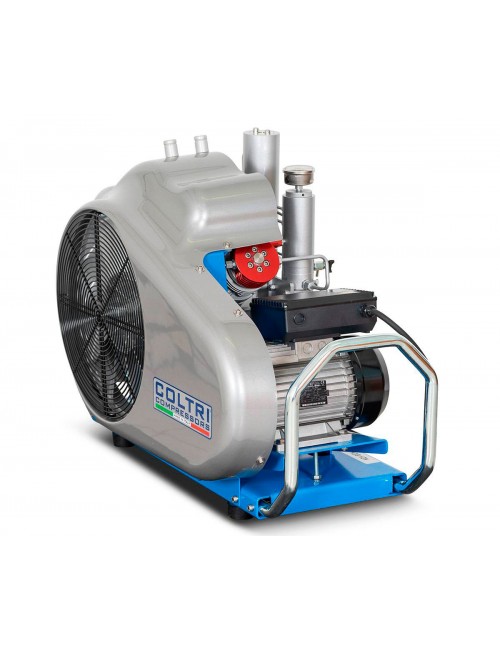

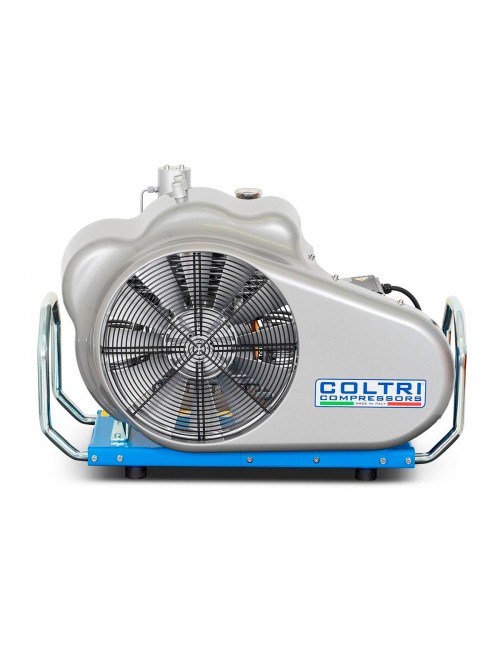

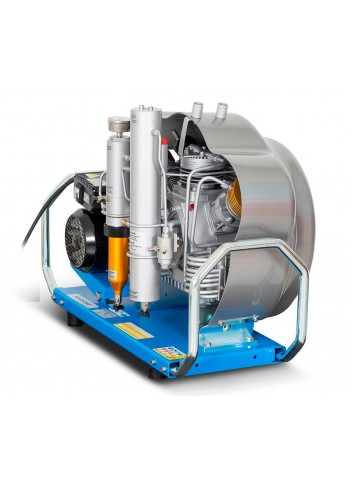

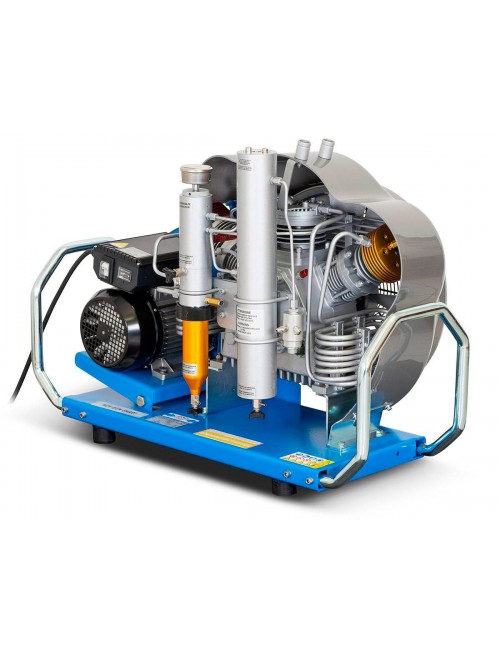

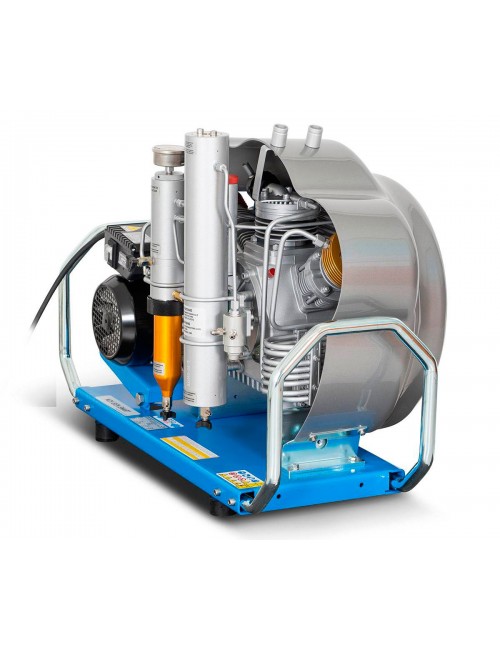

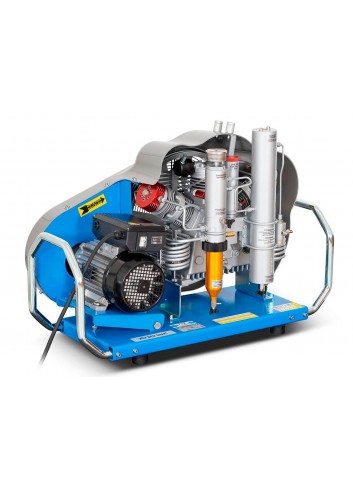

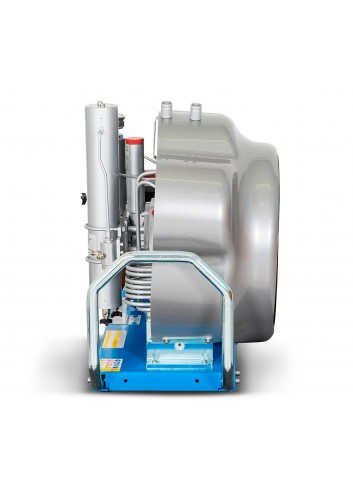

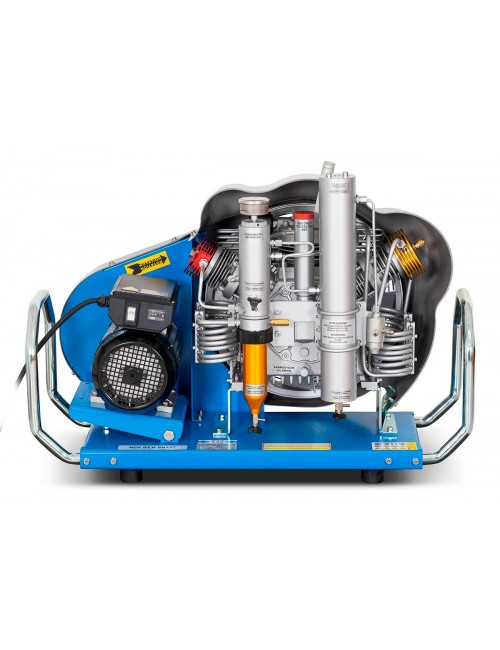

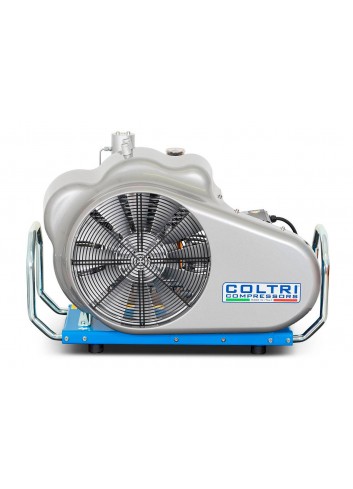

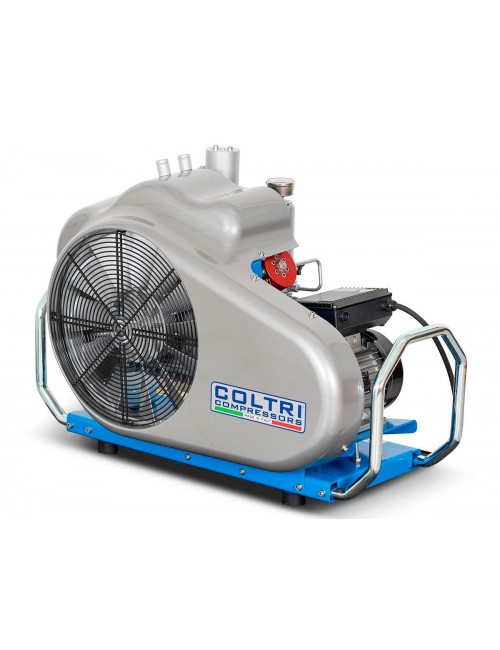

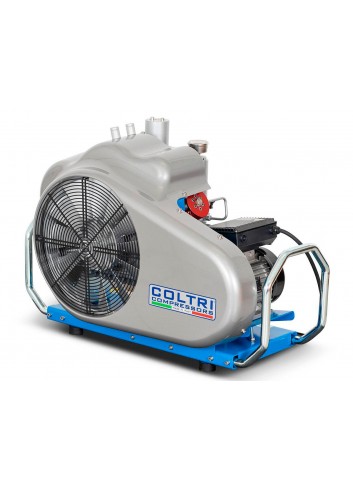

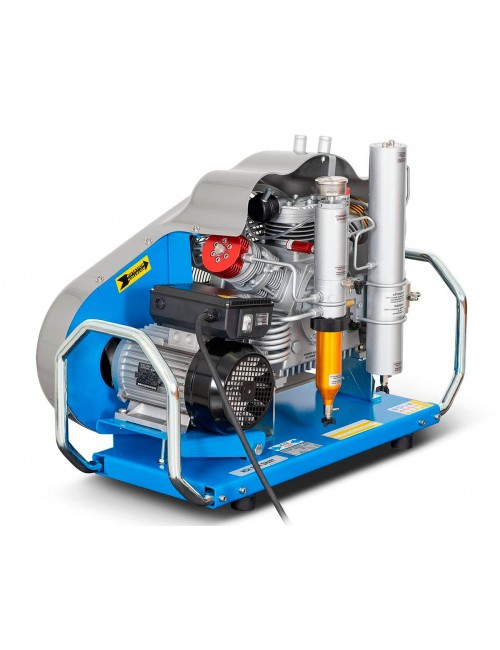

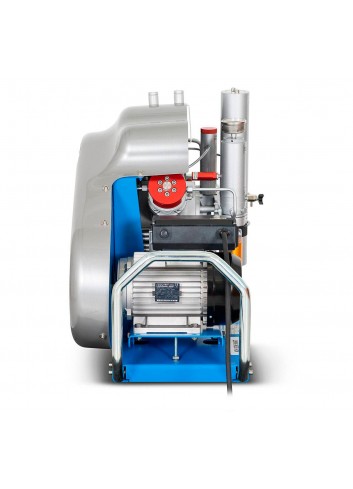

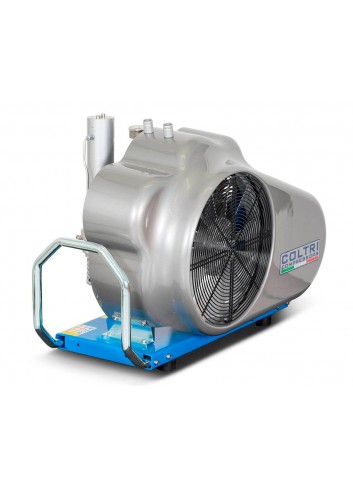

SMART 125-195 EM COMPRESSOR (Monophasic)

Consult with an expert

Description

Producto fuera de stock. Consultar en los próximos: días de entrega

Description:

125 - 195 EMS Smart Breathing Air Compressor has a charging rate of 135 - 195 litres per minute.

Coltri's SMART line of breathing air compressors are STANDARD line evolution, the world's best known and sold. All models are equipped with two connections for high pressure hoses (from 232 to 330 bar), a single-phase or three-phase electric motor, robust pumping units (MCH 8, MCH 13 or MCH 16 depending on the specific model) and a compact frame with handles, suitable for transport.

External refilling panels and an electrical display are available as optional extras, with various automatic features including automatic condensate drainage and an autostop pressure gauge.

PUMPING UNIT	125 EM	195 EM
CHARGING RATE	125 L/min - 8.10 m³/h	195 L/min - 11.70 m³/h
DRIVEN BY	MONO-PHASE ELECTRIC MOTOR	MONO-PHASE ELECTRIC MOTOR
FILLING TIME**	15’	10’
WORKING PRESSURE	232 - 330 bar / 3300 - 4700 psig	232 - 330 bar / 3300 - 4700 psig
POWER	(230/400 V - 50/60 Hz)	(230/400 V - 50/60 Hz)
DIMENSION (Wx H x D)	70 x 1000 x 46 cm 27.56” x 39.37” x 18.11”	70 x 1000 x 46 cm 27.56” x 39.37” x 18.11”
NET WEIGHT APPROX.	93 Kg / 205 lbs	100 Kg / 220 lbs
NOISE LpA	79 dB	79 dB
