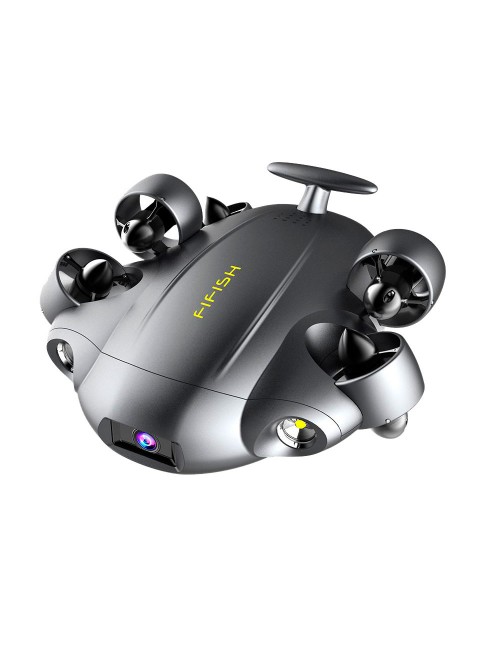

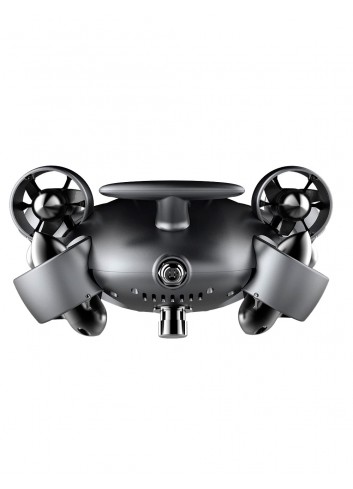

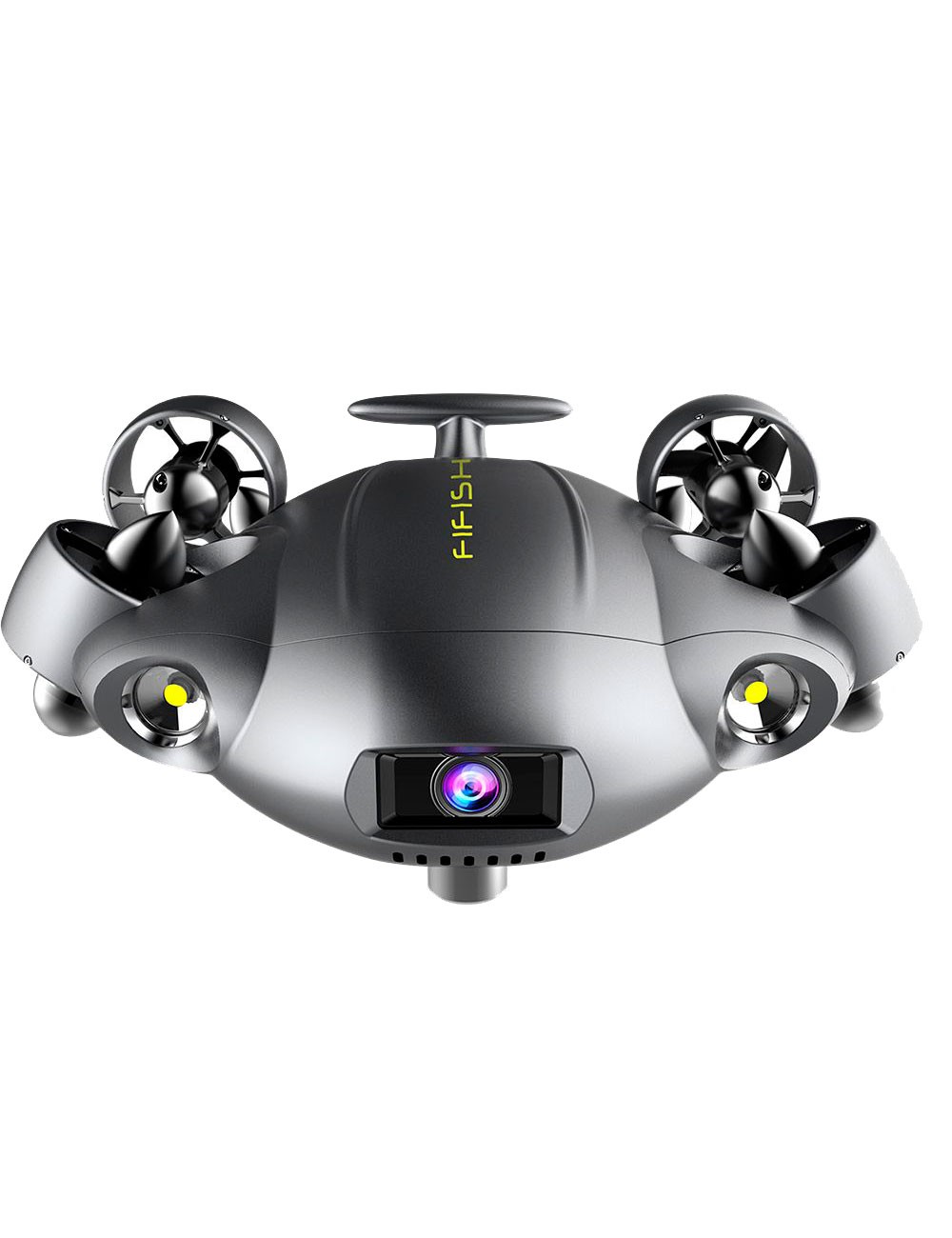

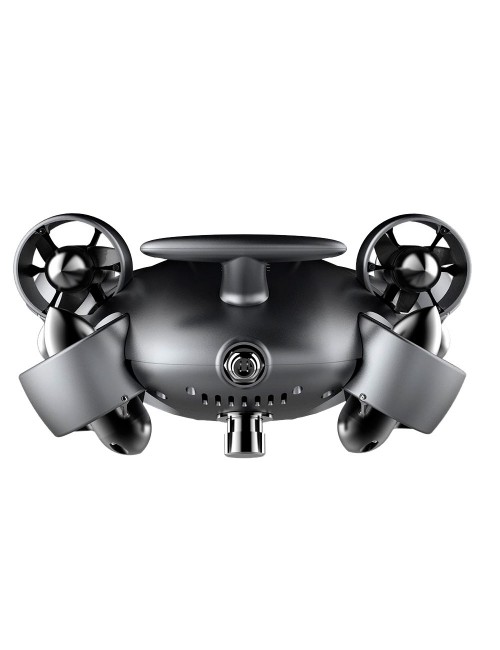

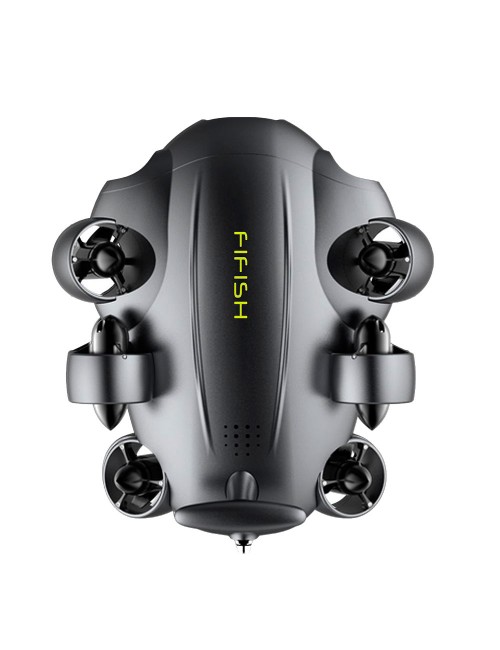

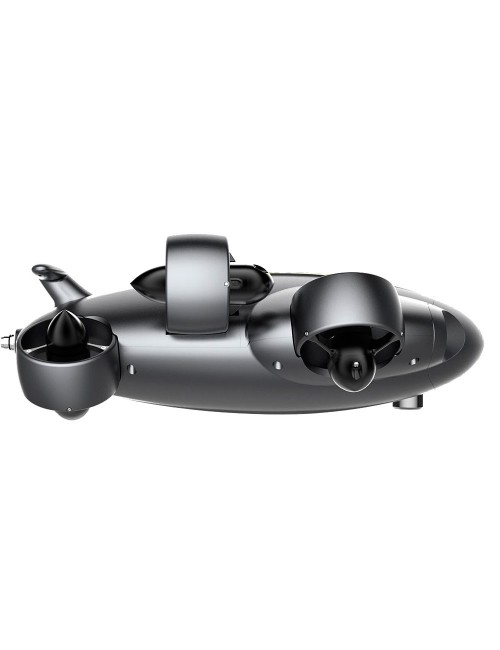

FIFISH V6 EXPERT M200

Reference SBMP100003QYS

Producto fuera de stock. Consultar en los próximos: días de entrega

Specific References

TECHNICAL SERVICE IN SPAIN
Technical service only available for units sold by Casco Antiguo.

FIFISH V6 EXPERT is a professional-class underwater robot and multi-capable tool for enhancing your underwater missions and operations. The V6 EXPERT can be equipped with an onshore power supply system that delivers optimal diving performance and operating time.

Main Features

• 12 Megapixel Resolution
• 166° FOV Wide-Angle Lens
• 4K UHD Camera
• 6000 Lumen LED Lights
• DNG (RAW) Format Support
• 240 FPS Slo-Mo Capture
• Secure SD Card Slot
• 360° Omnidirectional Movement
• Posture Lock
• Depth Lock
• 3 Knots (1.5m/s)
• Q-IF Multi-Tool Extension Interface
• Secure & Fast Charging
• Onshore Power Supply System（Optional）

Multi-Tool Extensions，Unlimited Possibilities (Optionals)

FIFISH V6 EXPERT's interface allows the efficient integration of a wide range of professional-level and industry-specific tools to tackle different scenarios and tasks.

INSPECTION TOOLS

• Q-Camera:
• 2D-Image Sonar
• HDMI Box 2.0
• Controller Sun Hood
• Sports Camera mount
• External Lighting Mount
• Remote control System:

MEASUREMENT TOOLS

• Compass ruler
• Laser scaler
• Distance meter
• Altimeter

NAVIGATION TOOLS

• UQPS- Underwater Quick Position System
• DVL Station Lock
• USBL

MANIPULATOR TOOLS

• Robotic Arm
• Parallel Griper
• Retrieval Hook
• Mort Remover
• Underwater Dozer
•  Fishing Net

WATER QUALITY TOOLS

• Water sampler (100 ml)
• Water sampler (500 ml)
• Disolved Oxygen sensor
• Salinity sensor
• Turbidity sensor
• pH sensor
• Mud sampler

Long Lasting Power, High Performance & Reliability:

Seamless and quick deployment of energy packs for smooth, lengthy, and uninterrupted diving sessions.

Upgraded Build & Performance

• Protection against corrosion and sand
• Complete freedom of movement in the aquatic world

• Against the flow of 1m/s water currents, the ROV can still maintain a diving time of ~1.5 hours.

Streamlined, Robust & Reliable Design:

• 360° protection of core components
• Rugged and flexible Kevlar cable for fast deployment and recovery

VR Intelligent Head Tracking:

FIFISH V6 EXPERT applies unique sensory controls that provide the user a truly immersive underwater experience from the ROV's first-person perspective. Through the smart VR goggles, take the QYSEA patented full 360° directional and posture control of the V6 EXPERT simply by rotating the head. This intelligent feature is accurate, easy to use, and a breakthrough in underwater exploration.

4K Low Noise Shooting for Cinematic Clarity:

The FIFISH V6 EXPERT comes equipped with a UHD 4K underwater camera lens, along with a 166° ultra-wide field of view, 12-megapixel resolution, 240 FPS slow-motion filming capabilities, and much more. V6 EXPERT's vision enhancement algorithms bring out the vibrancy of the underwater environment, so you can capture every detail needed in your aquatic operations and missions.

• 166° FOV Lens
• 240FP SloMo Capture
• 4K UHD Video Quality
• DNG (RAW) Format Support
• 12 Megapixel Resolution
• F/2.5 Aperture

Enhanced Lighting for Optimal Clarity

The FIFISH V6 EXPERT comes equipped with a pair of ultra-bright 6000 lumen LED lights alongside its 4K UHD camera, delivering brilliant, vivid, and vibrant images and footage within even the darkest spaces.:

Micro SD Card，Fast Transfer & Storage

The SD card can be taken out of the V6 EXPERT for data exporting with ease. The ROV comes equipped with a 128GB card for ample space and storage of high-definition films and images.

Powerful Battery, Quick Charge Enabled

The V6 EXPERT has a 14400mAh super-capacity battery the provides long-lasting battery life, quick charging capabilities, as well as multiple safety and security mechanisms.

• Q-CHARGE: 90% Capacity in 1 Hour

Light, Portable & Worry Free

FIFISH V6 EXPERT helps your underwater operations be organised and worry-free. Its compactness allows for easy transportation to wherever your missions take you, and its efficient power system delivers you continuous and uninterupped diving sessions.

Technical Features:

ROV

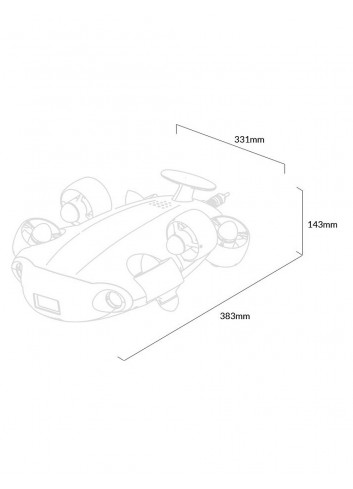

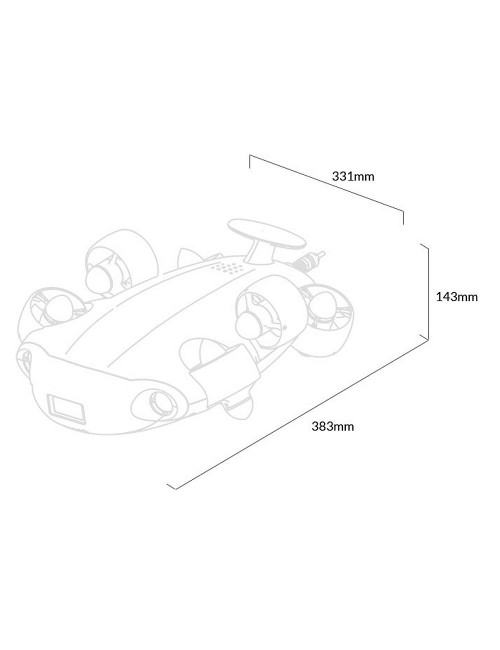

• Dimension:383 mm*331 mm*143 mm (15 in*13 in*5 5/8 in)
• Weight: 4.6 kg (8 5/8 lbs)
• Thrusters: 6 (4*Vector + 2*Horizontal)
• Maneuverability: 6 DOF (Degree of Freedom):
• Moving: left & right, up & down, forward & backward, Rotation: 360° pitch, 360° roll, 360° yaw
• Posture Lock™ [1]:Able to lock the ± 0.1° pitch angle or ± 0.1° roll angle and moving in any direction (See note 1)
• Hovering Accuracy: Able to keep the ROV suspending in ± 1 cm
• Speed: Maximum 3 knots (1.5 m/s) in still water
• Depth Rating: 100 m (328 ft)
• Operating Temperature Range[2] : -10 °C ~ 60 °C (14 °F ~ 140 °F)
• Battery: Rated Capacity 9000 mAh / 156 Wh

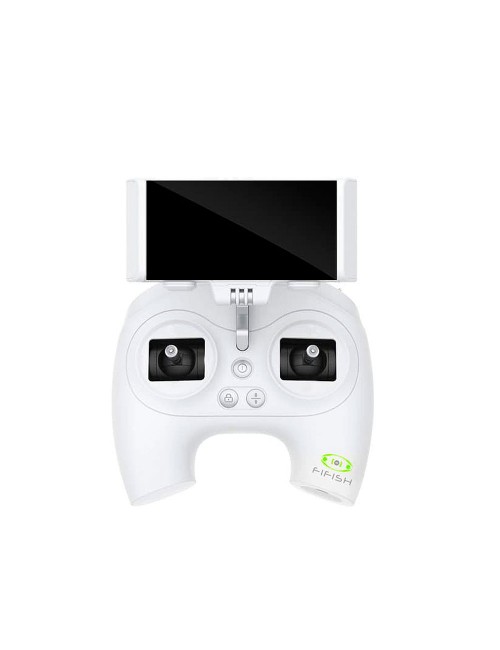

REMOTE CONTROLLER:

• Wireless: Wi-Fi supported
• Battery Life: Up to 4 hours
• Copy Micro SD card Slot & Download: Format in FAT32 (no greater than 32GB) | Format in EXFAT (no greater than 64GB)

THETHER:

• Length: Standard 200 m on Spool - Customized Accepted
• Breaking Force: 80 kgf

APP:

• System: iOS 10.0.0 or later | Compatible with iPhone 6S or later | Android 5.0 or later | Compatible with Samsung S7 or later, Huawei Mate 9 or later, Mi Mix 2 or later
• LIVE-Streaming: 720P, 25/30fps | 480P, 25/30fps
• Stream User NO.: Max 2 Devices

CAMERA:

• Sensor: 1/2.3” SONY CMOS | Effective Pixels: 12MP | ISO Range 100-6400 in Auto / Manual
• Lens: Field of View 166° | Aperture f/2.5 | Minimum Focusing Distance 0.4 m
• Electronic: 5~1/5000 second
• Shutter Speed: Burst shooting 1 / 3 / 5 / 7 / 10 frames
• White Balance: 2500K ~ 8000K (WB) Auto / Manual
• Exposure Compensation: - 3 EV ~ + 3 EV
• Photo Resolution: 4:3: 4000 x 3000
• Photo Format: JPEG, DNG
• Video Resolution: 4K UHD: 25/30 fps | 1080P FHD: 25/30/50/60/100/120 fps | 720P HD: 25/30/50/60/100/120/200/240 fps
• Video Format: MPEG4- AVC/H.264, HEVC/H.265
• Stabilization: EIS (Electronic Image Stabilization)
• Internal Storage : 128 GB standard

LED BEAMS:

• Brightness: 6000 lumen
• CCT: 5500 K (Correlated Color Temperature)
• Beam Angle: 120°
• Dimming: 3

CHARGER AC/ADAPTER:

• ROV: Input: 100-240 V, 50/60 Hz，1.3 A MAX | Output: 12.9 V ⎓ 6A
• RC: Input: 100-240 V, 50/60 Hz，0.5 A MAX | Output: 5 V ⎓ 3A

Inside the Box:

• 1 x Fifish V6 Expert
• 1 x Industrial case
• 1 x 100 m Tether & Spool
• 1 x Remote Controller
• 1 x VR Googles
• 2 x Spare propellers
• 1 x ROV Charger
• 1 x RC Charger
