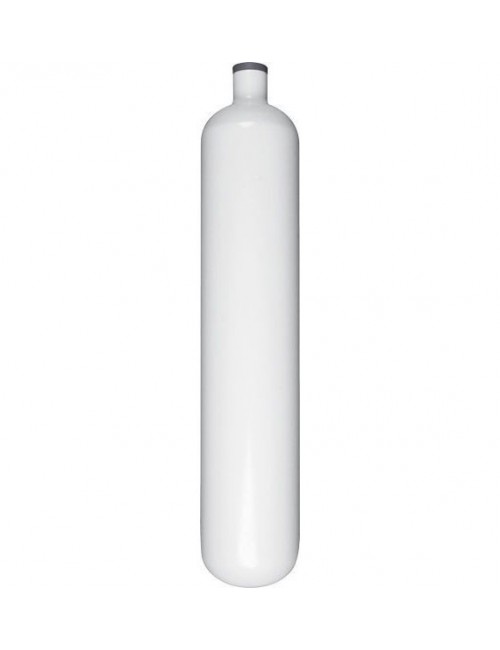

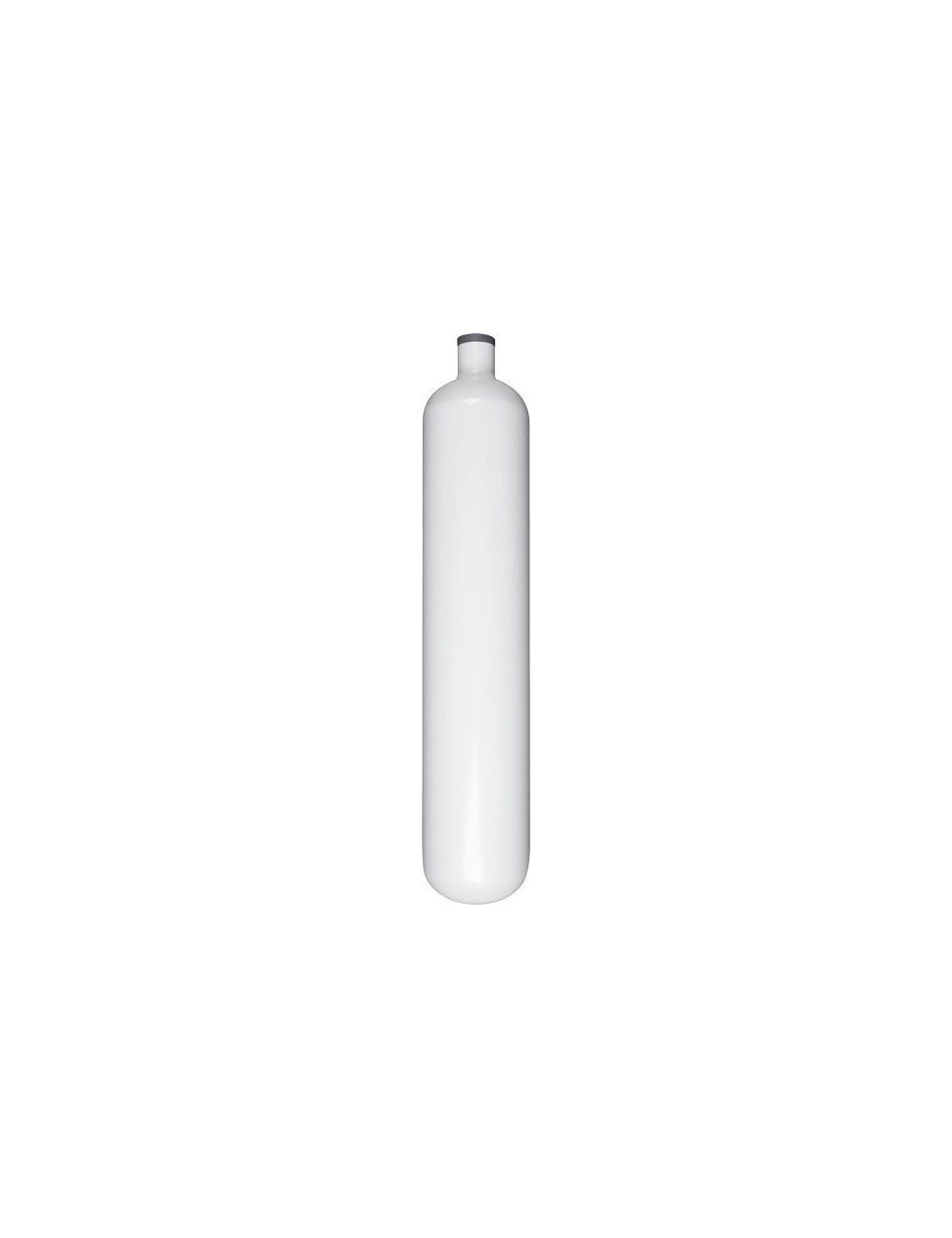

3L STEEL TANK 232 BAR SINGLE VALVE 100 MM

Reference TKBO0503S16116677BTS

Producto fuera de stock. Consultar en los próximos: días de entrega

Data sheet

TANKS AND VALVES

STEEL

CAPACITY

3 L

PRESSURE

232 BAR

Specific References

Description:

The range of steel cylinders offered by BtS Europa AG is produced by Eurocylinders System AG (ECS). ECS is one of the biggest and most efficient manufacturers of high pressure steel cylinders in Europe with an annual output of more than 500,000 cylinders. ECS manufactures on two production lines at their plant in Apolda, Germany. Cylinders are forged from 34CrMo4 steel.

The cylinders necks are M25/2 threaded according to EN144 norm. After internal and external shot-blasting, before powder coating (primary + finish), the cylinders are warm dipped in zinc. CE marking according to PED 97/23/CE. Manufactured with seamless convex (rounded bottom) or concave (flat bottom) basis.

Features:

• 232 bar

• 100 mm diameter

• M25/2 thread

• 4,7 kg weight
