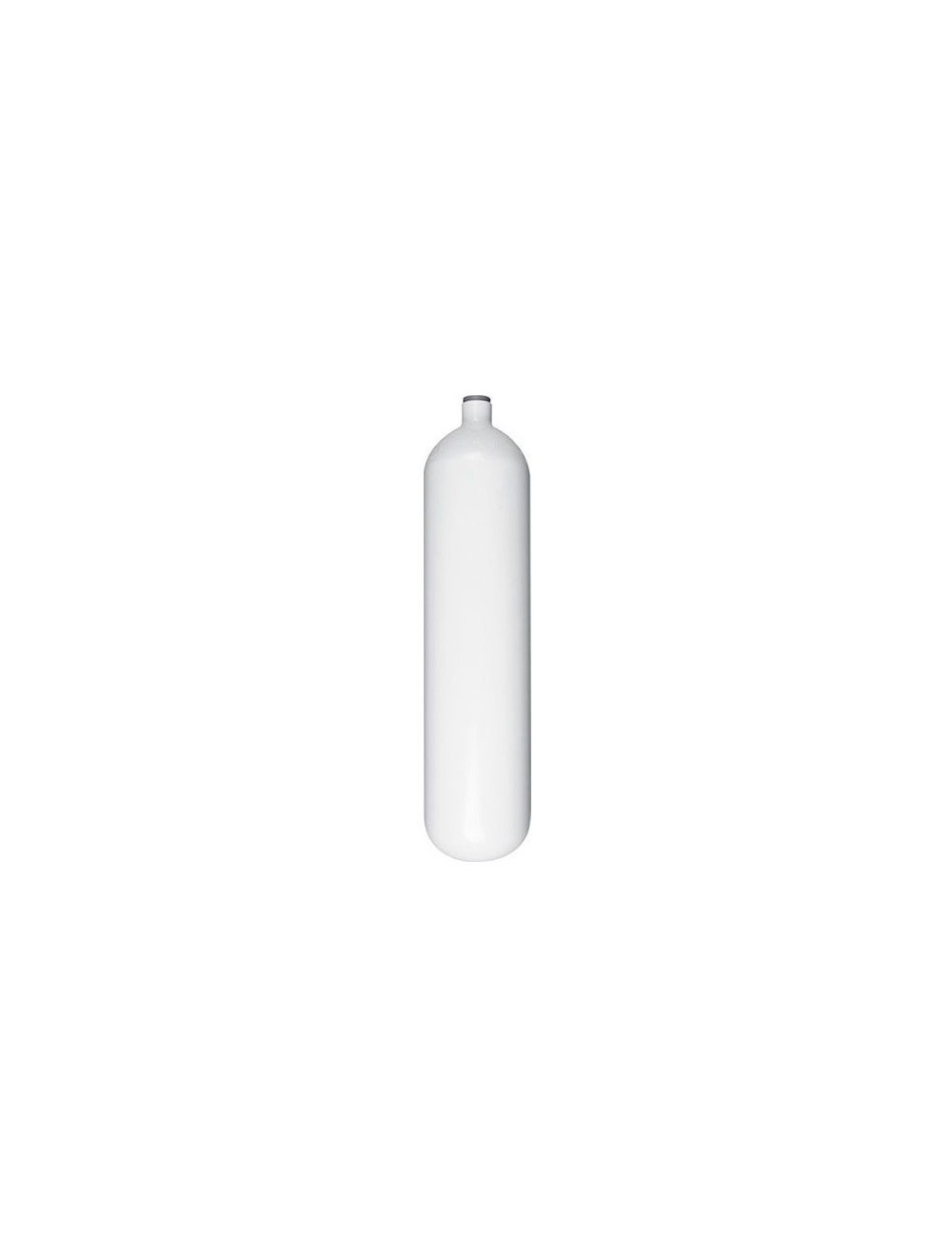

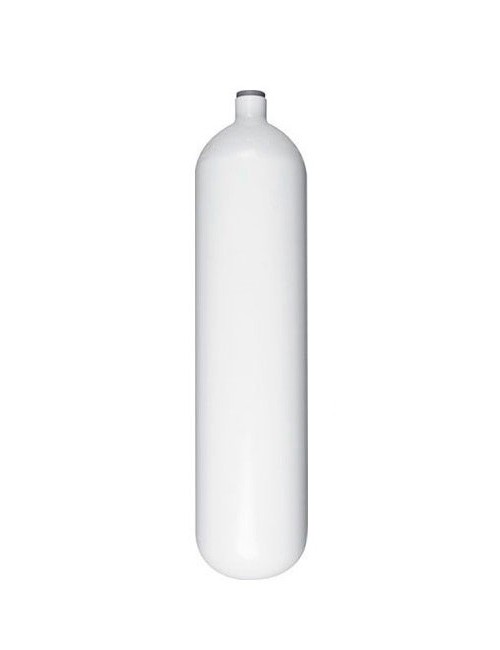

12 L STEEL TANK 232 BAR NO VALVE
TKBO050316116603BTS

12 L STEEL TANK 232 BAR NO VALVE

€243.00
0%

TKBO050316116603BTS

12 L STEEL TANK 232 BAR NO VALVE

Consult with an expert
€243.00
Quantity

Producto fuera de stock. Consultar en los próximos: días de entrega

Data sheet

STEEL
12 L
232 BAR
TANKS

Specific References

Description:

The range of steel cylinders offered by BtS Europa AG is produced by Eurocylinders System AG (ECS). ECS is one of the biggest and most efficient manufacturers of high pressure steel cylinders in Europe with an annual output of more than 500,000 cylinders. ECS manufactures on two production lines at their plant in Apolda, Germany. Cylinders are forged from 34CrMo4 steel.

The cylinders necks are M25/2 threaded according to EN144 norm. After internal and external shot-blasting, before powder coating (primary + finish), the cylinders are warm dipped in zinc. CE marking according to PED 97/23/CE. Manufactured with seamless convex (rounded bottom) or concave (flat bottom) basis.

Features:

  • 232 bar
  • 171 mm diameter
  • 685 mm lenght
  • M25/2 thread
  • 14,5 kg weight
  • Valve NOT included
