MAX ROB BOOSTER 5-30 STATION

Reference TKBS0101ROB530STSTC

Producto fuera de stock. Consultar en los próximos: días de entrega

Specific References

Description:

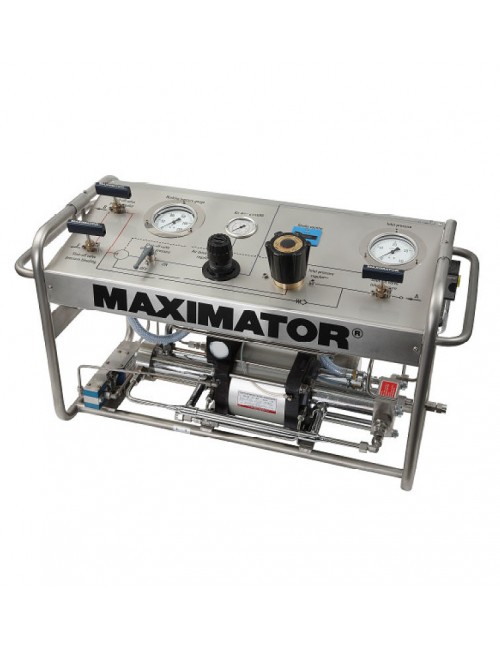

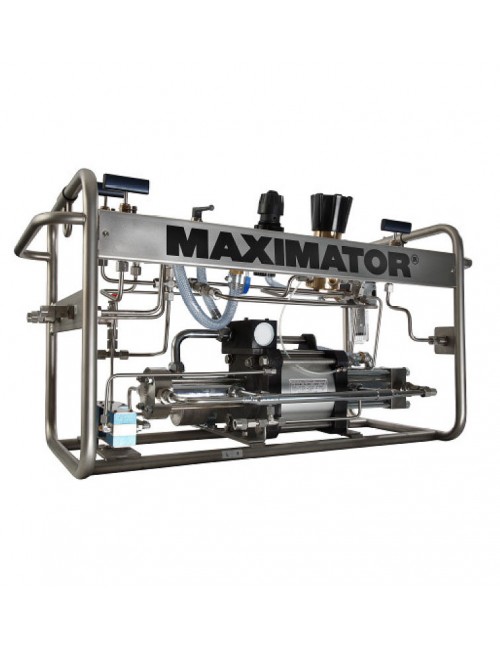

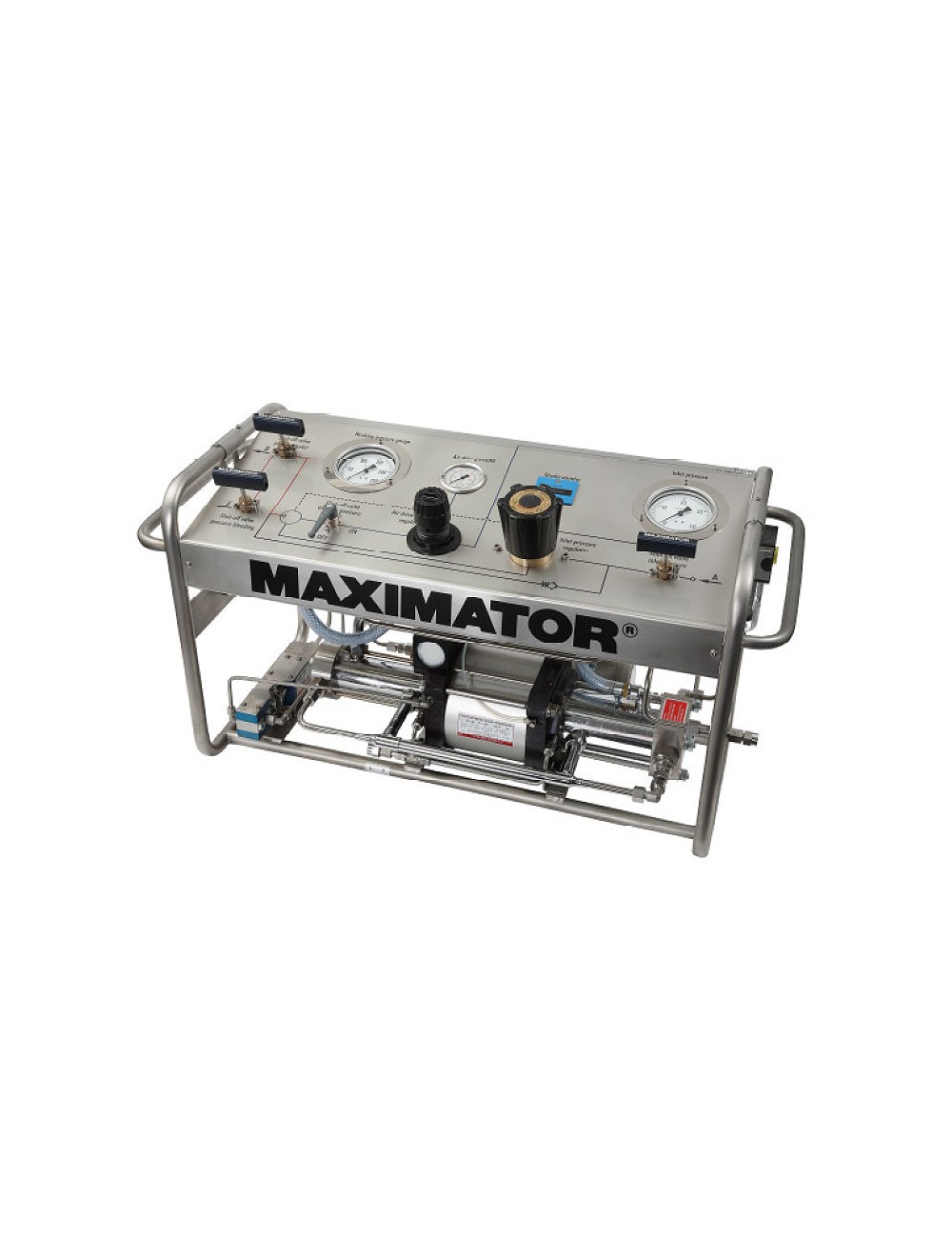

The MAXIMATOR-Booster station will be used for the compression of breathing air and oxygen. Oxygen bottles for the diving industry will be filled up to 200 bar. The complete Station is installed in a stainless steel protection frame. All operation devises are installed in a panel.

Features:

• Drive source: Oilfree compressed air 1-10 bar

• Working pressure at 10 bar air drive pressure: 200 bar

• Pressure ratio: 1:5 / 1:30

• Temperature max.: 60°C

• Weight: 54 Kg

• Dimensions (H x D x W): 520 x 410 x 920 mm
